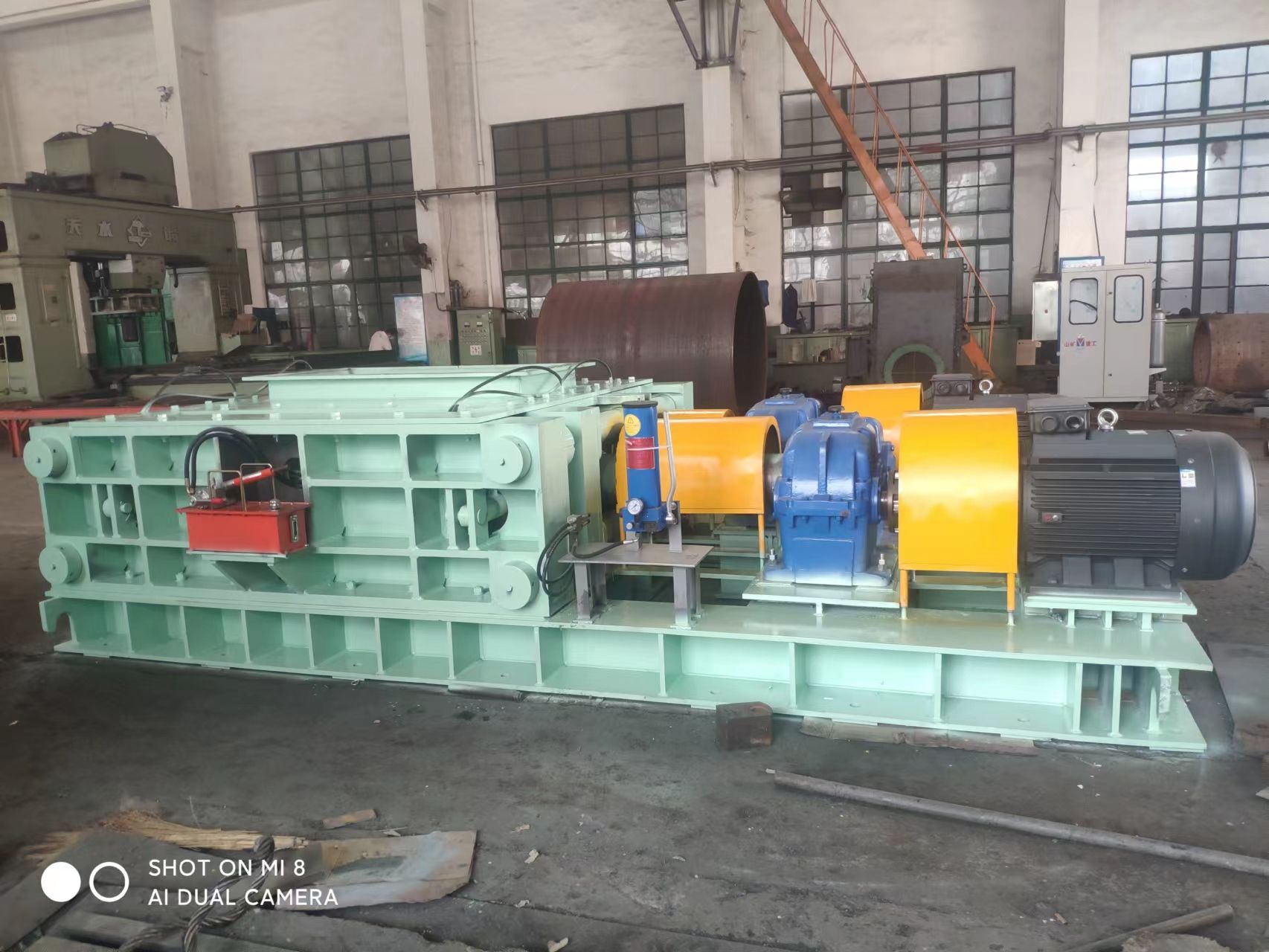

Hydraulic two-tooth roller crusher 500×1500 mm
Hydraulic Double Tooth Roll Crusher is suitable for crushing raw coal in coal mine or coal preparation plant, and can also be used for crushing other medium and low hard brittle materials. Hydraulic adjustment, tooth roller bearing centralized lubrication. Optimization design of tooth shape, tensile shear selection crushing, high efficiency and low consumption, uniform grain output. The machine also has the advantages of small volume, low noise, simple structure and convenient maintenance.
1. Scope of application
The crusher is designed for crushing bulk and brittle materials with a tensile strength of at least 100 MPa, such as cold coke and coal lump.
2. Main technical parameter
2.1 Roll diameter: ￠500mm
2.2 Roll working length：1500mm
2.3、Roll speed： 64/67.8 rpm
2.4、Max. feed size：300mm
2.5、Max. discharge size： ≤70mm
2.6 Capacity: 150 t/h
2.7 Engine
Type YB3-250M-4
Power 37 kW × 2
Voltage 380V/660V
Power supply frequency 50HZ
2.8、Gearbox
Type: KD15-55KW 2 sets
Transmission power: 55 kW
2.9 Overall dimensions (L×W×H): 2900×2175×856
2.11、Machine weight: 12400kg
