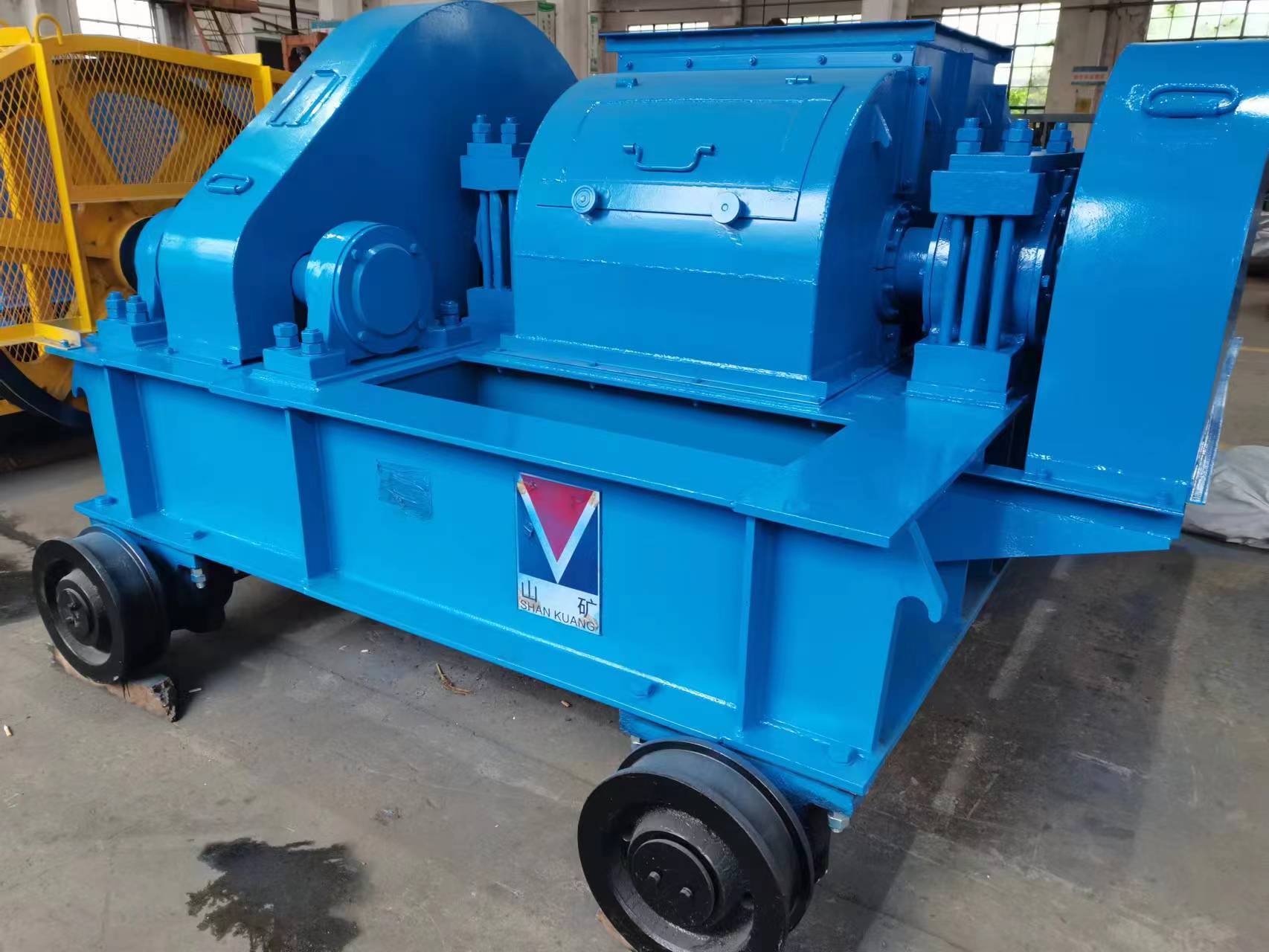

Roller crusher with two teeth 500×1000 mm
The double tooth roller crusher is designed for crushing hard coal in a coal mine or beneficiation plant, and can also be used for crushing other medium and low hardness brittle materials. Hydraulic adjustment, central lubrication of toothed roller bearings. Tooth shape design optimization, tensile shear crushing selection, high efficiency and low consumption, uniform grain yield. The machine also has the advantages of small volume, low noise, simple structure and convenient maintenance.
Double-tooth roller crusher is a type of double-roller machine, especially suitable for sinter, coal, cement, silicate, glass, ceramics and other industries, mainly used for crushing brittle materials below medium hardness, especially in fine ore operation. This crusher uses two rollers rotating opposite each other to control the particle size of the material by adjusting the gap between the rollers to realize material crushing. The surface of the rolls of a two-tooth roll crusher can be with large or fine teeth. The design takes into account the material size requirements, which can be adjusted for production, which is very suitable for processing brittle and soft materials.
Name |
Parameter |
|
Rotor length X（mm） |
Φ450×500 |
|
Max. feed size（mm） |
≤200 |
|
Change the size of the unloading gate（mm） |
≤100 |
|
Capacity（m³/h） |
20-55 |
|
Engine |
Type |
Y180L |
Power（KW） |
15 |
|
revolution（r/min） |
64 |
|
Size(L*W*H)（mm） |
2208×2048×912 |
|
Equipment weight (without engine)（Kg） |
3645 |
|
