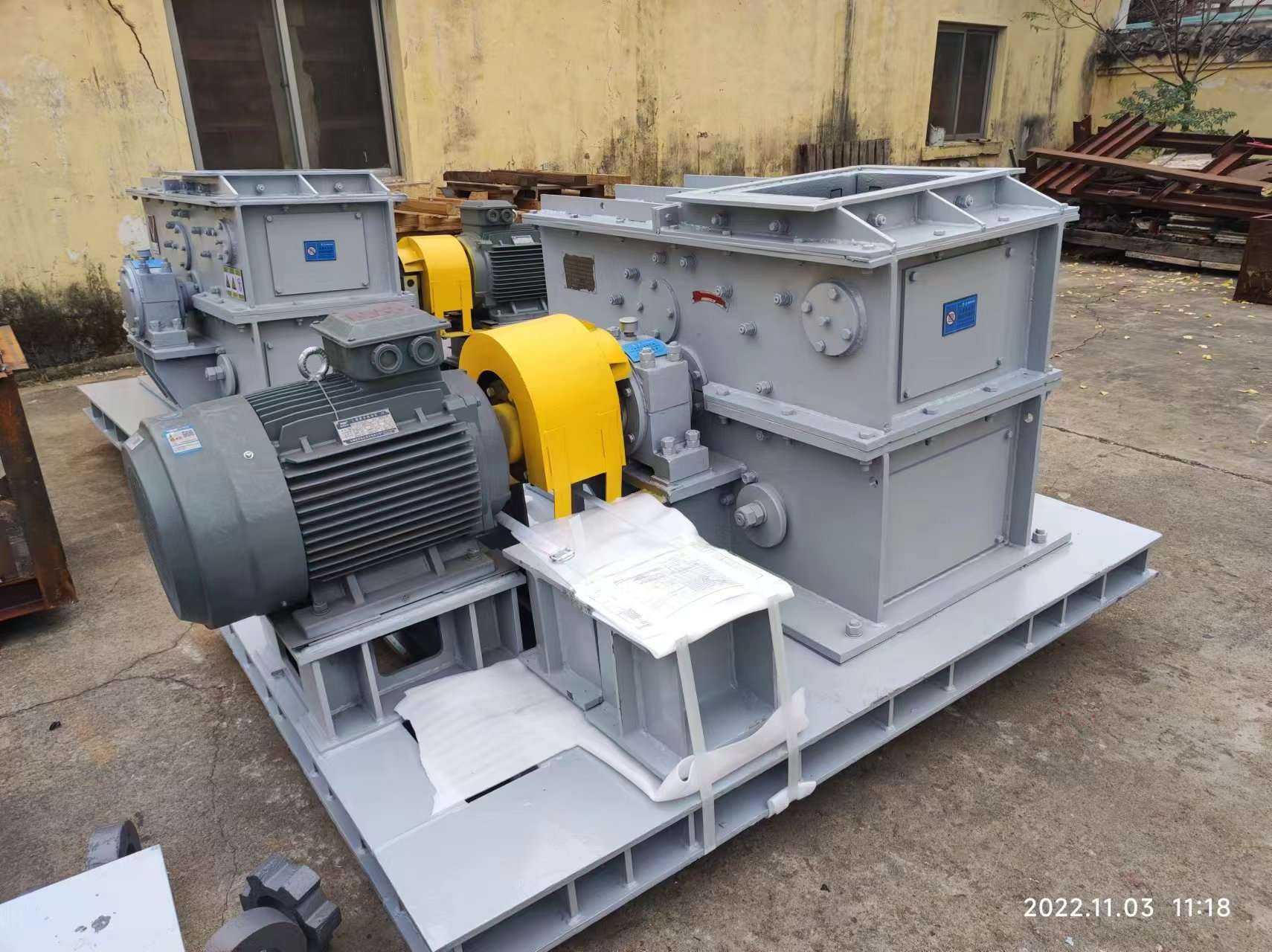

Ring hammer crusher 600×400 mm
PCH 0604 type ring hammer crusher is designed for crushing all kinds of brittle materials, with maximum strength against pressure not more than 12MPa and surface moisture content within 9%, such as coke coal, coal, shale, slag, loose limestone, etc., .
The ring hammer crusher is suitable for crushing all kinds of brittle materials such as coal, coal rock, coking coal, slag, shale, loose limestone, etc. The compressive strength of the material should not exceed 10 MPa, and the surface humidity should not exceed 8%.
Name |
Parameter |
|
Rotor length X（mm） |
Φ600×400 |
|
Max. feed size（mm） |
200 |
|
Change the size of the unloading gate（mm） |
30 |
|
Capacity（m³/h） |
22-33 |
|
Engine |
Type |
Y180L—8 |
Power（KW） |
18.5 |
|
revolution（r/min） |
970 |
|
Size(L*W*H)（mm） |
1050×1270×800 |
|
Equipment weight (without engine)（Kg） |
1430 |
|
