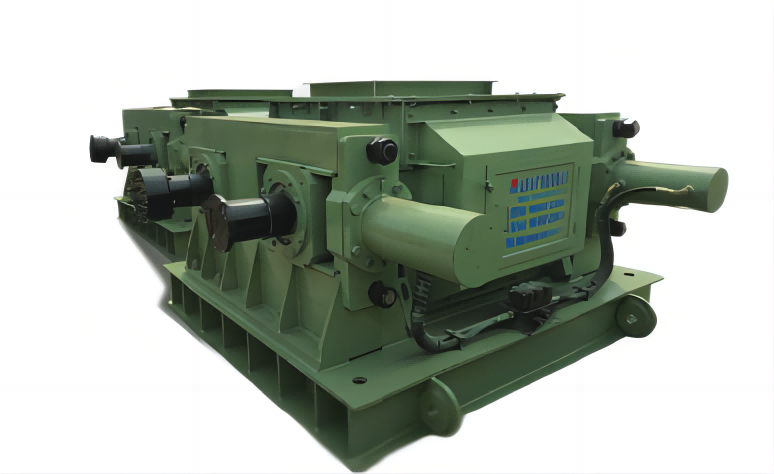

Hydraulic two-roll crusher 1200×1000 mm
The hydraulic roller crusher has a simple structure, takes up little space, and is more convenient to operate and maintain. The interior is equipped with a dustproof plate, the sealing is good to avoid the splashing of small materials, less dust, low operating noise, the working environment has been greatly improved.
Hydraulic double roll crusher is controlled by hydraulic device, which is mainly used for crushing bulk and soft materials such as coke powder, anthracite and so on.
The advantages of the two-tooth roller crusher are the use of long teeth, small diameter rolls, spiral teeth, multi-disc four-tooth structure, which can process powdery and granular materials, and has low water content requirements. The design is usually driven by two motors, the kinetic energy is more powerful, the saving is 45% of the same power. The finished product has a cubic shape, low needle content, no internal cracks, fine granules.
1.Roller diameter：φ1200mm
2.Effective roller length：1000mm
3.Max. feed size：≤15mm
4.discharge size ≤10mm
5.roller revolution：
normal working condition： ~132r.pm。
6.capacity： ~60 t/h
7.matched motor： 1TL0003-2CB2
Power：55KW×2
Turnover： 1480r.pm
Voltage： 380V
8. Gearbox： ZLY280-11.2-Ⅱ/Ⅲ
9.Dimensions (without hydraulic device)：
4793×3565×1950 mm
Total machine weight： ~ 34370 kg
