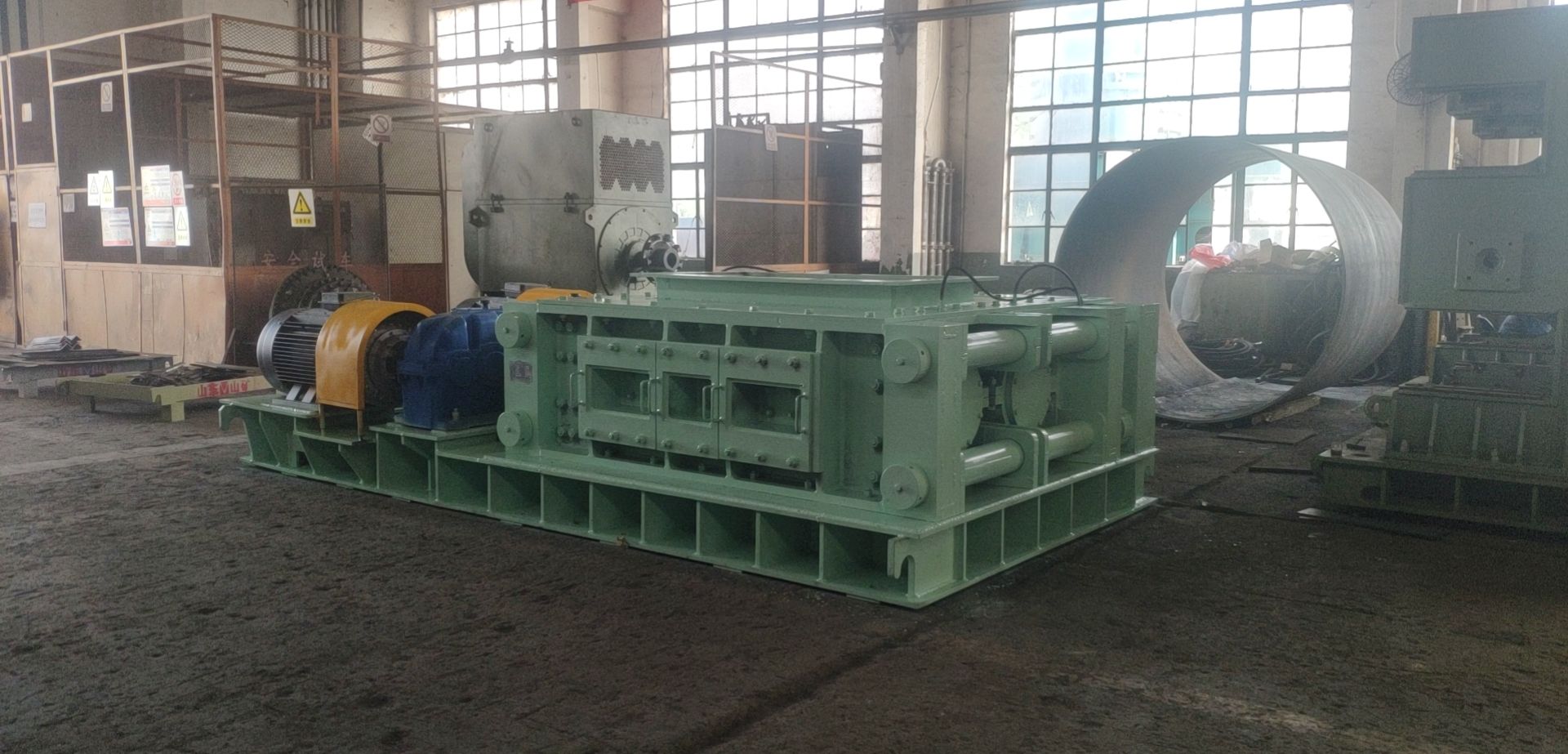

Hydraulic two-tooth roller crusher 700×1500 mm
The hydraulic double teeth roller crusher is designed for crushing hard coal in a coal mine or beneficiation plant, and can also be used for crushing other medium and low hardness brittle materials. Hydraulic adjustment, central lubrication of toothed roller bearings. Tooth shape design optimization, tensile shear crushing selection, high efficiency and low consumption, uniform grain yield. The machine also has the advantages of small volume, low noise, simple structure and convenient maintenance.
1、Application
The crusher is designed for crushing bulk and brittle materials with a tensile strength of at least 100 MPa, such as cold coke and coal lump.
2、Main Specifications
2.1 Roll diameter ￠700 mm
2.2 Working length of the roller 1500 mm
2.3, Roller rotation 75 rpm
2.4、Max. feed size 600 mm
2.5、Max. discharge size ≤80mm
2.6 Capacity 120 t/h
2.7 Engine
Type： YFBX3-225M-4
Power：45kw×2
Voltage： 380V
2.8、Gearbox
ZLY224 i=20
2.9 Overall dimensions (L×W×H): 4890×2996×1230
2.10、Machine weight：22000kg
