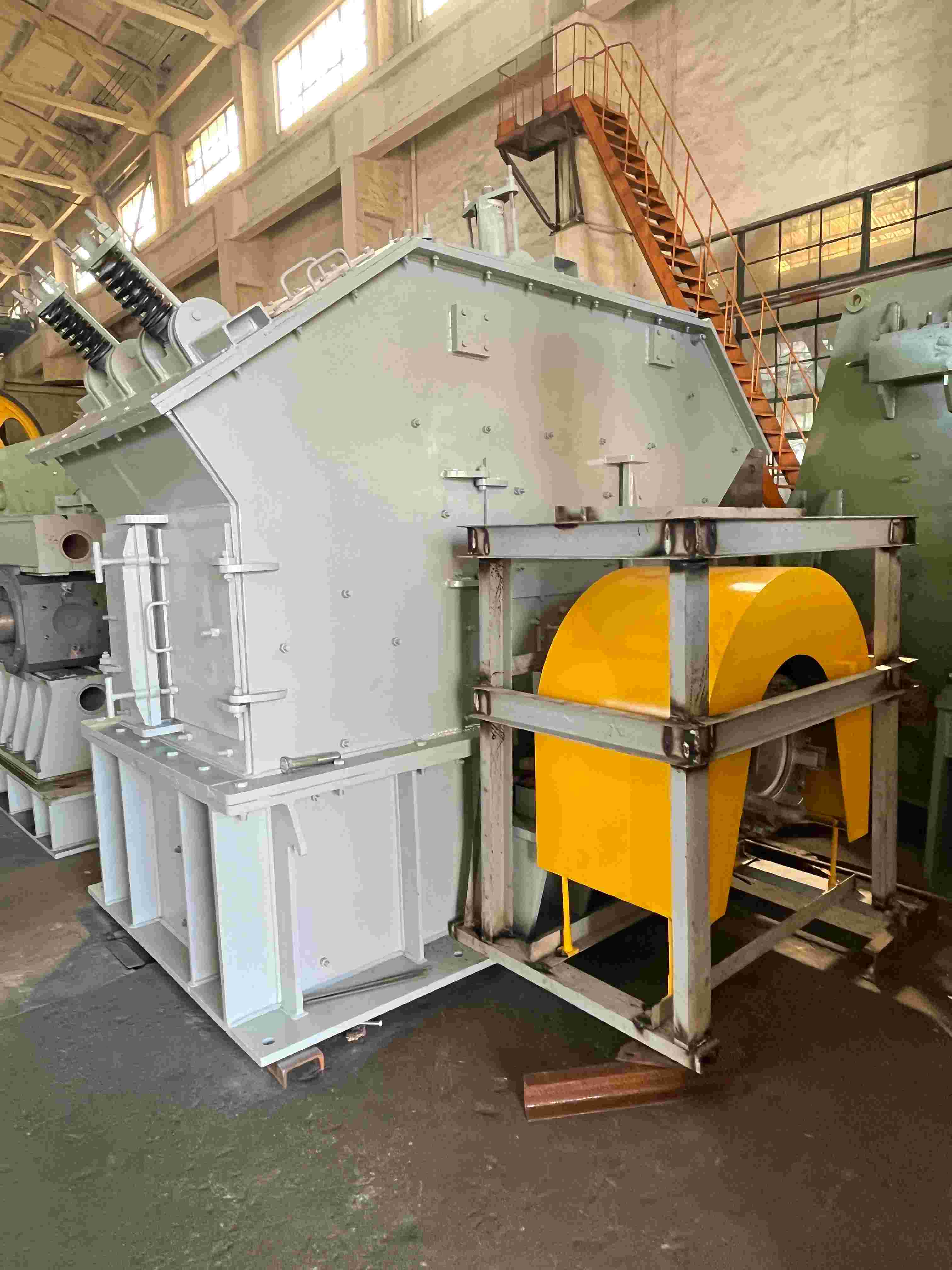

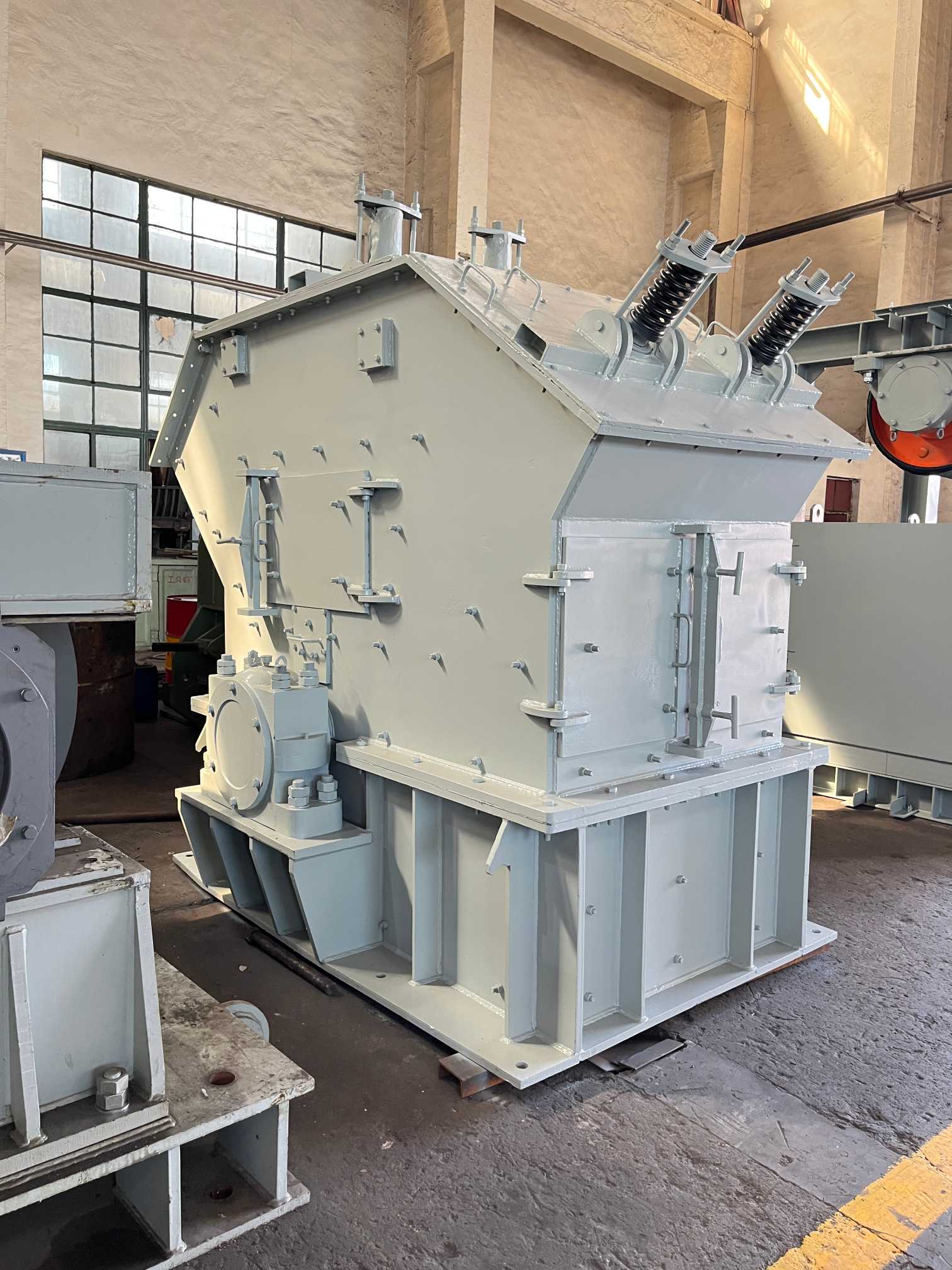

Impact crusher 1250×1000 mm
PF series crusher is a new type of equipment developed by absorbing international advanced technology on the basis of fully considering domestic and foreign products in cement industry. The crusher has the features of large crushing ratio, long service life, etc. It is suitable for materials with compressive strength less than 350MPa.
The advantages of PF1210 impact crusher: high crushing efficiency, low energy consumption, uniform product size, can reduce the number of crushing steps, simple structure, large production capacity, impact crusher hammer plate and lining plate, etc. They use highly wear-resistant materials, simplify the production process, and are suitable for large and medium-sized crushing production. It is applied to crushing large materials in metallurgy, building materials, mining, highway, mineral processing and other industries.
Name |
Parameter |
|
Rotor length X（mm） |
Φ1250×1000 |
|
Max. feed size（mm） |
≤70 |
|
Final grain size（mm） |
≤12 |
|
Capacity（t/h） |
55 |
|
Engine |
Type |
Ye4-315L |
Power（KW） |
110 |
|
revolution（r/min） |
750 |
|
Size(L*W*H)（mm） |
2900×2280×2460 |
|
Machine weight（Kg） （excluding engine） |
14500 |
|
