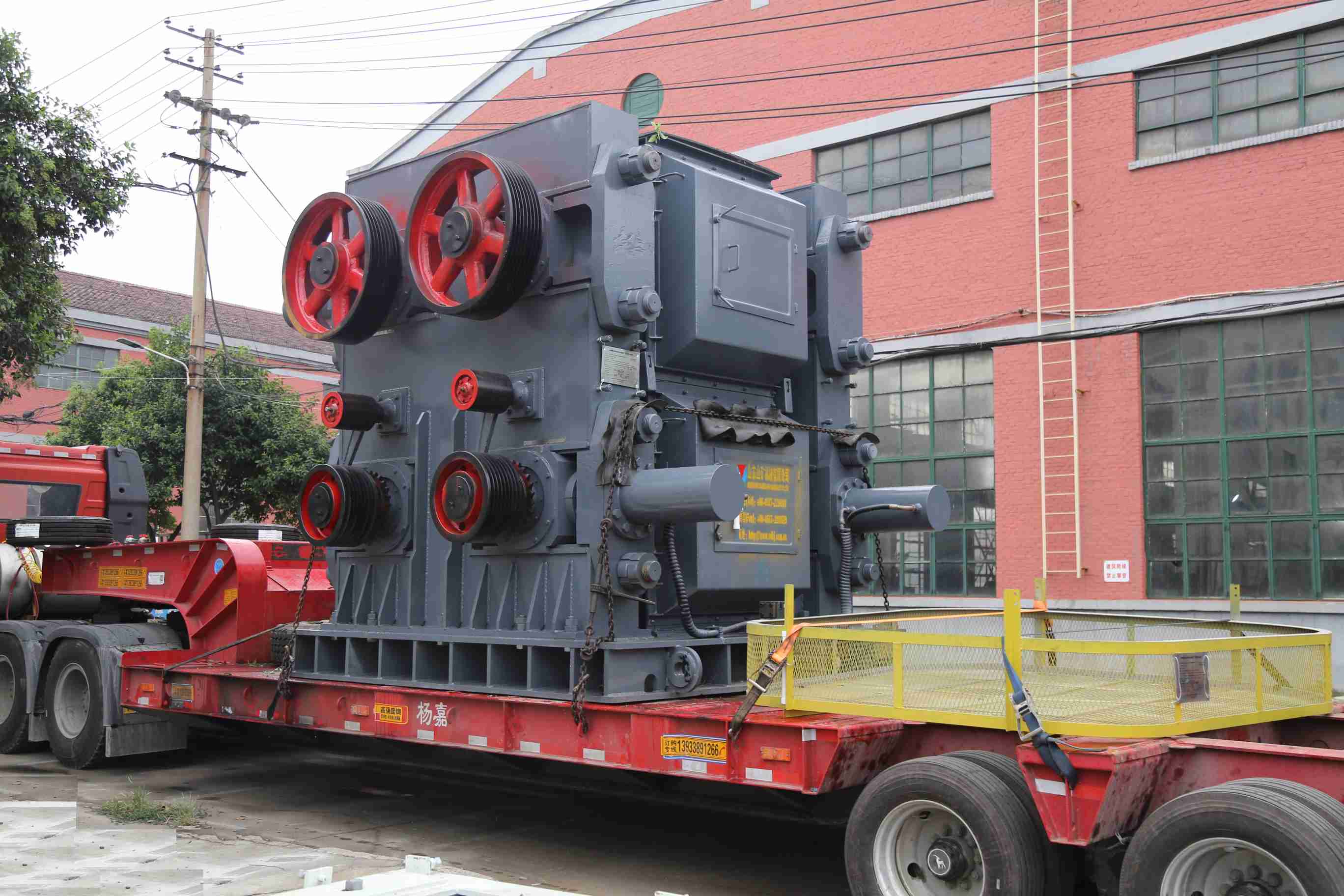

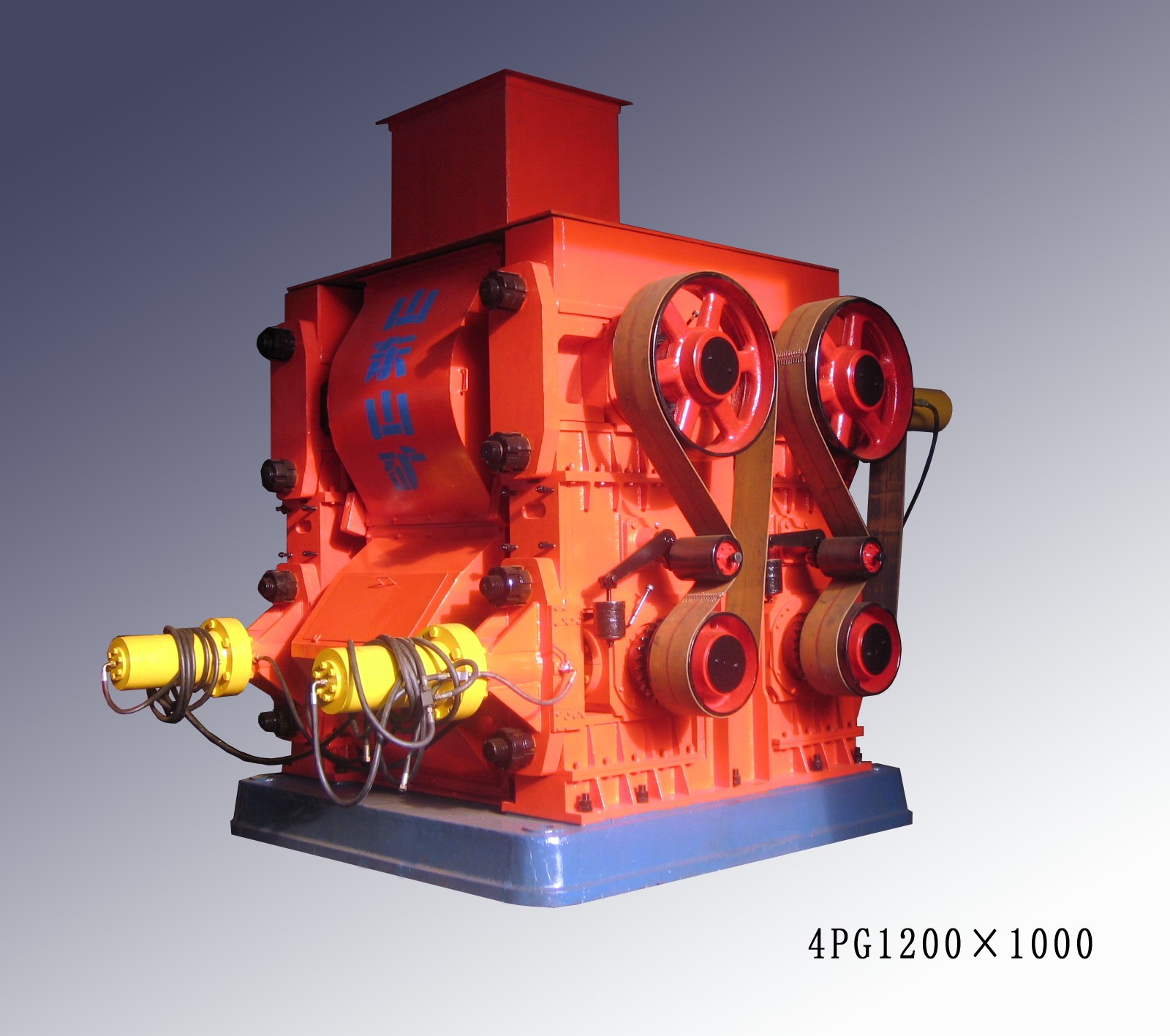

Four roll crusher 1200×1000 mm
Four-roll crusher is a kind of simple structure, compact, lightweight medium crushing, fine crushing, coal crushing particle size regulation range is large, with the device and function of roller wear repair, strong adaptation to material moisture, smooth discharge. Used for crushing limestone, marl shale, brick, slag, clinker, feldspar, coke, etc.
Four roll crusher is a type of medium and fine crushing supporting metallurgical mining equipment. It crushes the required granular material by adjusting the gap between the upper and lower rollers. This kind of equipment has the characteristics of compact structure, small area, large crushing ratio and high productivity.
Roller diameter： φ1200mm
2.Drum length：1000mm
3.Feed grain size：≤10mm
4. Grain size for unloading： ≤3mm
5.capacity： ～40t/h
6.Roll rotation：
at destruction：upper roll 91.8rpm, lower roll 175r.pm
when cutting：45.6rpm
7.Selected engine：
top drive roller: YD280S-8/4, 40/55kW, 740/1470 rpm IP54
Bottom drive roller: YX3-315M-6 90kW 980rpm IP54
8. Gearbox with coupling：
upper drive roller ZLY315-16-II
lower drive roller ZDY280-5.6- I
9. Overall size (excluding hydraulic part): 5614×3910×3720 mm
10. Total machine weight： ~ 65703 kg
