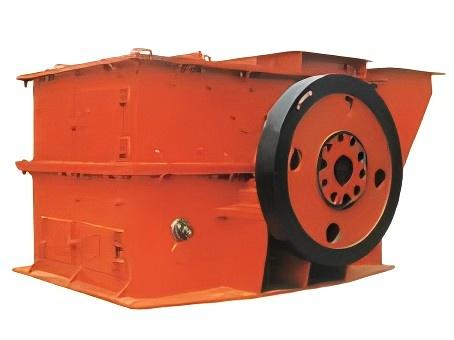

Ring hammer crusher 800×800 mm
PCH 0808 type ring hammer crusher is designed for crushing all kinds of brittle materials, with maximum strength against pressure not more than 12 MPa and surface moisture content within 9%, such as coke coal, coal, shale, slag, loose limestone, etc. .,.
Ring hammer crusher is one of the crushing equipment, but also a kind of hammer crusher series of technology advanced equipment, its role is to crush the stone into finished material. Heavy hammer crusher is an advanced high power, high crushing ratio, high crusher performance, and broke the previous crushing principle of crushing equipment, can be reasonably adjusted according to the nature of the material, the output power is better.
Name |
Parameter |
|
Rotor length X（mm） |
Φ800×800 |
|
Max. feed size（mm） |
200 |
|
Change the size of the unloading gate（mm） |
30 |
|
Capacity（m³/h） |
75-105 |
|
Engine |
Type |
Y280M—8 |
Power（KW） |
45 |
|
revolution（r/min） |
740 |
|
Size(L*W*H)（mm） |
2850×1650×1200 |
|
Equipment weight (without engine)（Kg） |
3600 |
|
