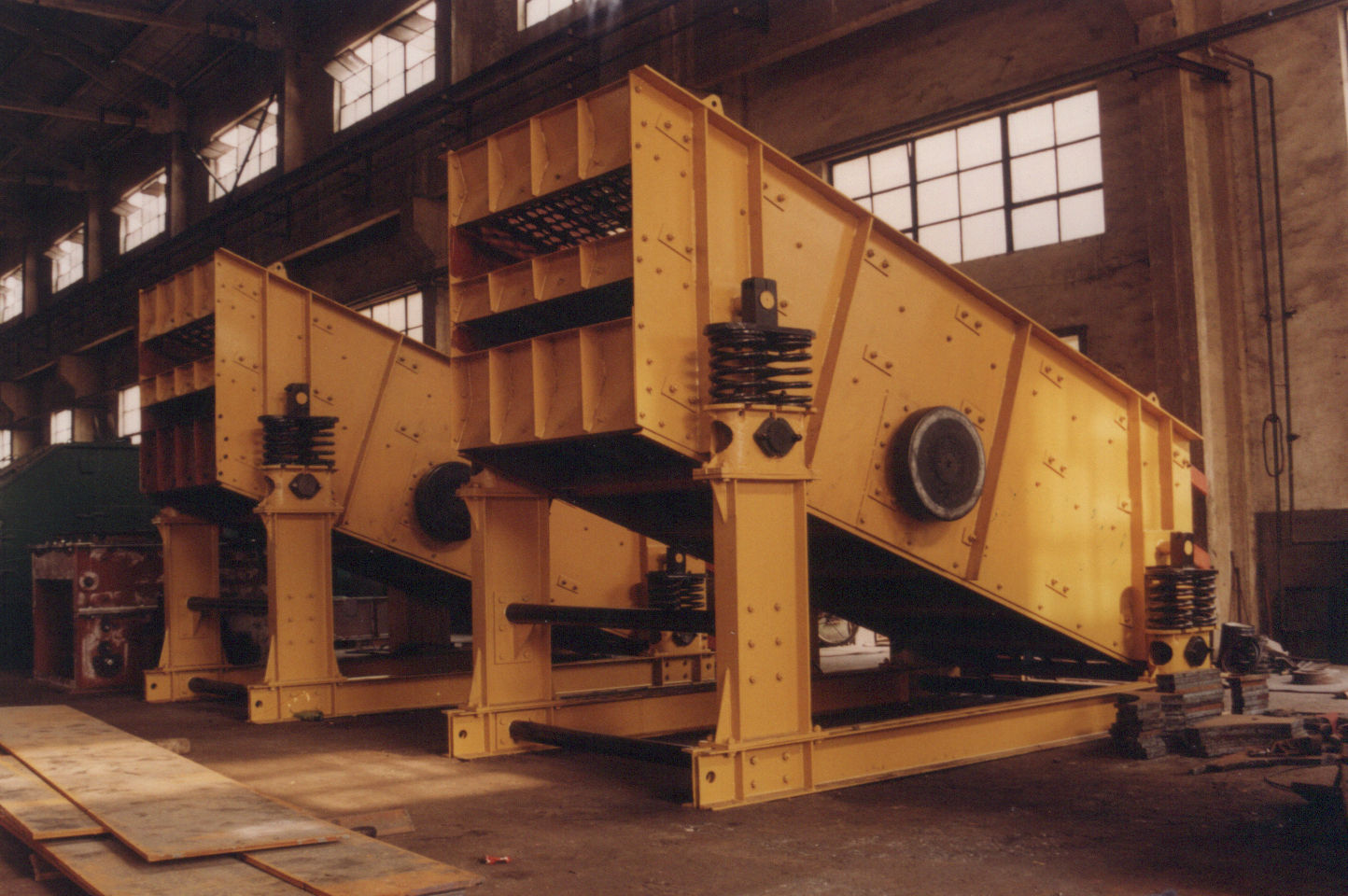

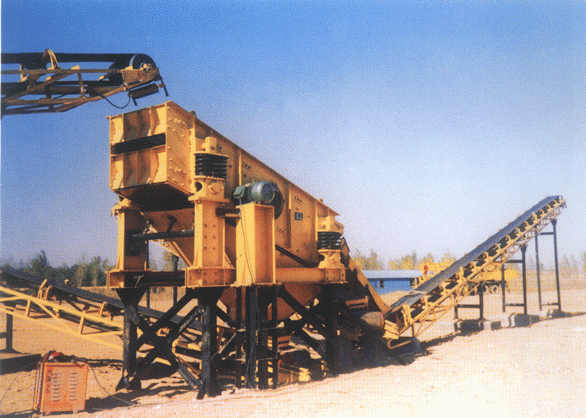

YA Series Circular Vibrating Screen
YA series circular vibrating screen is a low and short type equipment with the following characteristics:
(1) small volume, light weight, ease of installation and technological arrangement;
(2) a reasonable ratio of the length and width of the working surface of the feeder;
(3) compact structure without complex moving parts, convenient maintenance and low cost;
(4) It is a low and short type of equipment with simple structure, beautiful appearance, and can be easily transported in general.
This kind of screen is mainly used in coal industry, metallurgy, mine, power plant, building materials industry, water reservoir, light industry and chemical industry. It is an efficient screening machine for classifying bulk materials such as coal, ore, coke, etc.
Operating principle and structure characteristics
Vibrating Screen Motion Principle: The motor drives the eccentric gravity vibrator with a V-belt to vibrate the screen box, the screen box works in a circular motion.
This vibrating screen consists of a box, a vibrator, a spring shock absorber, a support frame, etc. The screen box is connected with high-strength bolts, forming a frame structure. The vibrator uses an eccentric shaft and a brick-type eccentric. The spring shock absorber is a steel coil spring.
Specifications：
