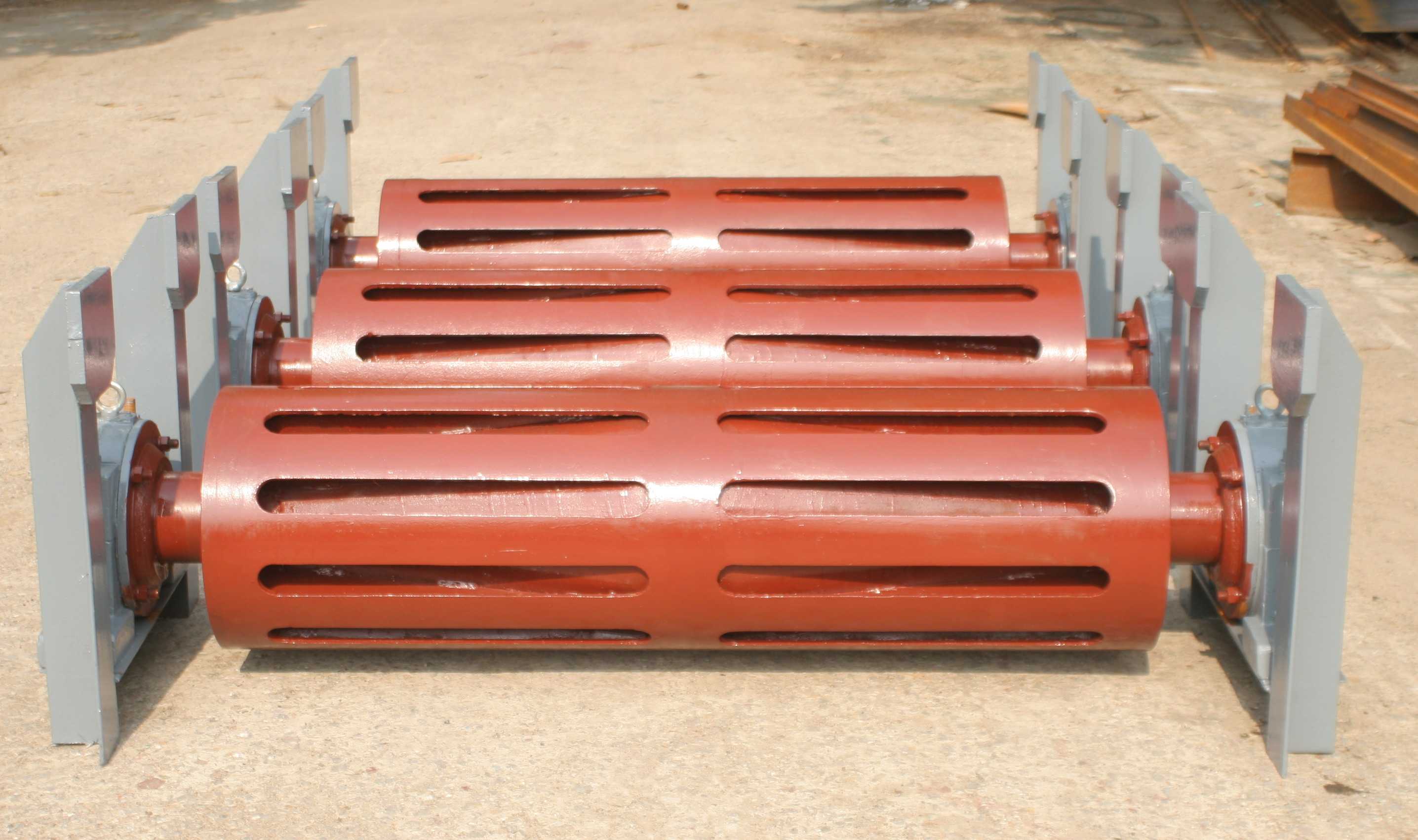

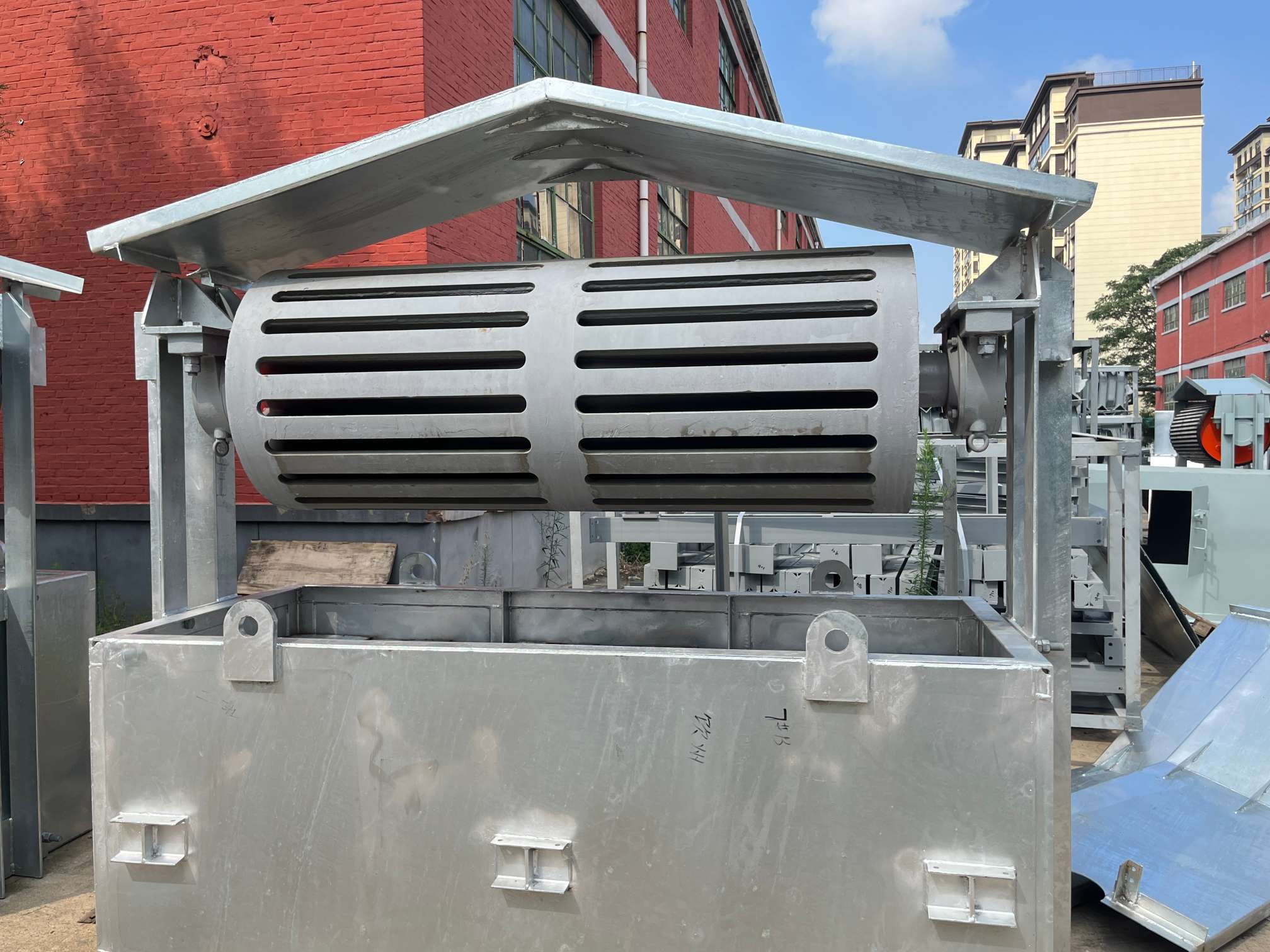

Slag Discharge Pulley
The slag discharge pulley is especially suitable for the turning point roller of steel raw material plant, wharf warehouse, power station and coal warehouse. When there is more material on the return belt, material can be unloaded from the return belt.
1. Long service life. Avoid overloading and extend drum life.
2. check. Periodically check the reliability of welding of the drum cover and end cover, good lubrication and reduction of wear losses.
3. put things in order. Regularly clean the drum of dust and other foreign bodies.
A slag discharge drum is used in a belt conveyor. The operating principle of the slag discharge drum is to have a long hole parallel to the axial direction. When the return belt has material, the material can enter the long hole and enter the drum. On the inside of the drum is a double cone with two thick middle points, with holes at both ends of the drum. After the axial long hole on the surface of the drum and discharged into the yard through the cone and end hole. This avoids pressure on the shelf and wear on the belt when changing the roller, and also increases the service life of the belt.
