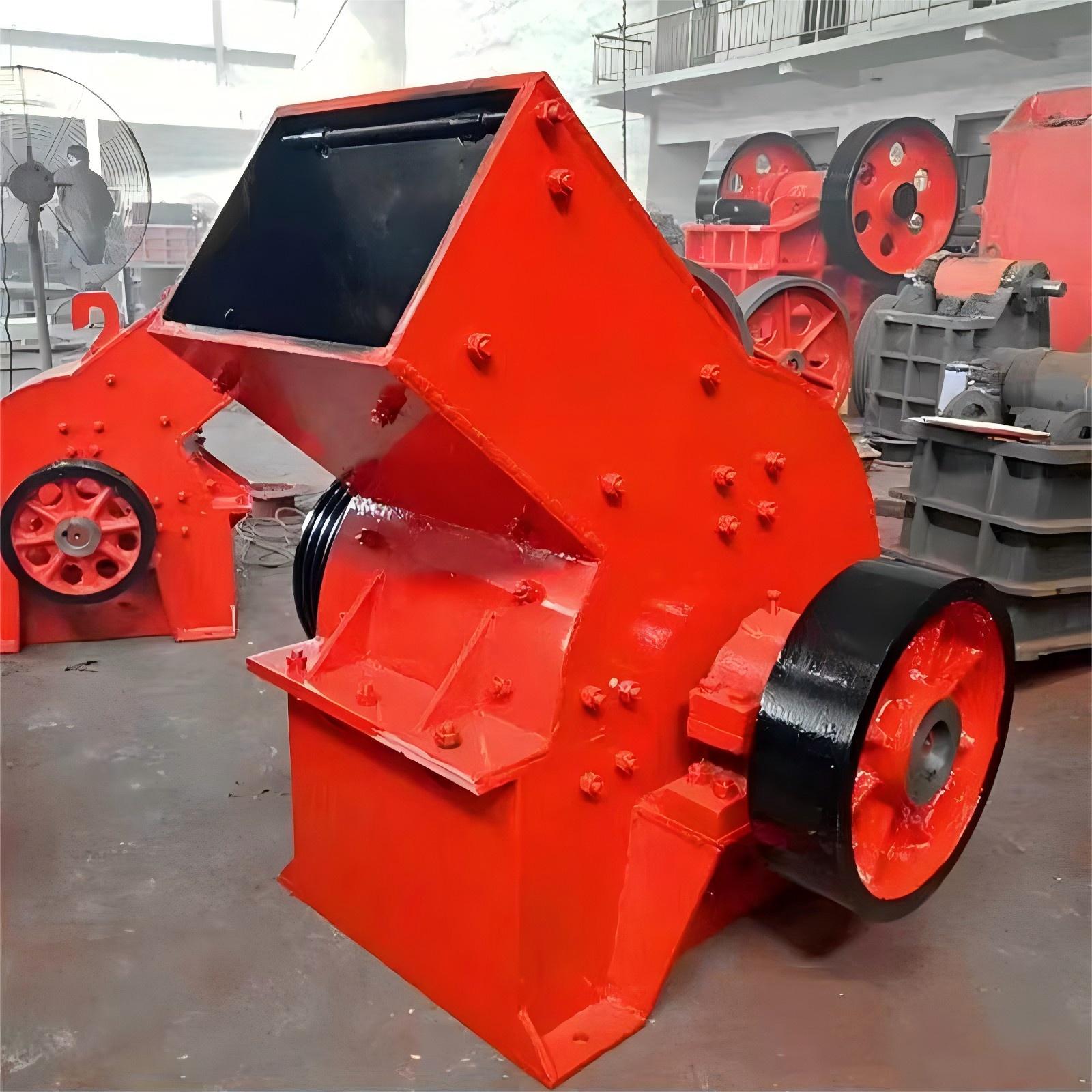

Hammer crusher 1000×800 mm
The hammer crusher is suitable for crushing various materials, such as brittle, medium hard, surface moisture less than 2% and compressive strength less than 150MPa. It is used for crushing or fine crushing of coal, coal deposits, limestone, shale, feldspar, gypsum, coke, bricks and tiles, limonite, crushed stone, salt and sulfur, phosphate ore in many industries such as coal, metallurgy, building materials , chemical industry, energy and other departments. The machine has the characteristics of light and compact body, simple structure, easy operation and maintenance, large crushing ratio, less excess crushing, uniform and small product size, high production capacity, low energy consumption and so on. The compressive strength of the material is less than 100 MPa, and the moisture content is less than 15%.
1.Model：PC-1008
2.Rotor length X length：f1000×800（mm）
3.Max. feed size：200（mm）
4.Feed particle size：550×880（mm）
5.Finish particle size：13~40（mm）
6.Capacity：13~36（t/h）
7.Power：110KW
8.Voltage：220/380V
9.Overall size(LXWXH): 2230×3515×1515mm
10.Equipment weight: excluding engine: 6500 kg
11.hammer head：（each weight/quantity） 11.4kg/48
Single rotor hammer crusher, irreversible hammer crusher, hammer impact for crushing brittle materials or medium-hard minerals (such as coal, salt, limestone, gypsum, etc.), but cannot be used with hardness, fibrous and moisture content compared with hammer crusher characteristics: The crushing ratio is large, so it is suitable for use under the requirement of small size.
