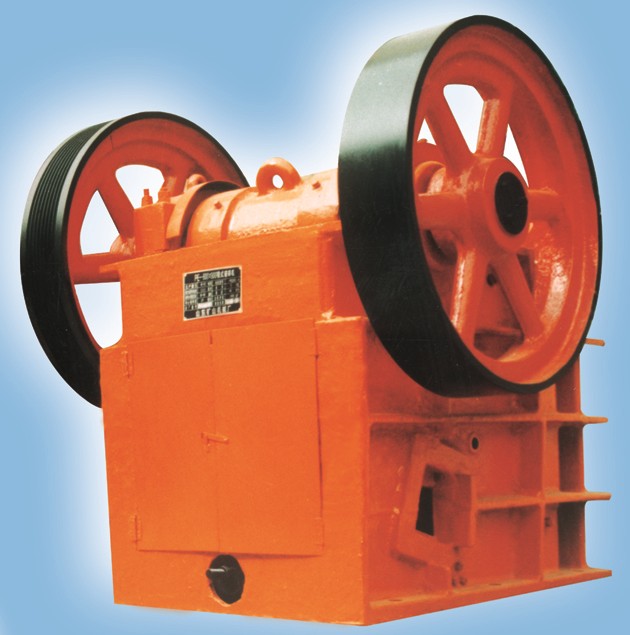

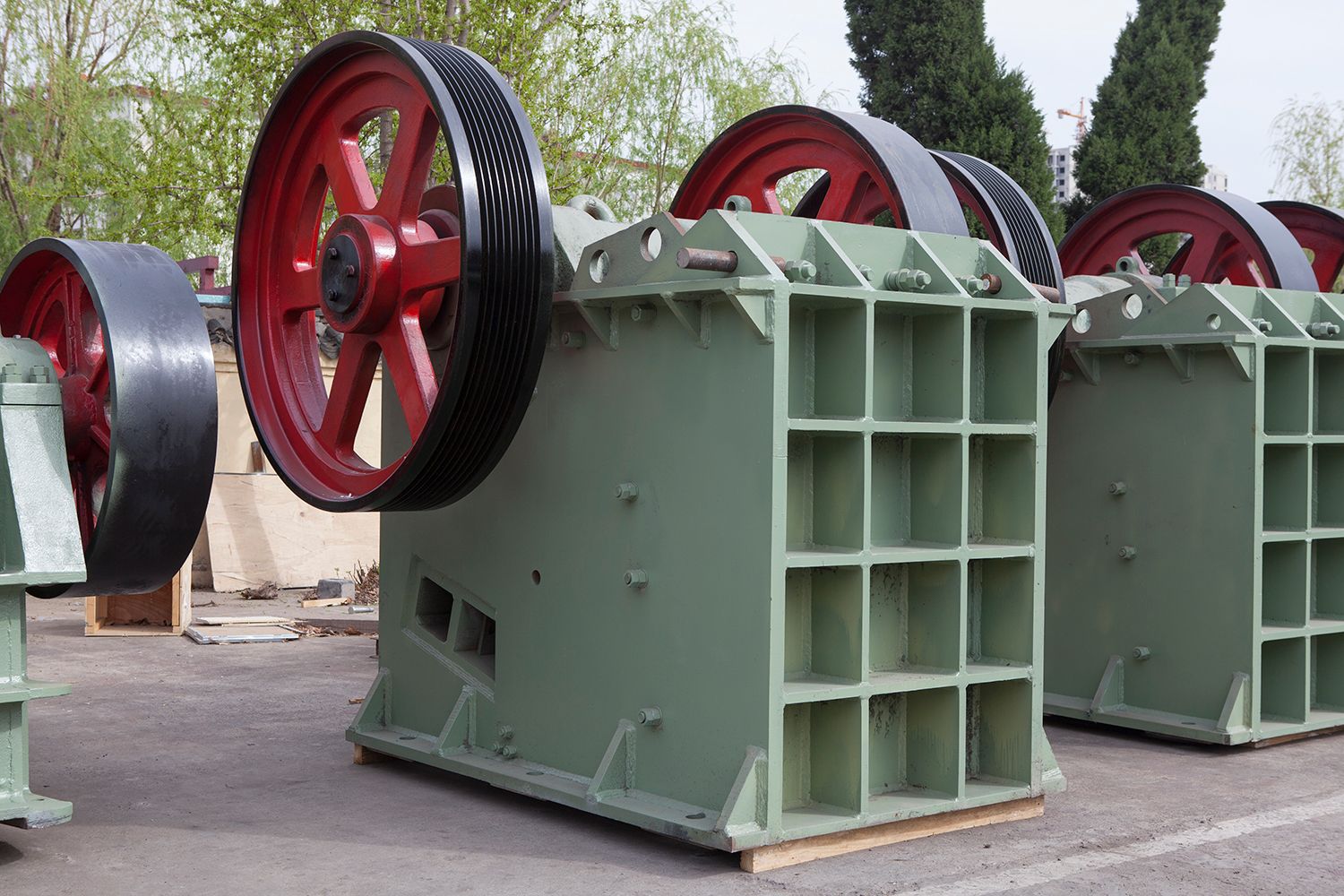

Jaw crusher 600×900 mm
1、The crusher is used for crushing all kinds of ore or rock with material strength against pressure less than 500MPa, and grain size not more than 250mm.
2、It has many advantages: simple structure, reliable operation, convenient operation, etc. It is widely used in many industries such as building materials, metallurgy, chemical industry, mining, road construction, etc.
The jaw crusher is driven by an electric motor driving the eccentric shaft through a belt drive, so that the movable jaw reciprocates according to a predetermined track to crush the material into the crushing cavity, which is composed of a fixed jaw plate, a movable jaw plate and a side guard plate, and unload the finished material through the lower unloading port. This series jaw crusher crushing mode is curved extrusion type, motor drive belt and pulley, through the eccentric shaft, when the jaw is raised the angle between the jaw and jaw and jaw close, and then when the jaw is down, the elbow and jaw jaw are driven by the jaw, the spring is broken material from the broken cavity mouth discharge, with a continuous rolling motor broken jaw motor for periodic crushing and discharge, to achieve mass production.
1. The crusher is used for crushing all types of ore or rock with material strength against pressure less than 500MPa, and grain size no more than 250mm.
2.Inlet size (width X length)：600*900（mm）.
3.Outlet adjustment range：65～160（mm）
4.Maximum inlet size：500（mm）
5.Capacity：25～63（m³/h）
6.Power：75KW
7.Overall size(LXWXH): 1700×1732×1653mm
8.Equipment weight: excluding engine: 14210 kg
