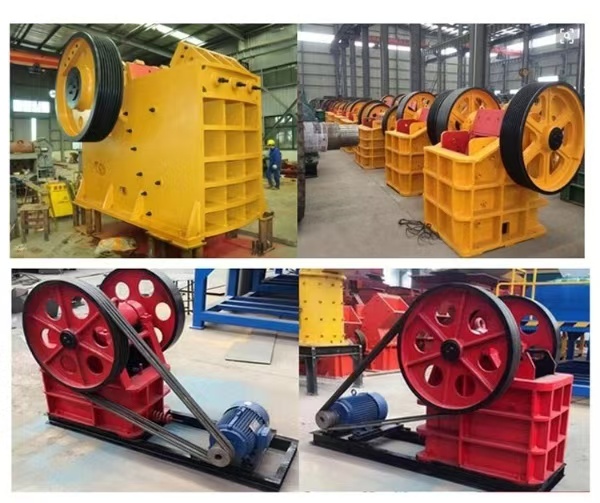

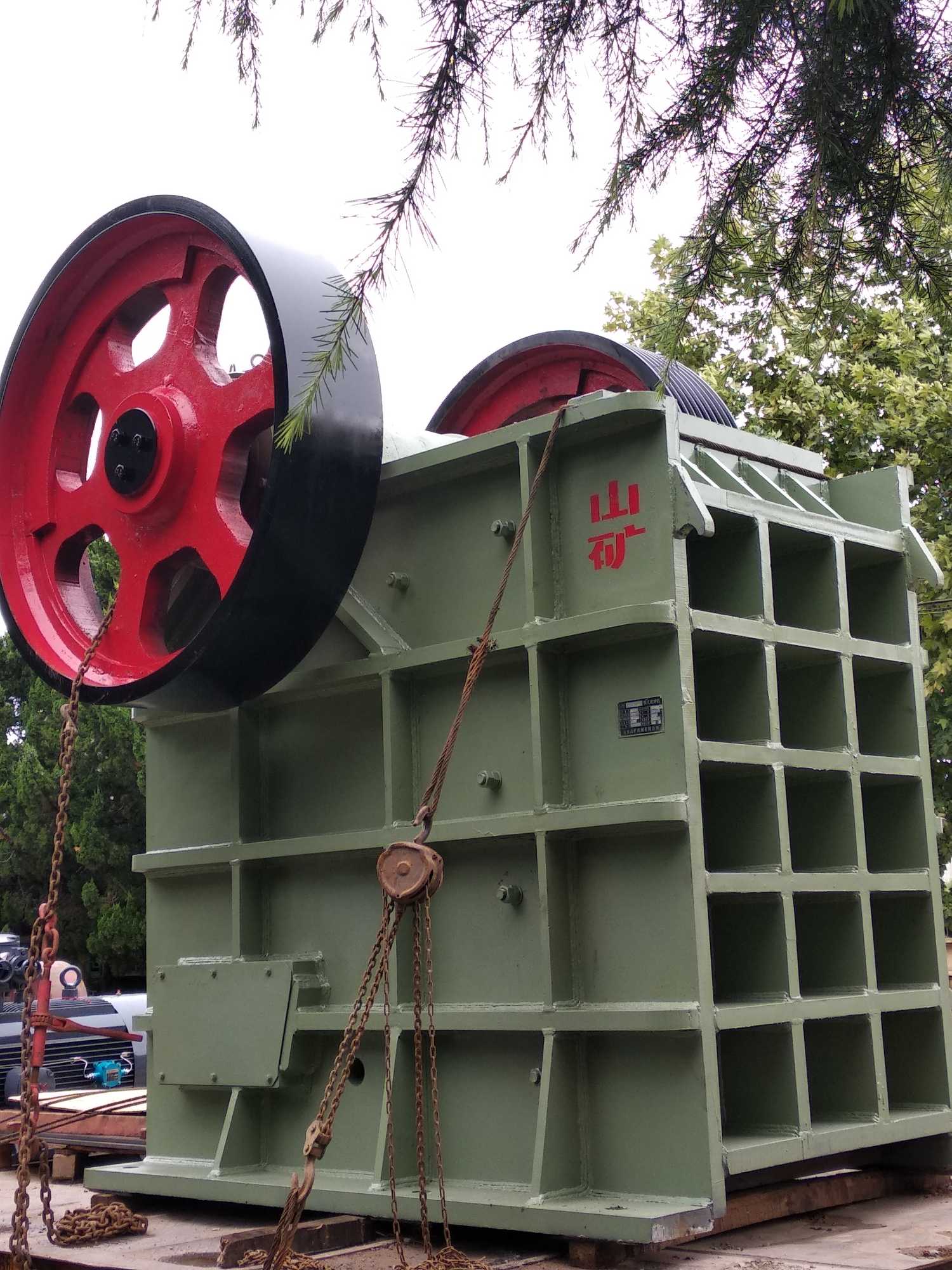

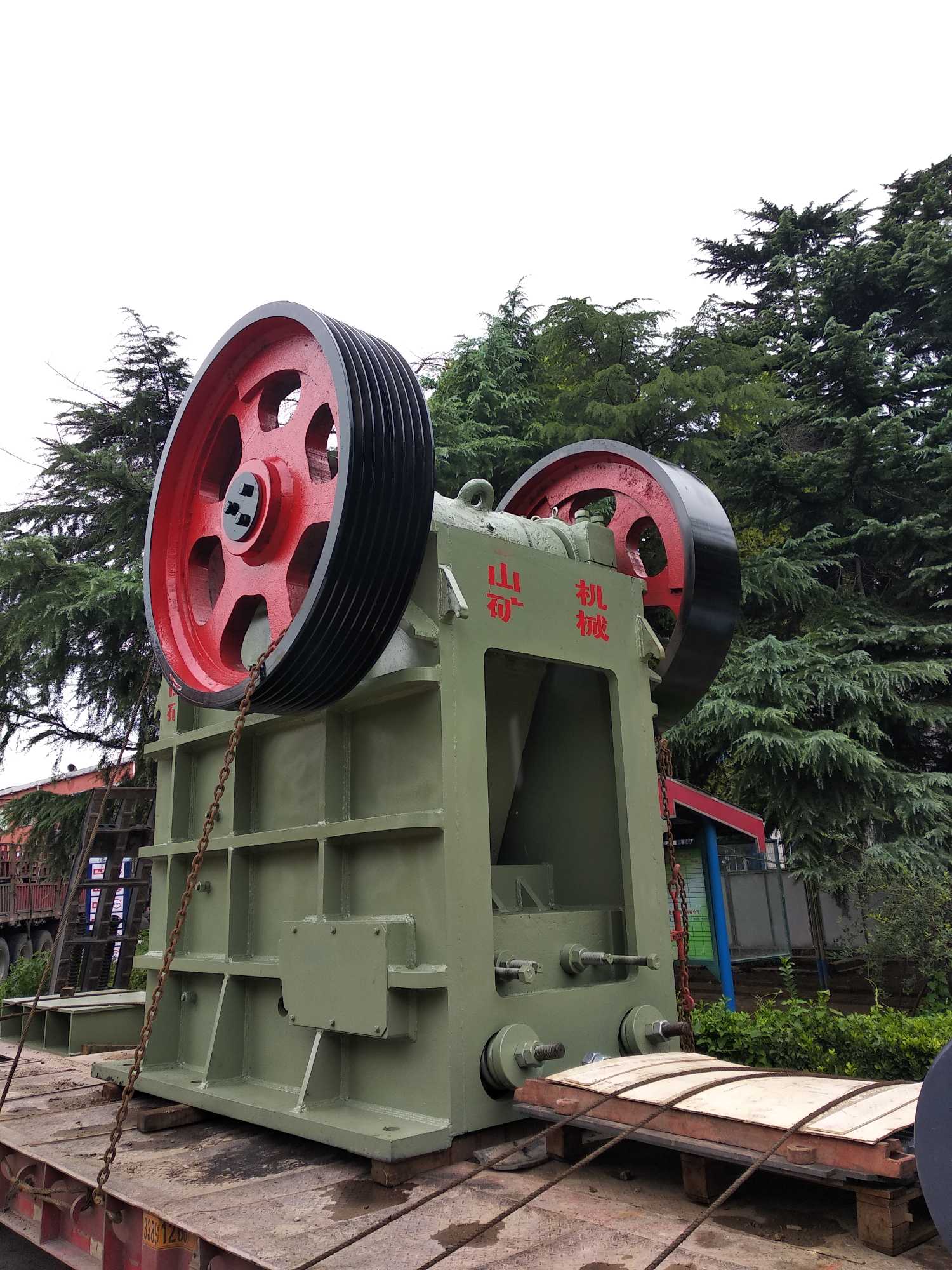

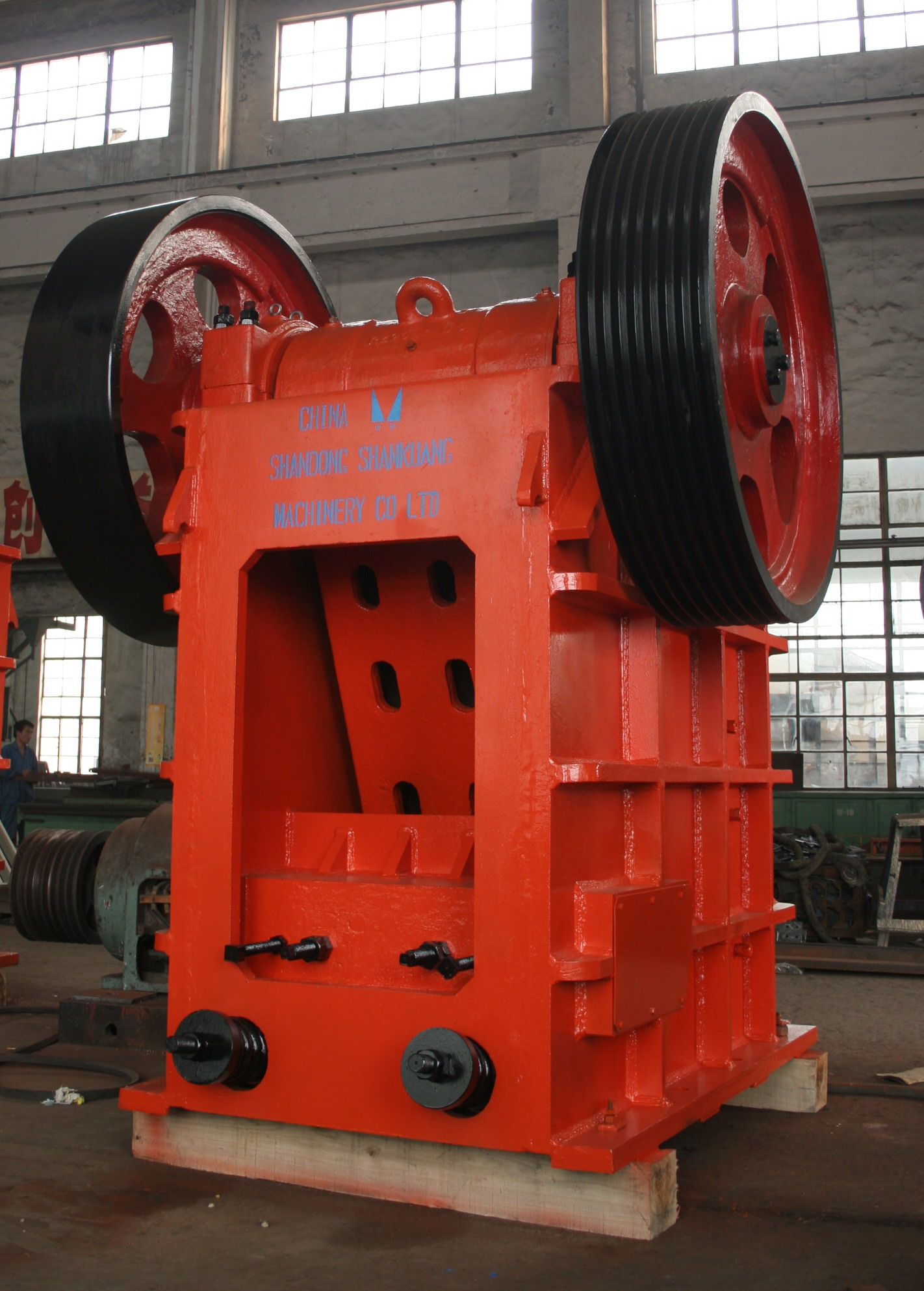

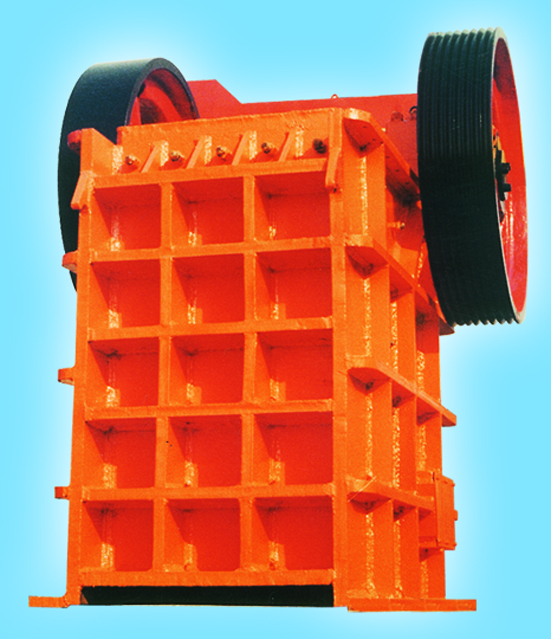

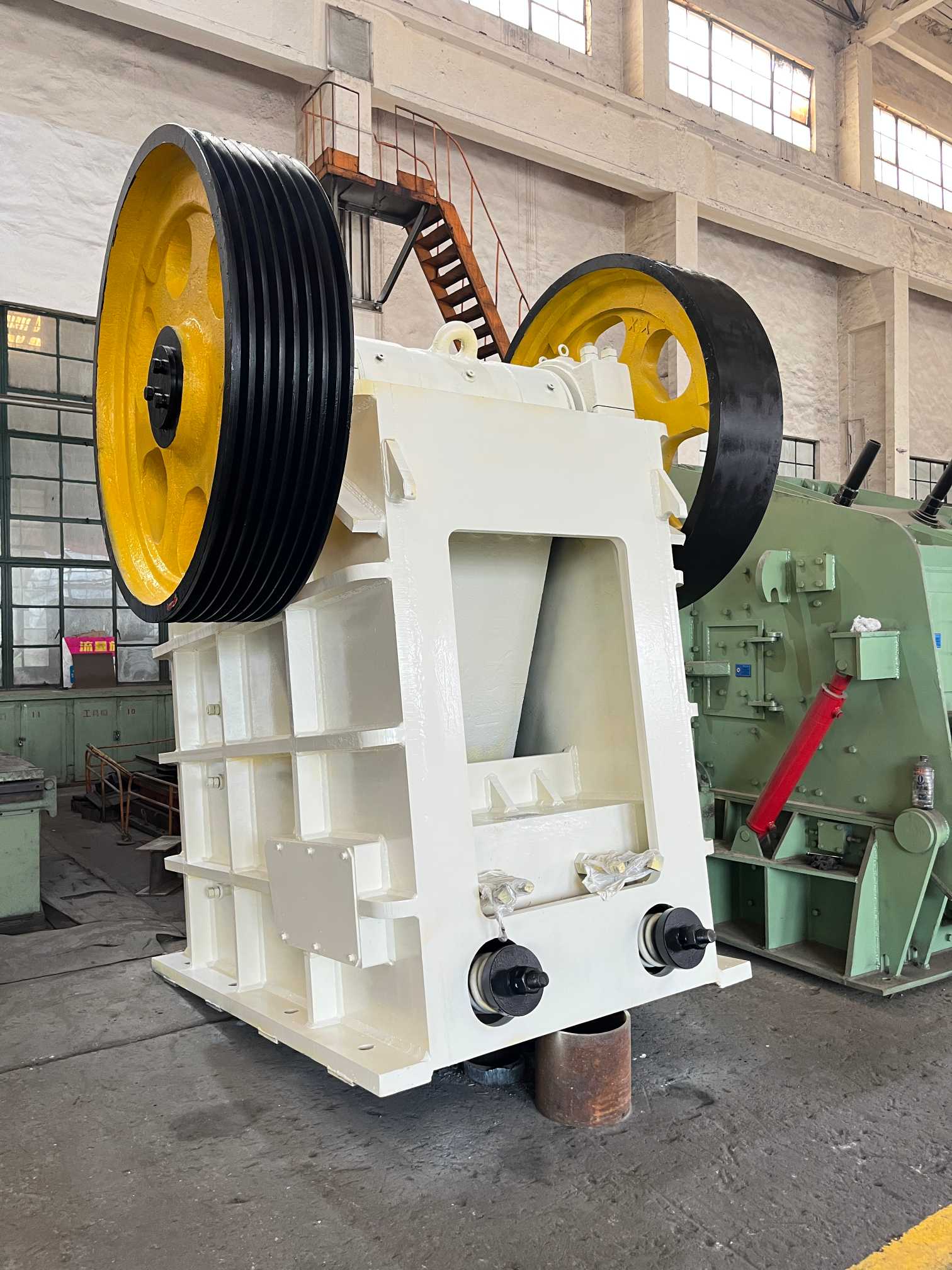

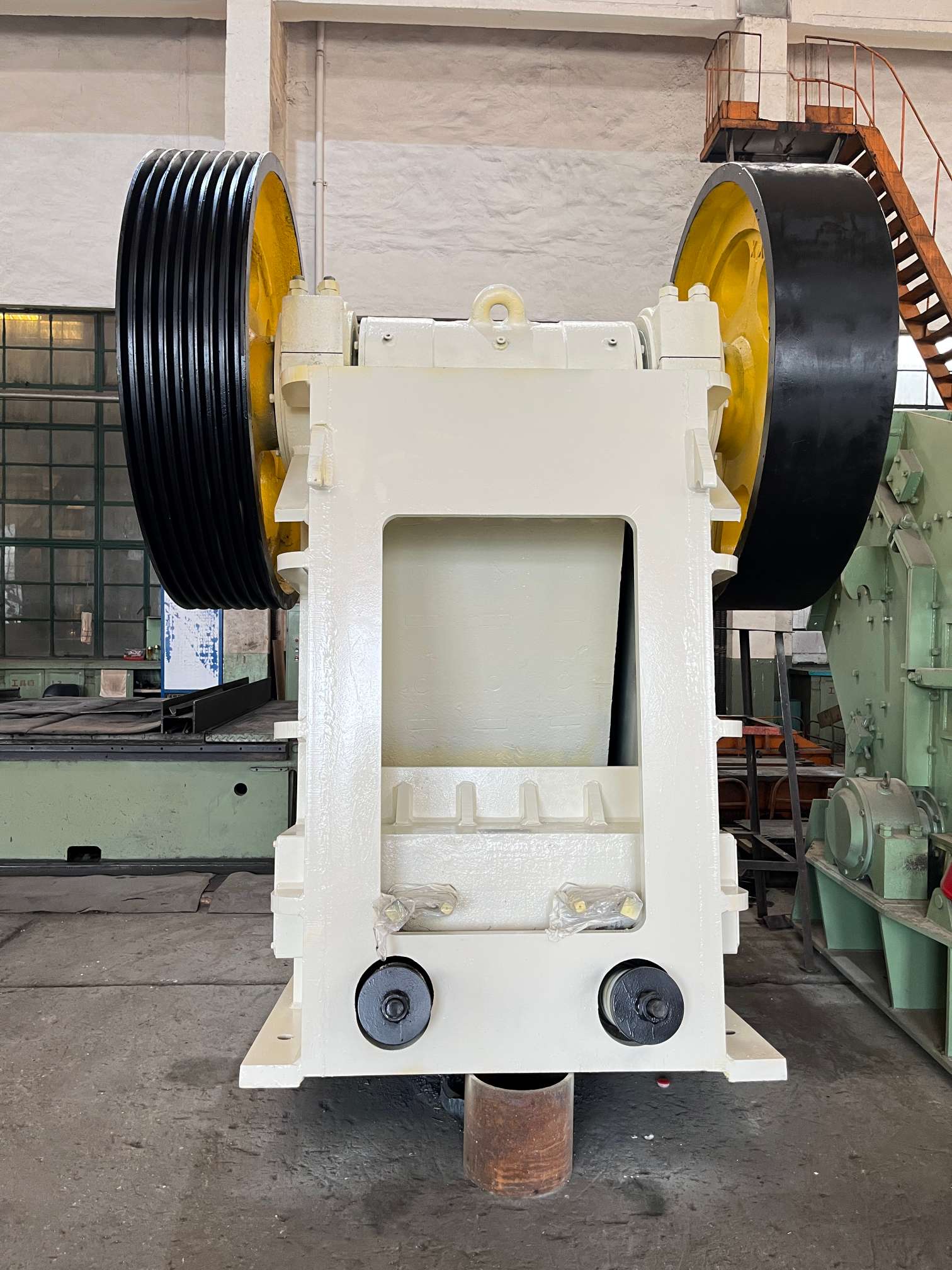

Jaw crusher 750×1060 mm
The 750×1060mm jaw crusher is suitable for ore and rock no larger than 630mm, and the compressive strength of the crushed material does not exceed 250Mpa. It has the advantages of simple structure, reliable performance, convenient operation and safe use. Widely used in building materials, metallurgy, chemical industry, mining, road construction and other industries.
Jaw Crusher Stone Crusher Introduction:
The rock crusher is often used as a primary and secondary crusher in mining, metallurgy, construction and some other industries. It takes large pieces of rock, ore, concrete or other materials and crushes them into smaller sizes for further processing in a ball mill or hammer crusher.
It is widely used in mining, metallurgy, construction, road, railway, slag, water conservation and chemical industries to crush various materials with compressive strength less than 350Mpa.
It is suitable for crushing all kinds of hard and soft ores with compressive strength less than 300MPa, such as pebbles, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone, iron ore, coal waste, construction waste, ferrosilicon , basalt, sandstone, ore, glass, cement clinker, etc.
Name |
Parameter |
|
Rotor length X（mm） |
Φ750×1060 |
|
Max. feed size（mm） |
630 |
|
Capacity（m³/h） |
110 |
|
Engine |
Type |
YR315M2-8 |
Power（KW） |
90 |
|
revolution（r/min） |
735 |
|
Size(L*W*H)（mm） |
2360x1600x3100 |
|
Machine weight（Kg） |
25050 |
|
