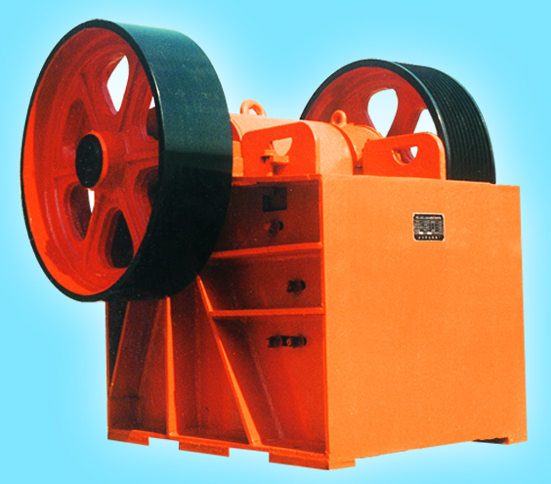

Jaw crusher 400×600 mm
The 400×600mm jaw crusher is suitable for ore and rock with the particle size of the finely crushed material not exceeding 350mm, and the compressive strength of the finely crushed material not exceeding 250Mpa. It has the advantages of simple structure, reliable performance, convenient operation and safe use. Widely used in building materials, metallurgy, chemical industry, mining, road construction and other industries.
Details
Our stone crusher, a type of jaw crusher, is widely used in mining, railway construction, reservoir, metallurgy, chemical industry, building materials industry. It is mainly used for crushing rocks and ores whose compressive strength does not exceed 320 MPa. The jaw crusher, the preferred primary crusher, is used for coarse and fine crushing.
Name |
Parameter |
|
Rotor length X（mm） |
Φ400×600 |
|
Max. feed size（mm） |
350 |
|
Capacity（m³/h） |
8~20 |
|
Engine |
Type |
Y250M-8 |
Power（KW） |
30 |
|
revolution（r/min） |
730 |
|
Size(L*W*H)（mm） |
1700x1732x1653 |
|
Machine weight（Kg） |
6500 |
|
Model |
Opening the feeder (mm) |
Installation Adjustment range (mm) |
Max. feed size (mm) |
Capacity (t/h) |
Engine power (KW) |
Weight (t) |
PE250x400 |
400x250 |
20-50 |
200 |
5-25 |
15 |
2.4 |
PE500x750 |
500x750 |
50-100 |
425 |
40-110 |
45-55 |
12 |
PE600x900 |
900x600 |
65-160 |
480 |
90-180 |
55-75 |
17 |
PE750x1060 |
1060x750 |
80-140 |
630 |
110-320 |
90-110 |
29 |
PE900x1200 |
900x1200 |
95-165 |
750 |
220-450 |
110-132 |
52 |
