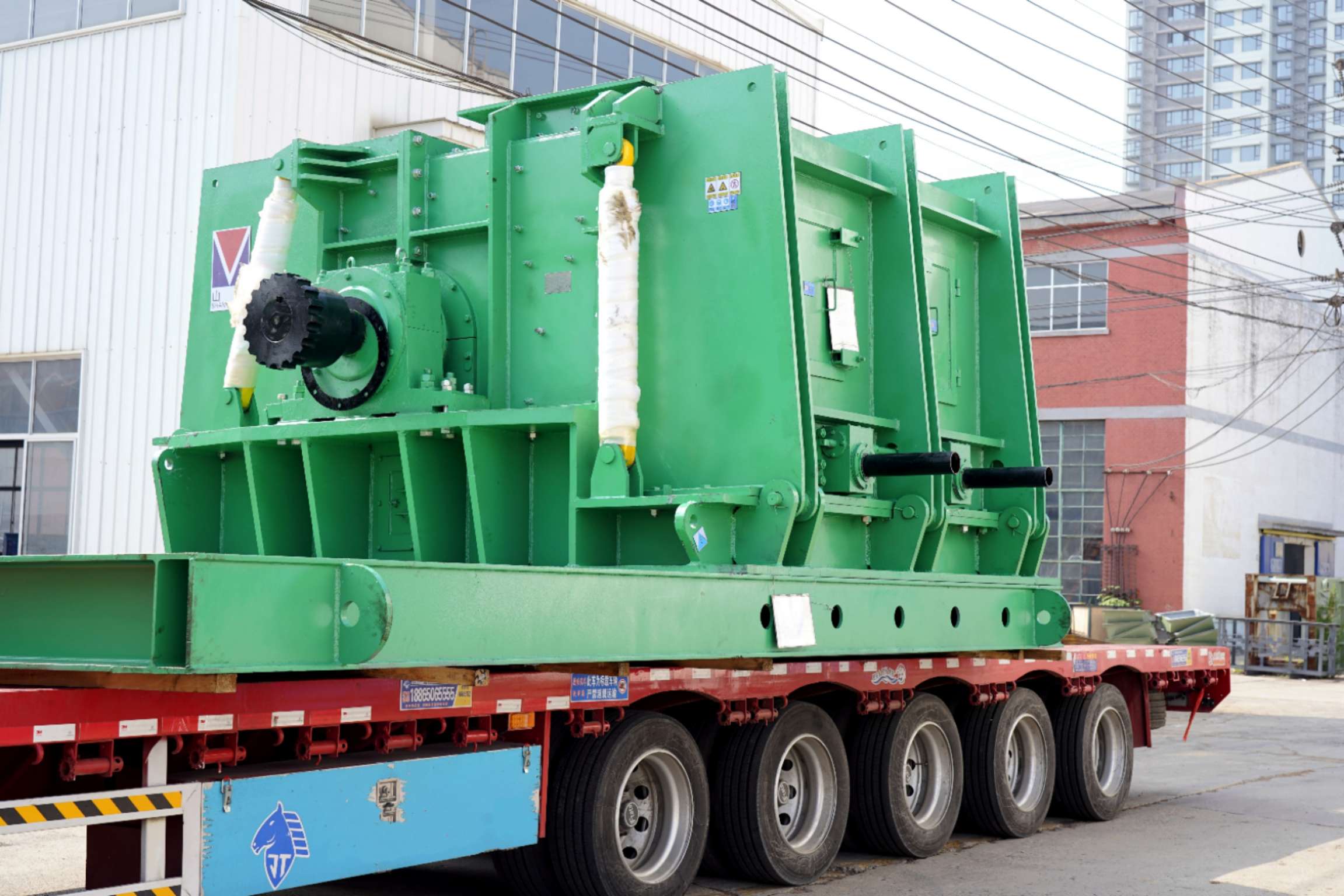

1500T Heavy Duty Ring Hammer Crusher
Heavy duty ring hammer crusher is a new product designed, suitable for power plant coal crushing, large output, uniform particle size, hydraulic body opening, convenient maintenance, reliable operation. With air volume regulator, the input changes from exhaust air to absorption air, can concentrate dust removal, prevent pollution. Remove iron, wood and other debris, low power consumption, low noise.
1. Roller diameter： φ1600mm
2. Rotor length: 2524mm
3.Rotor quality： 13876 kg
4.Max. feed size：≤400mm
5.discharge size ≤25mm
6.capacity： 1500 t/h
7.Motor type：YBPKK560-10
Power： 880 kW
RPM：594r.pm
Voltage：10000V
Quality: 6375 kg
8. Ring hammer： Row number： 4
Number of teeth ring hammer：18
Number of rings and hammers：16
9.Dimension(Without Hydraulic device)：
4165×4347×2405mm
10.Machine total weight： ~ 43658Kg
