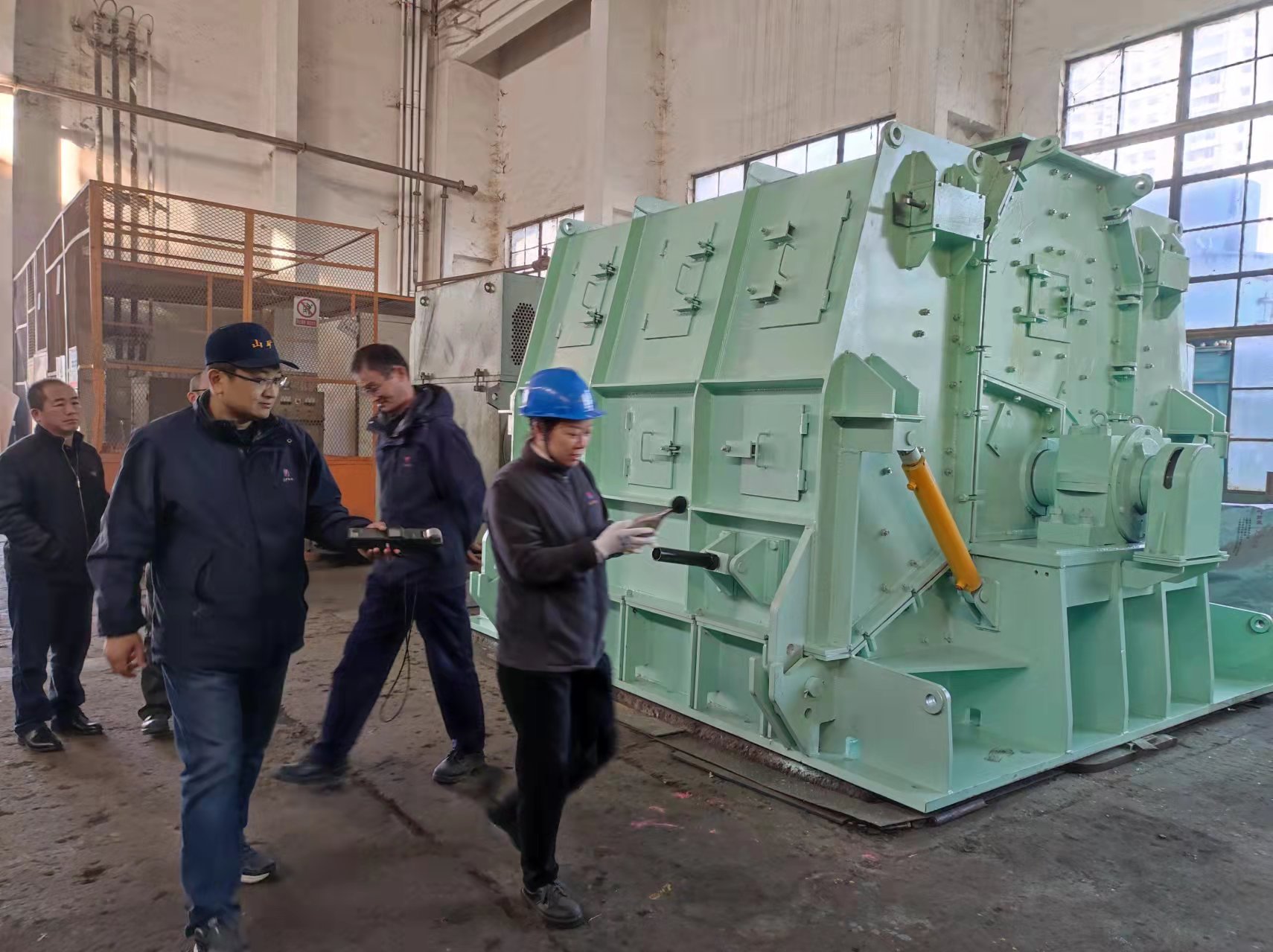

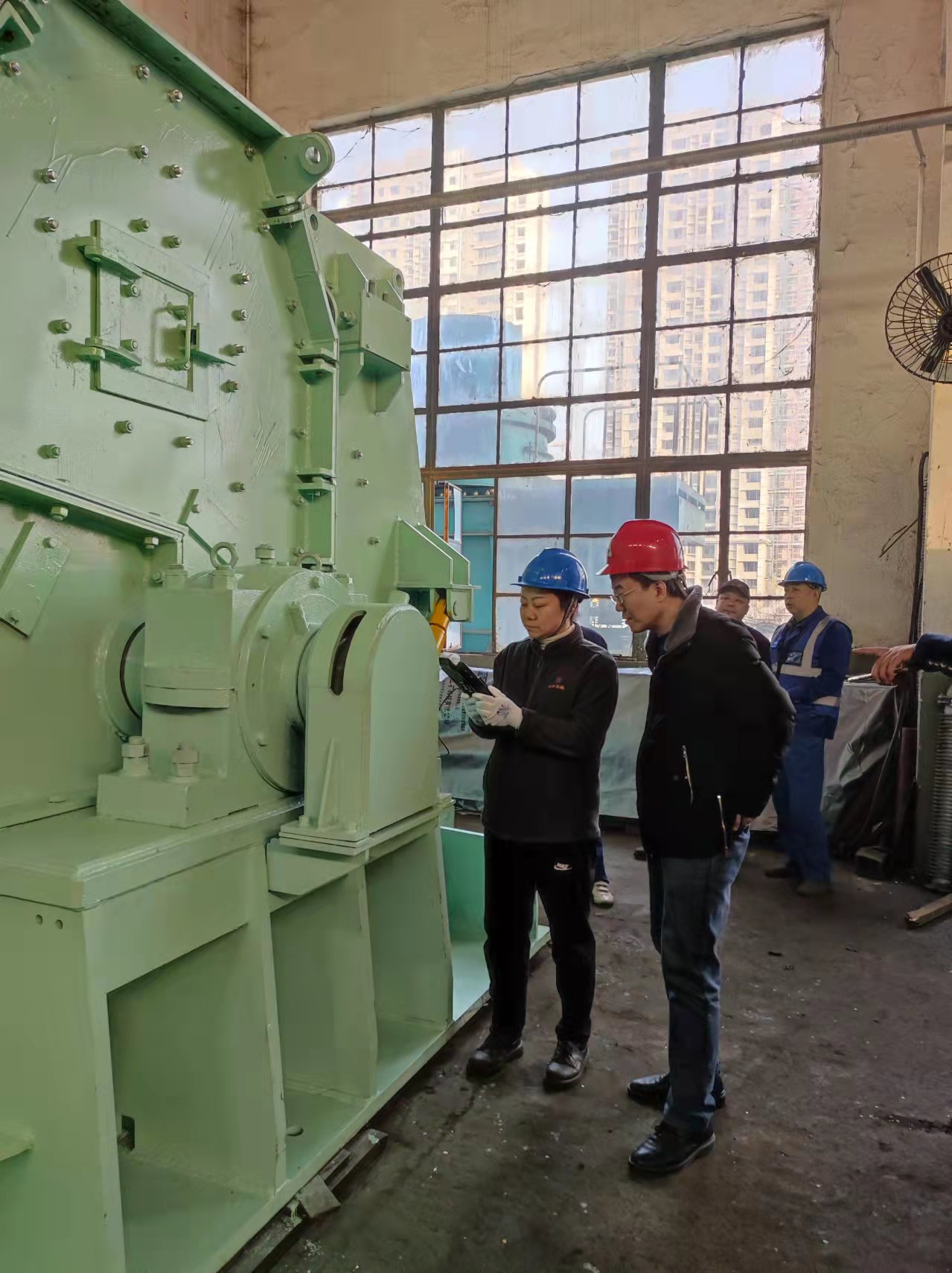

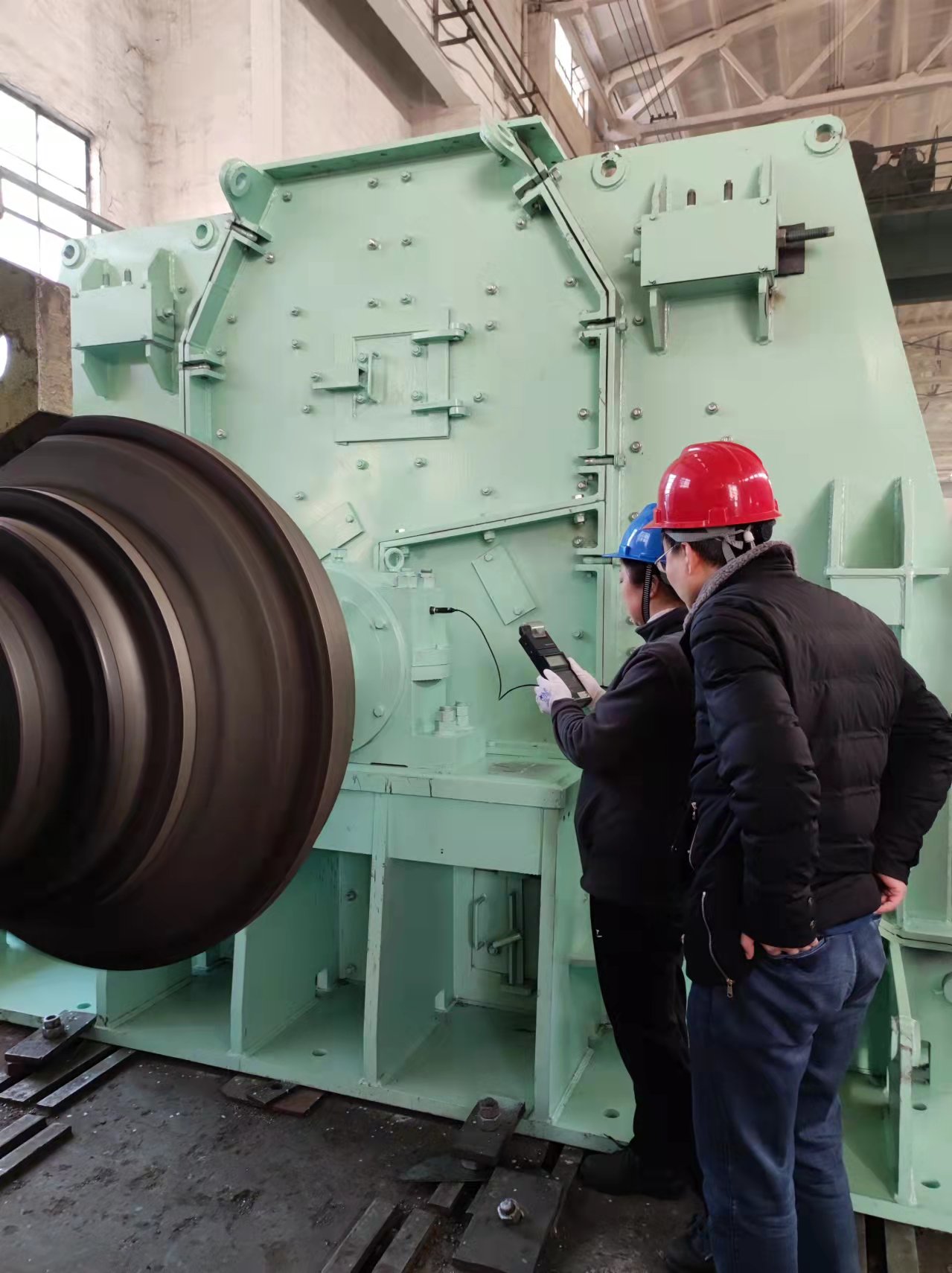

Reversible rotary hammer crusher 2000×2500 mm
The reversible hammer crusher is ideal for crushing brittle materials of medium hardness, including coal and other similar materials. With inlet particle sizes up to 80 mm, it provides 93% of outgoing particles ≤ 3 mm in size. The size of both incoming and outgoing particles can be adjusted according to the specific conditions and requirements of the user, since the equipment is equipped with an adaptive function. This unit is the optimal choice for circulating fluidized bed boilers, coke plants and steel foundries.
The reversible impact hammer crusher is a new type of crushing equipment, its rotor can move forward or backward. This kind of crusher mainly uses impact to crush materials, and is a new type of crushing equipment.

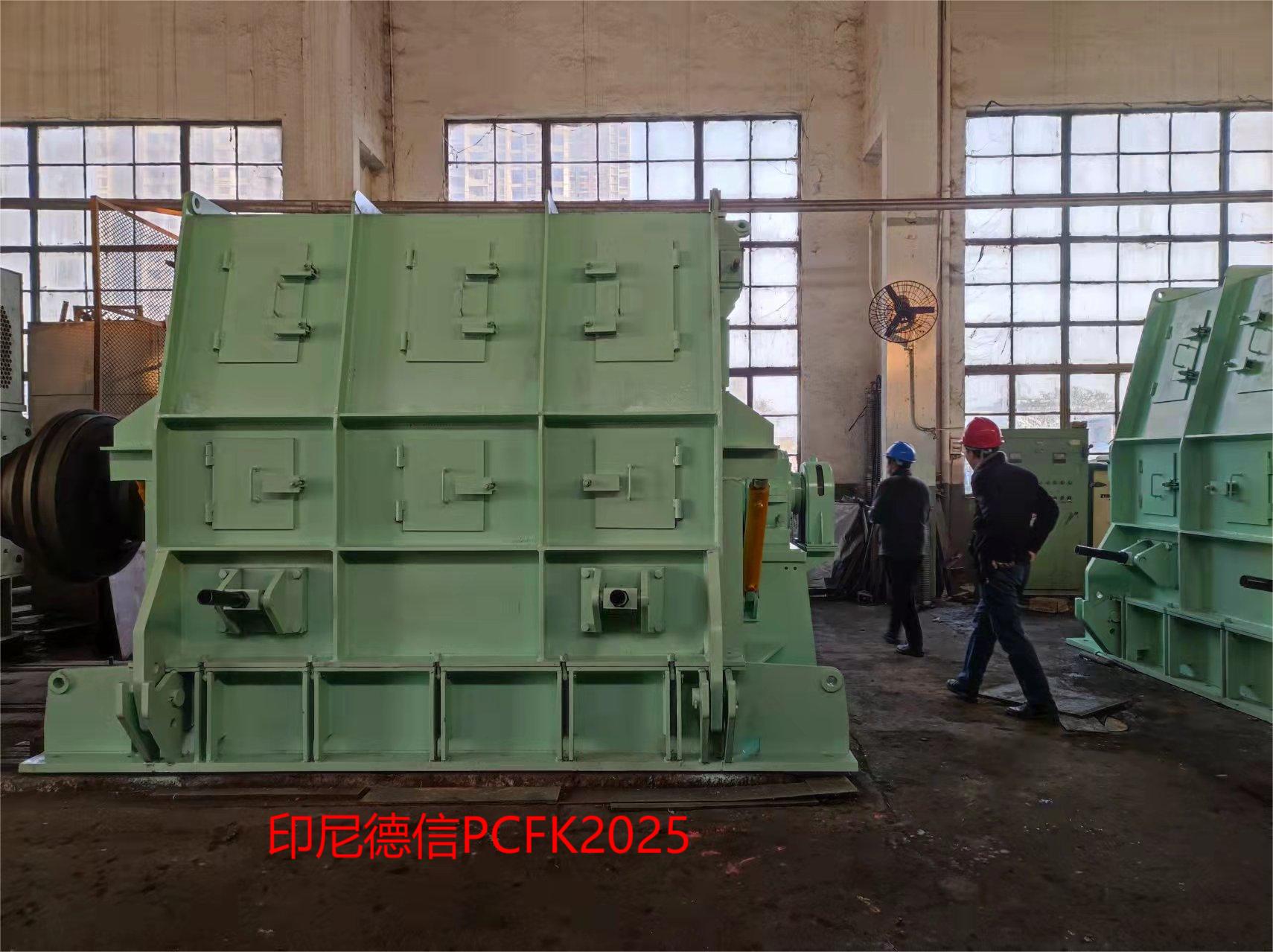

1.Model：PCFK-2025
2.Rotor length X length：f2000×2500（mm）
3.Max. feed size：80（mm）
4.Particle size for finishing：≤3（mm）
5.Capacity：500（t/h）
6.Power：1250KW
7.Overall size (LXWXH): 7874×4390×4530 mm
8.equipment weight: excluding engine: 62000 kg
Notes: The power shown in the table is obtained under the following conditions:
1. Material for crushing - coal.
2.The strength of the ore material against pressure is within 200MPa.
3. Surface water content within 14%.
4. Bulk density 0.8 t/m3.
5.Material supply along the entire length of the rotor is uniform and continuous.
