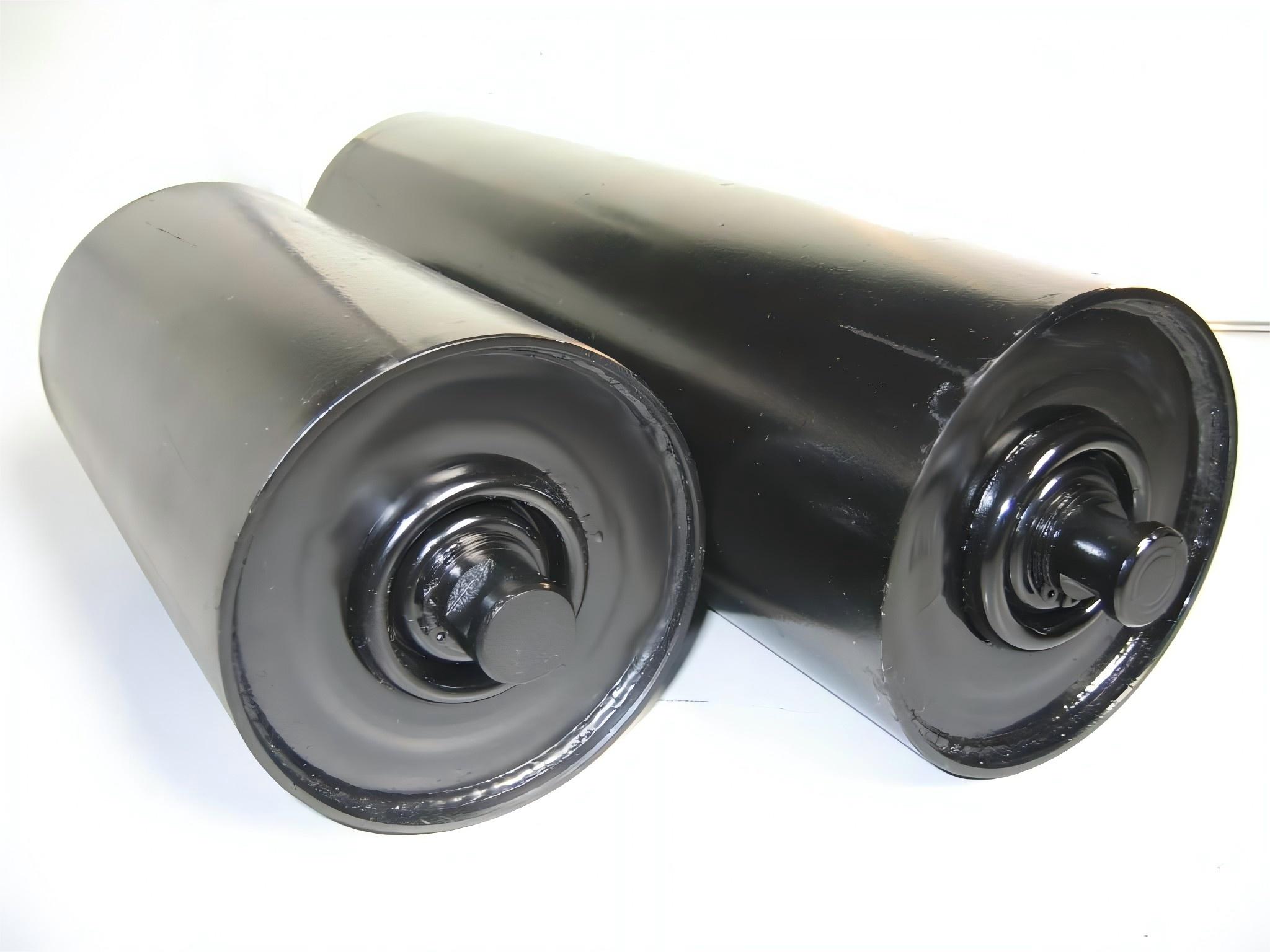

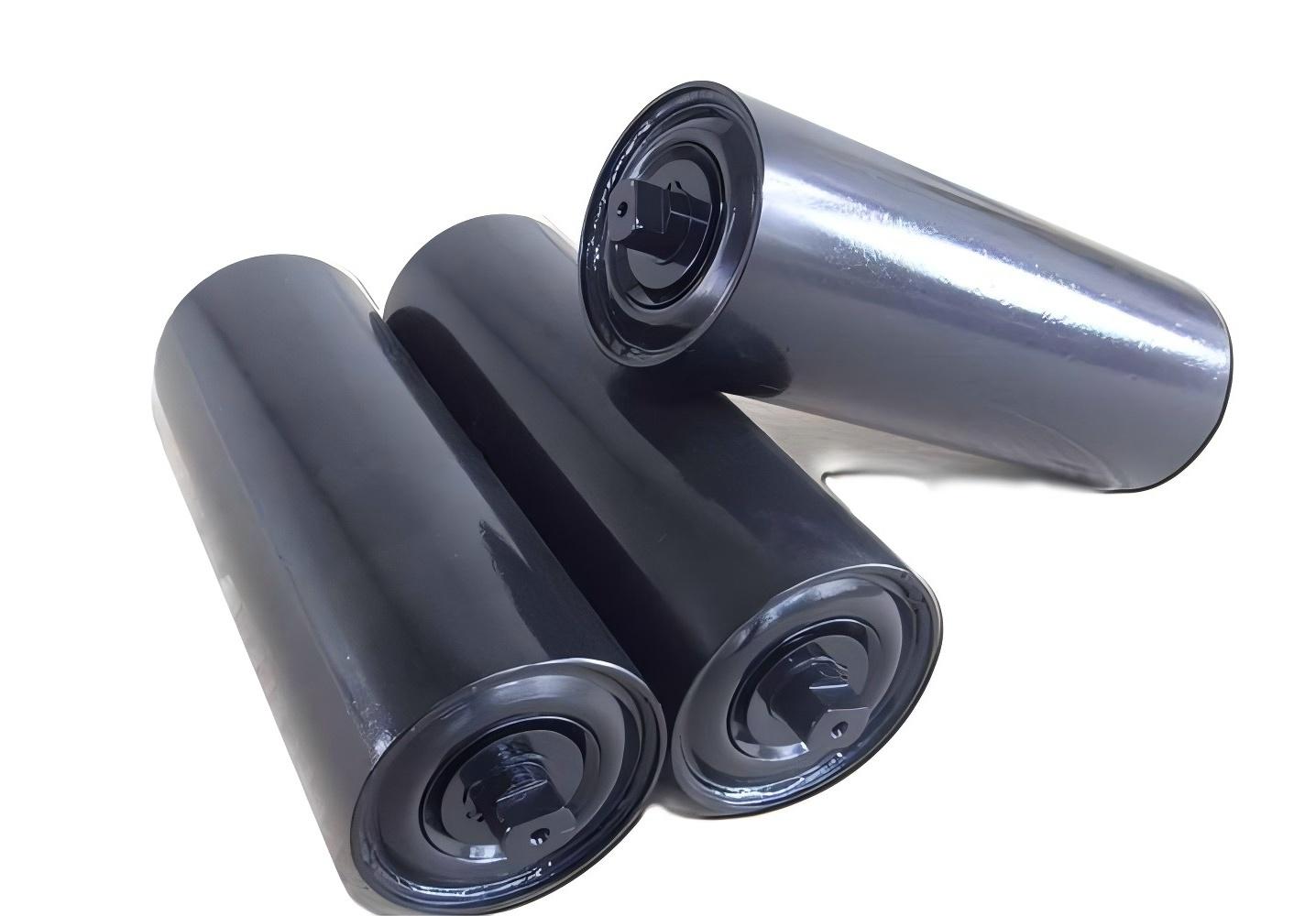

Universal roller

Main characteristics of the roller:

(1) Sealing properties must be good;

(2) It can bear a certain axial load;

(3) Stable operation, no blocking phenomena;

(4) High versatility and interchangeability;

(5) Ease of replacement;

(6)Easy to remove, durable maintenance, high reliability.

Contact Now E-Mail Telephone

Product Details

The roller is an important part of the conveyor belt, many kinds, large quantity, can support the conveyor belt and the weight of the material. It accounts for 35% of the total cost of the conveyor belt, creating more than 70% of the resistance, so the quality of the roller is especially important. It comes in both steel and plastic.

NO.	Number	Name	Weight	Size
1	ⅡGP1101	Universal roller	2.79	￠89×200-204
2	ⅡGP1102	Universal roller	3.06	￠89×250-204
3	ⅡGP1103	Universal roller	3.58	￠89×315-204
4	ⅡGP1105	Universal roller	5.24	￠89×465-204
5	ⅡGP1107	Universal roller	6.48	￠89×600-204
6	ⅡGP1109	Universal roller	7.87	￠89×750-204
7	ⅡGP1111	Universal roller	9.72	￠89×950-204
8	ⅡGP2103	Universal roller	4.46	￠108×315-204
9	ⅡGP2105	Universal roller	6.07	￠108×465-204
10	ⅡGP2111	Universal roller	11.27	￠108×950-204
11	ⅡGP1211	Universal roller	11.21	￠89×950-205
12	ⅡGP2203	Universal roller	5.07	￠108×315-205
13	ⅡGP2204	Universal roller	5.86	￠108×380-205
14	ⅡGP2205	Universal roller	6.89	￠108×465-205
15	ⅡGP2207	Universal roller	8.53	￠108×600-205
16	ⅡGP2208	Universal roller	9.74	￠108×700-205
17	ⅡGP2211	Universal roller	12.77	￠108×950-205
18	ⅡGP2212	Universal roller	13.99	￠108×1150-205
19	ⅡGP2213	Universal roller	15.62	￠108×1400-205
20	ⅡGP2304	Universal roller	6.23	￠108×380-305
21	ⅡGP2305	Universal roller	7.26	￠108×465-305
22	ⅡGP2306	Universal roller	8.05	￠108×530-305
23	ⅡGP2307	Universal roller	8.9	￠108×600-305
24	ⅡGP2308	Universal roller	10.11	￠108×700-305
25	ⅡGP2310	Universal roller	11.32	￠108×800-305
26	ⅡGP2311	Universal roller	13.44	￠108×950-305
27	ⅡGP2312	Universal roller	15.57	￠108×1150-305
28	ⅡGP2313	Universal roller	18.47	￠108×1400-305
29	ⅡGP2314	Universal roller	21.02	￠108×1600-305
30	ⅡGP2405	Universal roller	8.57	￠108×465-306
31	ⅡGP2406	Universal roller	9.47	￠108×530-306
32	ⅡGP2410	Universal roller	13.2	￠108×800-306
33	ⅡGP2413	Universal roller	21.49	￠108×1400-306
34	ⅡGP2414	Universal roller	24.26	￠108×1600-306
35	ⅡGP3204	Universal roller	7.84	￠133×380-205
36	ⅡGP3205	Universal roller	9.24	￠133×465-205
37	ⅡGP3207	Universal roller	11.48	￠133×600-205
38	ⅡGP3208	Universal roller	13.14	￠133×700-205
39	JKⅡGP3211	Universal roller	16.53	￠133×900-205
40	ⅡGP3212	Universal roller	18.23	￠133×1150-205
41	ⅡGP3213	Universal roller	24.61	￠133×1400-205
42	JKⅡGP3215	Universal roller	31.52	￠133×1800-205
43	JKⅡGP3216	Universal roller	34.88	￠133×2000-205
44	ⅡGP3304	Universal roller	8.21	￠133×380-305
45	ⅡGP3305	Universal roller	9.62	￠133×465-305
46	ⅡGP3306	Universal roller	10.7	￠133×530-305
47	ⅡGP3307	Universal roller	11.86	￠133×600-305
48	ⅡGP3308	Universal roller	13.51	￠133×700-305
49	ⅡGP3310	Universal roller	15.17	￠133×800-305
50	JKⅡGP3311	Universal roller	16.91	￠133×900-305
51	ⅡGP3312	Universal roller	20.97	￠133×1150-305
52	ⅡGP3313	Universal roller	24.99	￠133×1400-305
53	ⅡGP3314	Universal roller	28.44	￠133×1600-305
54	JKⅡGP3315	Universal roller	24.37	￠133×1800-305
55	JKⅡGP3316	Universal roller	35.26	￠133×2000-305
56	ⅡGP3405	Universal roller	11.34	￠133×465-306
57	ⅡGP3406	Universal roller	12.54	￠133×530-306
58	ⅡGP3410	Universal roller	17.48	￠133×800-306
59	ⅡGP3413	Universal roller	26.75	￠133×1400-306
60	ⅡGP3414	Universal roller	31.38	￠133×1600-306
61	ⅡGP4205	Universal roller	11.58	￠159×465-205
62	ⅡGP4208	Universal roller	16.52	￠159×700-205
63	ⅡGP4213	Universal roller	31.09	￠159×1400-205
64	ⅡGP4305	Universal roller	12.02	￠159×465-305
65	ⅡGP4306	Universal roller	13.84	￠159×530-305
66	ⅡGP4308	Universal roller	16.95	￠159×700-305
67	ⅡGP4310	Universal roller	19.06	￠159×800-305
68	ⅡGP4313	Universal roller	31.52	￠159×1400-305
69	ⅡGP4314	Universal roller	35.85	￠159×1600-305
70	ⅡGP4405	Universal roller	13.76	￠159×465-306
71	ⅡGP4406	Universal roller	15.23	￠159×530-306
72	JKIIGP4407	Universal roller	16.89	￠159×600-306
73	JKIIGP4408	Universal roller	18.52	￠159×670-306
74	JKIIGP4409	Universal roller	20.36	￠159×750-306
75	JKⅡGP4410	Universal roller	21.36	￠159×800-306
76	JKⅡGP4411	Universal roller	23.73	￠159×900-306
77	JKⅡGP4412	Universal roller	26.05	￠159×1000-306
78	JKⅡGP4413	Universal roller	28.33	￠159×1100-306
79	JKⅡGP4414	Universal roller	39.51	￠159×1600-306
80	JKⅡGP4415	Universal roller	44.09	￠159×1800-306
81	JKⅡGP4416	Universal roller	48.83	￠159×2000-306
82	JKⅡGP4417	Universal roller	53.38	￠159×2200-306
83	JKⅡGP4418	Universal roller	60.24	￠159×2500-306
84	JKⅡGP4510	Universal Roller	23.54	￠159×800-307
85	JKⅡGP4511	Universal Roller	26.02	￠159×900-307
86	JKⅡGP4512	Universal Roller	28.50	￠159×1000-307
87	JKⅡGP4513	Universal Roller	30.97	￠159×1100-307
88	JKⅡGP4514	Universal Roller	34.69	￠159×1250-307
89	JKⅡGP4515	Universal Roller	48.34	￠159×1800-307
90	JKⅡGP4516	Universal Roller	53.29	￠159×2000-307
91	JKⅡGP4517	Universal Roller	58.25	￠159×2200-307
92	JKⅡGP4518	Universal Roller	65.69	￠159×2500-307
93	JKⅡGP4607	Universal Roller	20.05	￠159×600-308
94	JKⅡGP4608	Universal Roller	22.40	￠159×670-308
95	JKⅡGP4609	Universal Roller	24.57	￠159×750-308
96	JKⅡGP4610	Universal Roller	25.96	￠159×800-308
97	JKⅡGP4611	Universal Roller	28.64	￠159×900-308
98	JKⅡGP4612	Universal Roller	31.35	￠159×1000-308
99	JKⅡGP4613	Universal Roller	34.07	￠159×1100-308
100	JKⅡGP4614	Universal Roller	38.17	￠159×1250-308
101	JKⅡGP4615	Universal Roller	53.05	￠159×1800-308
102	JKⅡGP4616	Universal Roller	58.47	￠159×2000-308
103	JKⅡGP4617	Universal Roller	63.90	￠159×2200-308
104	JKⅡGP4618	Universal Roller	72.07	￠159×2500-308
105	JKIIGP5609	Universal Roller	29.82	￠194×750-308
106	JKIIGP5610	Universal Roller	31.48	￠194×800-308
107	JKIIGP5613	Universal Roller	41.46	￠194×1100-308
108	JKIIGP5614	Universal Roller	46.45	￠194×1250-308
109	JKIIGP5617	Universal Roller	78.07	￠194×2200-308
110	JKIIGP5618	Universal Roller	88.05	￠194×2500-308
