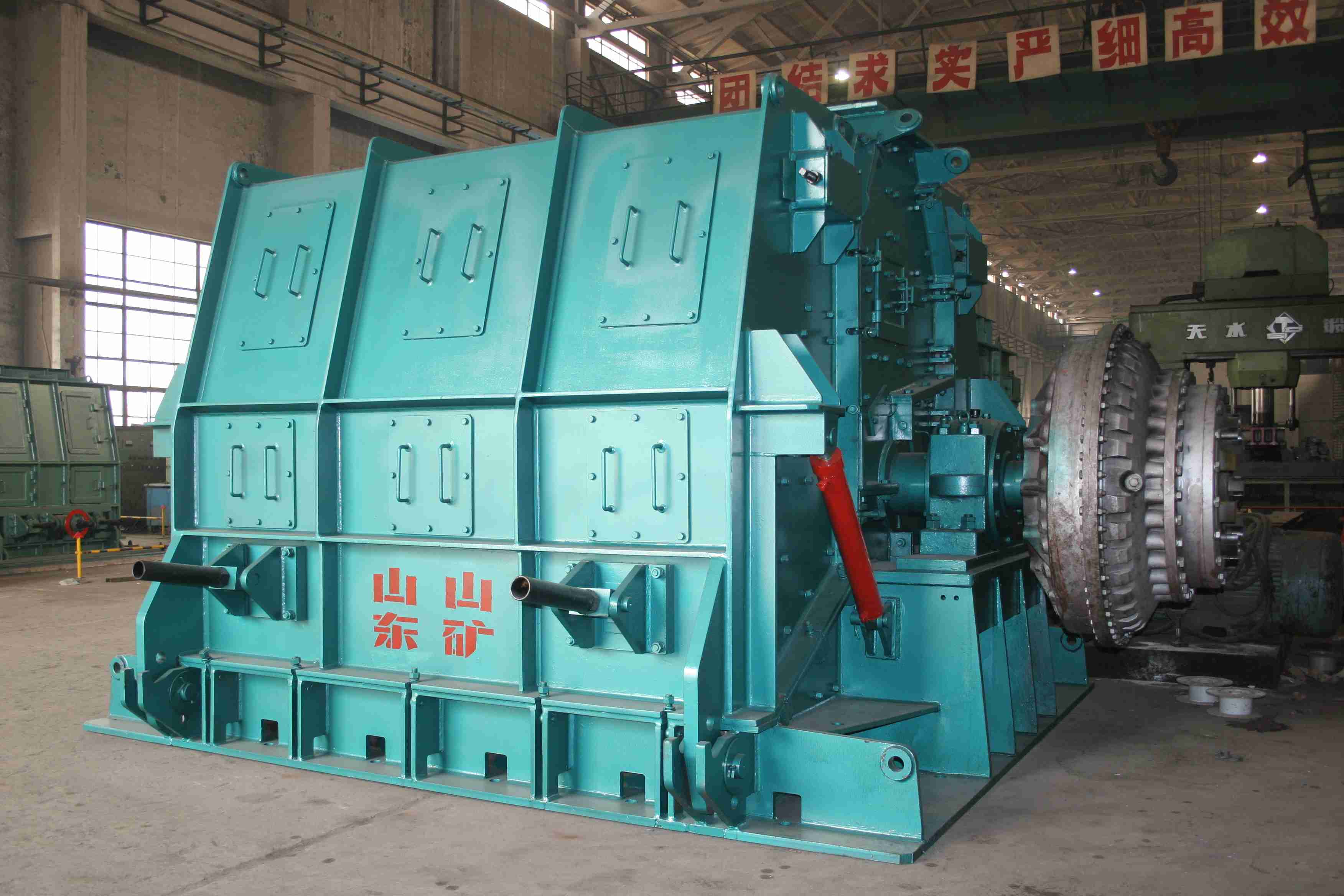

Reversible rotary hammer crusher 1600×1800 mm
This machine is suitable for crushing brittle materials with medium hardness, such as raw coal and other brittle materials, etc. The inlet particle size is 80mm and the outlet is 8mm, of which <3mm accounts for 90%. The incoming and outgoing particles can be adjusted according to the user's conditions and requirements, and the equipment itself has this function. This machine is the best choice for circulating fluidized bed boilers, coke plants and steel mills.
The reversible hammer crusher is a mechanical equipment specially designed for crushing brittle materials of medium hardness. This type of crusher is especially suitable for processing materials such as coal and other brittle materials. Thanks to its design and functionality, it copes well with the crushing process, effectively crushing the material to the desired size.
1.This machine is suitable for crushing medium-hard brittle materials such as raw coal and other brittle materials.
2.Rotor diameter：1600（mm）
3.rotor length：1800（mm）
4.Raw material particle size：≤80（mm）
5.Finishing particle size：≤8~≤3（mm）
6.Capacity：380～400（t/h）
7.Power：560～710KW
In particular, the size of the loading material in this equipment can reach 80 millimeters, while the size of the discharged material can be controlled at 8 millimeters. In discharge, the part with particle size less than 3 millimeters accounts for up to 90% of the total amount, which suggests that the crushing effect is very ideal and can meet the needs of most industrial applications. In addition, the dimensions of the loaded and unloaded material are not fixed, but can be flexibly adjusted depending on the actual production conditions and the specific requirements of the user. The equipment itself is equipped with a customization function, allowing users to easily adjust the crushing size according to actual needs, achieving the best crushing effect.
With excellent performance and a wide range of applications, this reversible hammer crusher has become an ideal choice for industrial applications such as circulating fluidized bed boilers, coke plants and steel mills. These industries typically require the processing of large quantities of fragile materials, and this equipment can effectively handle this task, increasing production efficiency and reducing production costs. Therefore, the reversible hammer crusher has significant application value and market prospects in the field of industrial crushing.
