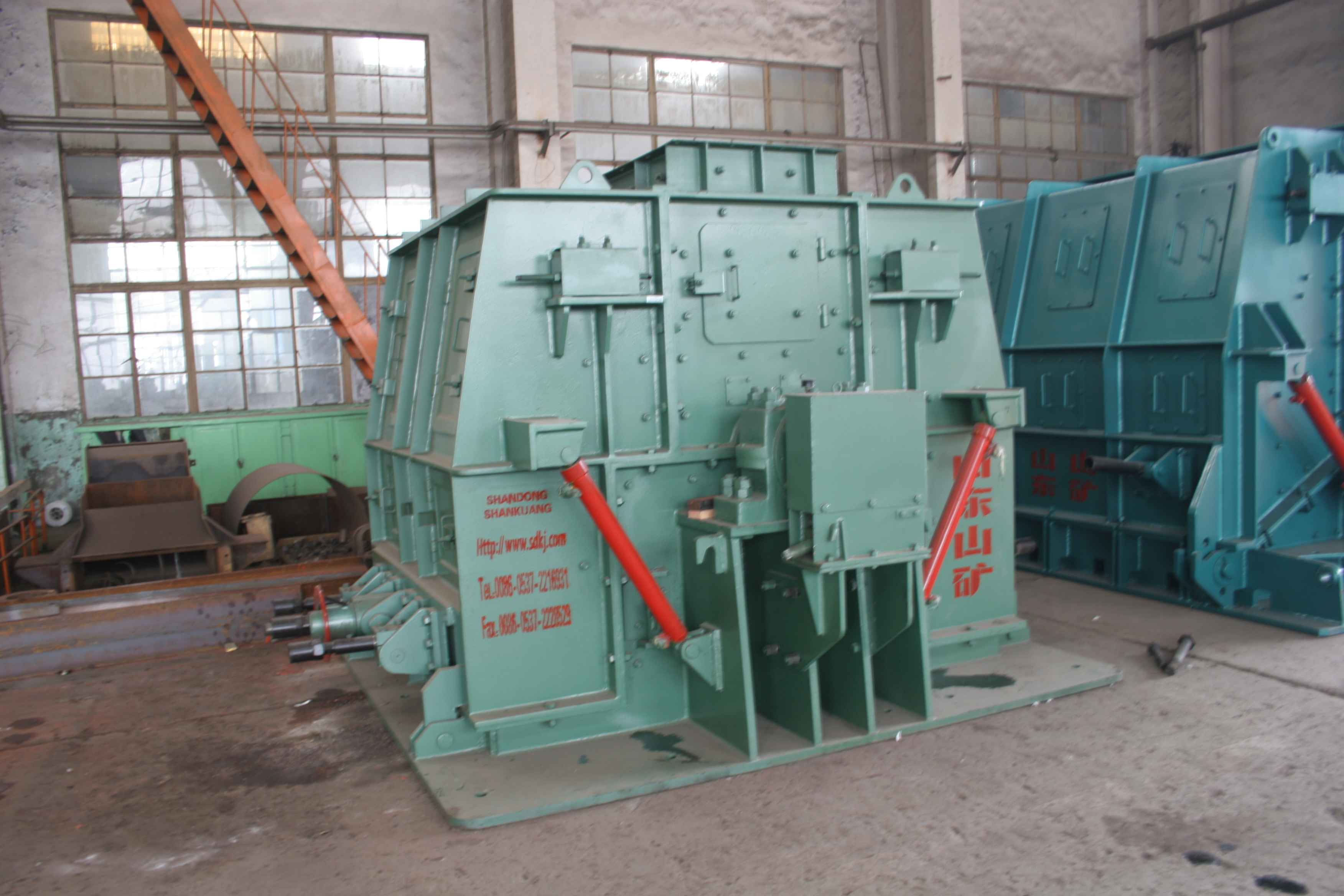

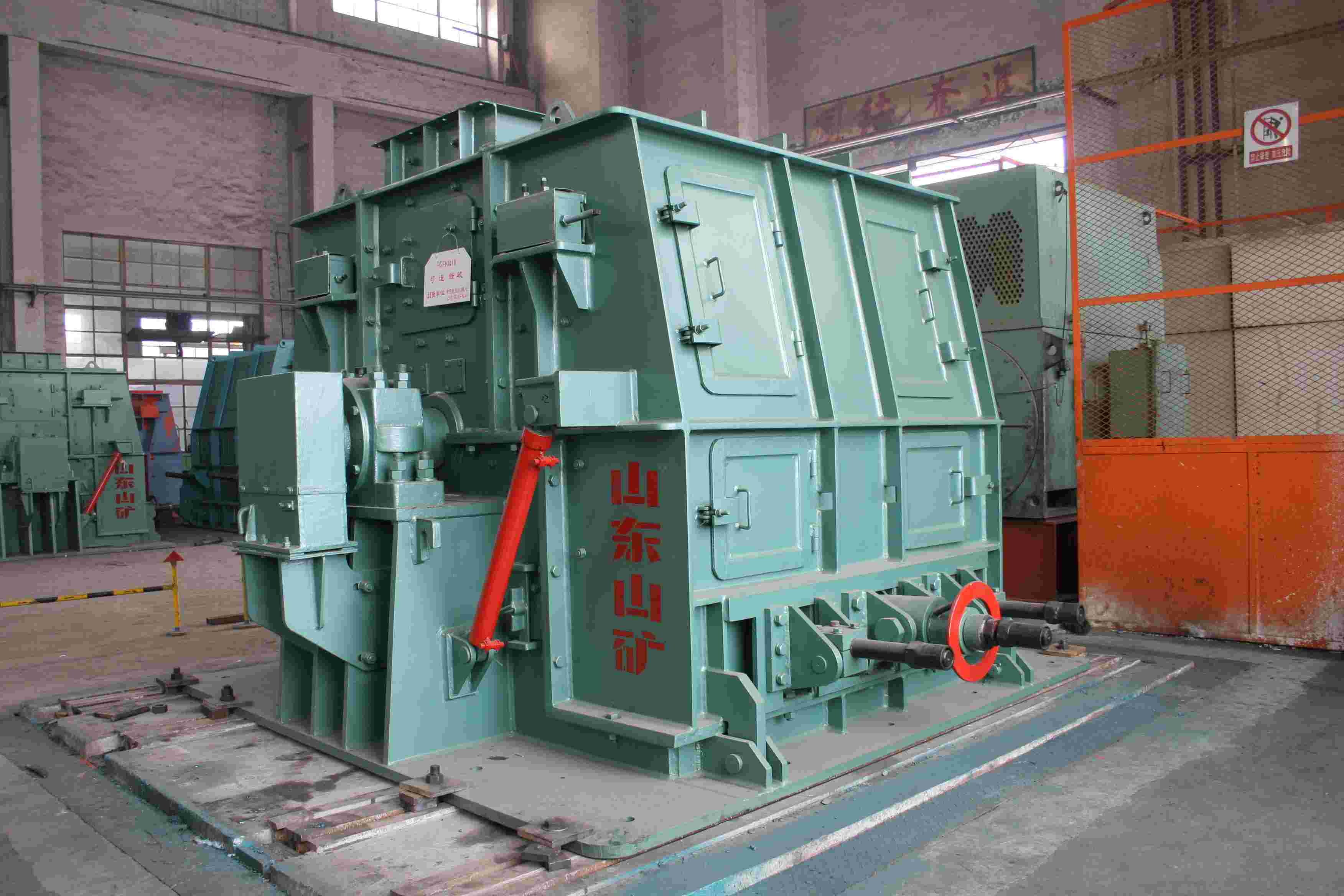

Reversible rotary hammer crusher 1600×1600 mm
This machine is suitable for crushing brittle materials with medium hardness, such as raw coal and other brittle materials, etc. The inlet particle size is 80mm and the outlet is 8mm, of which <3mm accounts for 90%. The incoming and outgoing particles can be adjusted according to the user's conditions and requirements, and the equipment itself has this function. This machine is the best choice for circulating fluidized bed boilers, coke plants and steel mills.
The main shaft of the reversible counterattack hammer crusher is made of high quality alloy forged steel, and the material and heat treatment technology have been highly developed in the application of large surface shaft parts for decades. The hammer heads are integrated, saving a large amount of wear-resistant alloy materials and reducing production costs. The hammer head is connected to the reinforcement, and the width of the impact part is increased, which improves the strength of the hammer head, changes the phenomenon of the original model, and greatly improves the safety and service life of the hammer head. Meanwhile, the hammer head is arranged in a spiral. This is very useful for reducing air volume and preventing congestion.
1.This machine is suitable for crushing medium-hard brittle materials such as raw coal and other brittle materials.
2.Rotor diameter：1600（mm）
3.rotor length：1600（mm）
4.Feed particle size：≤80（mm）
5.Finishing particle size：≤8~≤3（mm）
6.Capacity：220～250（t/h）
7.Power：450～560KW
