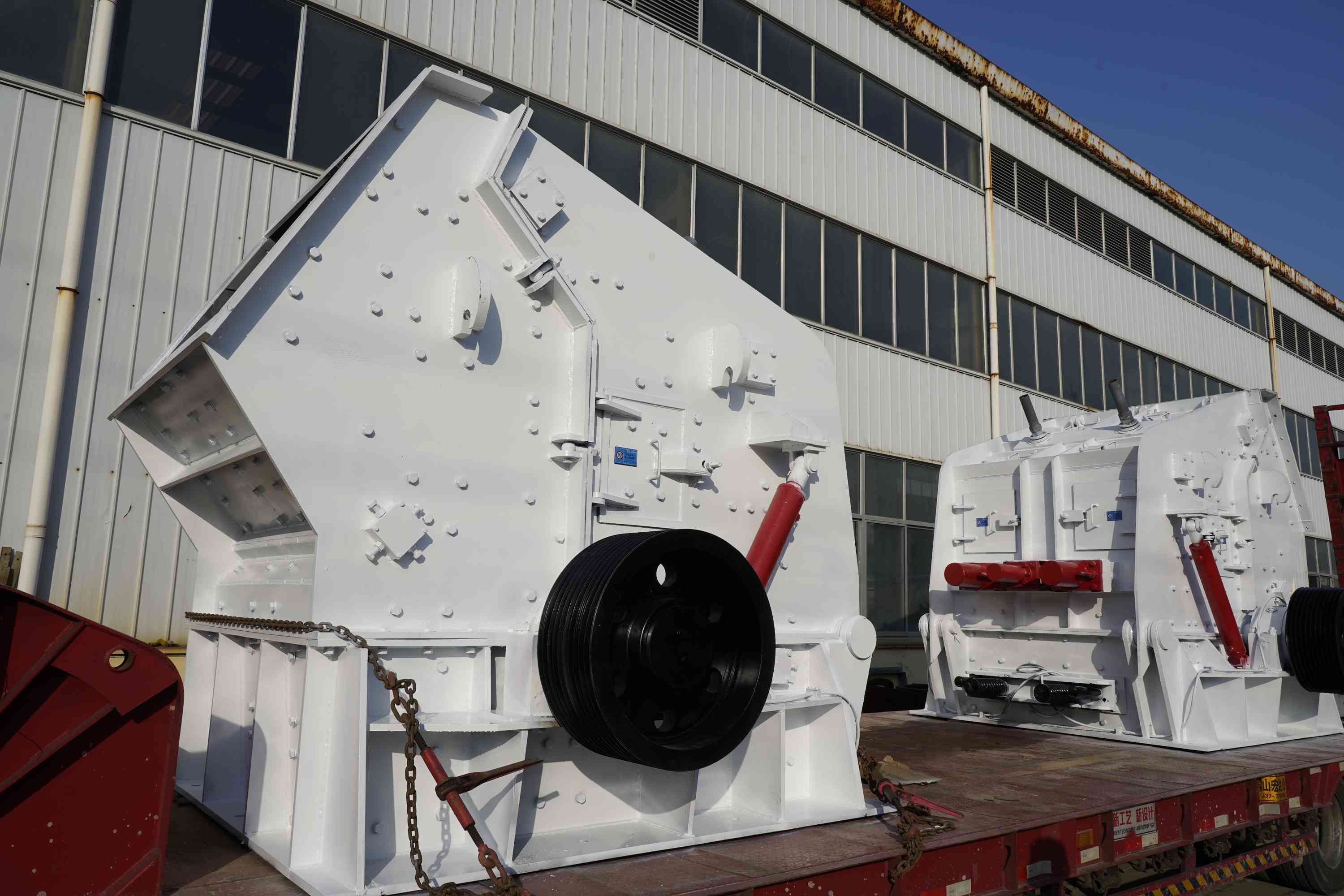

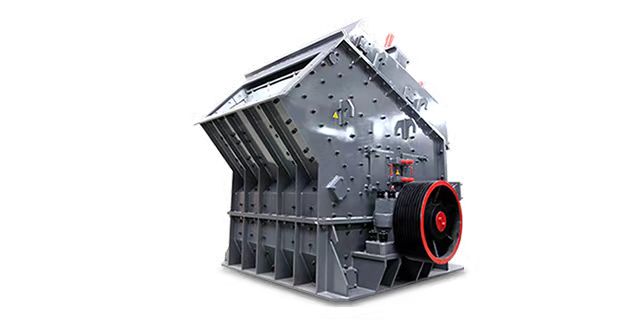

Durability Impact crusher 1000×700 mm
Durable Impact Crusher is a new type of crusher that has been optimized by introducing the latest technology from home and abroad. It is suitable for crushing materials with compressive strength <350MPa. It is widely used for crushing rocks and construction waste (such as brick blocks, concrete blocks, etc.) in projects such as roads, railways and high-strength dams. This machine has simple structure, large crushing ratio, low energy consumption, high productivity, materials are crushed into cubic spherical particles, with very few flakes and stripes.
The strength ratio of the impact crusher is large, about 40, up to 150. The size of the loaded material into the impact crusher is up to 2 m3. The particle size of the product is less than 25mm, which can be directly put into the mill, and the particle size of the finely crushed counter-attack crusher product is less than 3mm. Choosing a counter-attack crusher can reduce the number of broken segments.
1.Model：PF-1007ii
2.Rotor length X length：f1000×700（mm）
3.Max. feed size：300（mm）
4.Feed particle size：400×730（mm）
5.Finish particle size：≤20（mm）
6.Capacity：30~60（t/h）
7.Power：75KW
8.Overall size(LXWXH): 2500×2100×1850mm
9.equipment weight: excluding engine: 12700 kg
