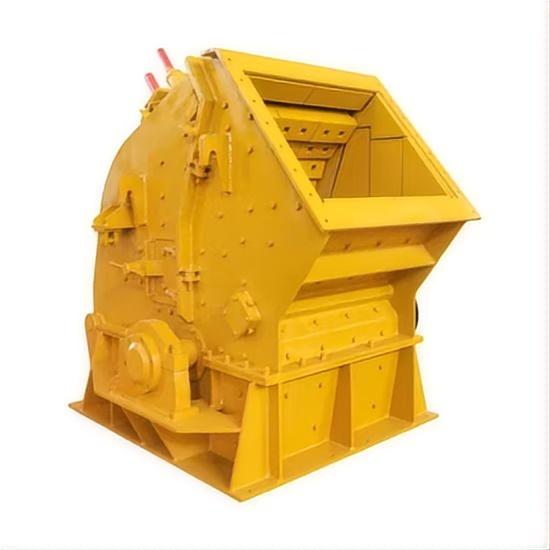

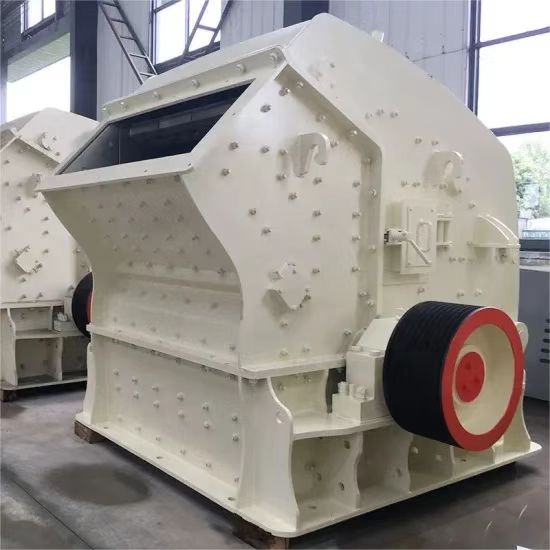

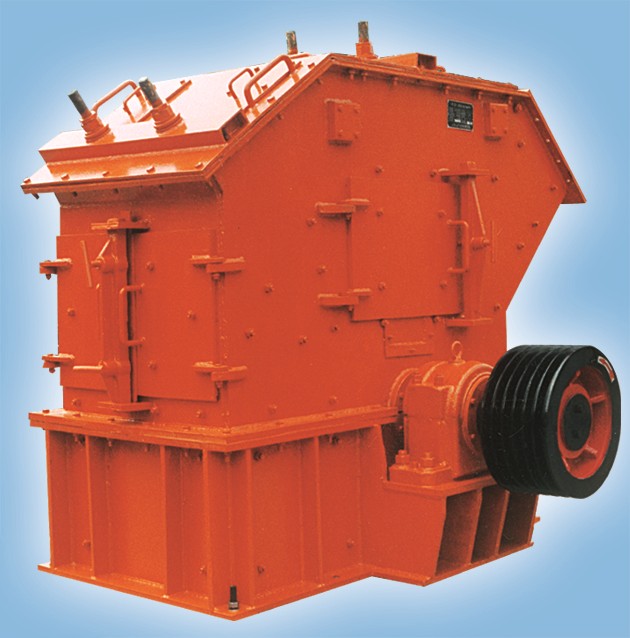

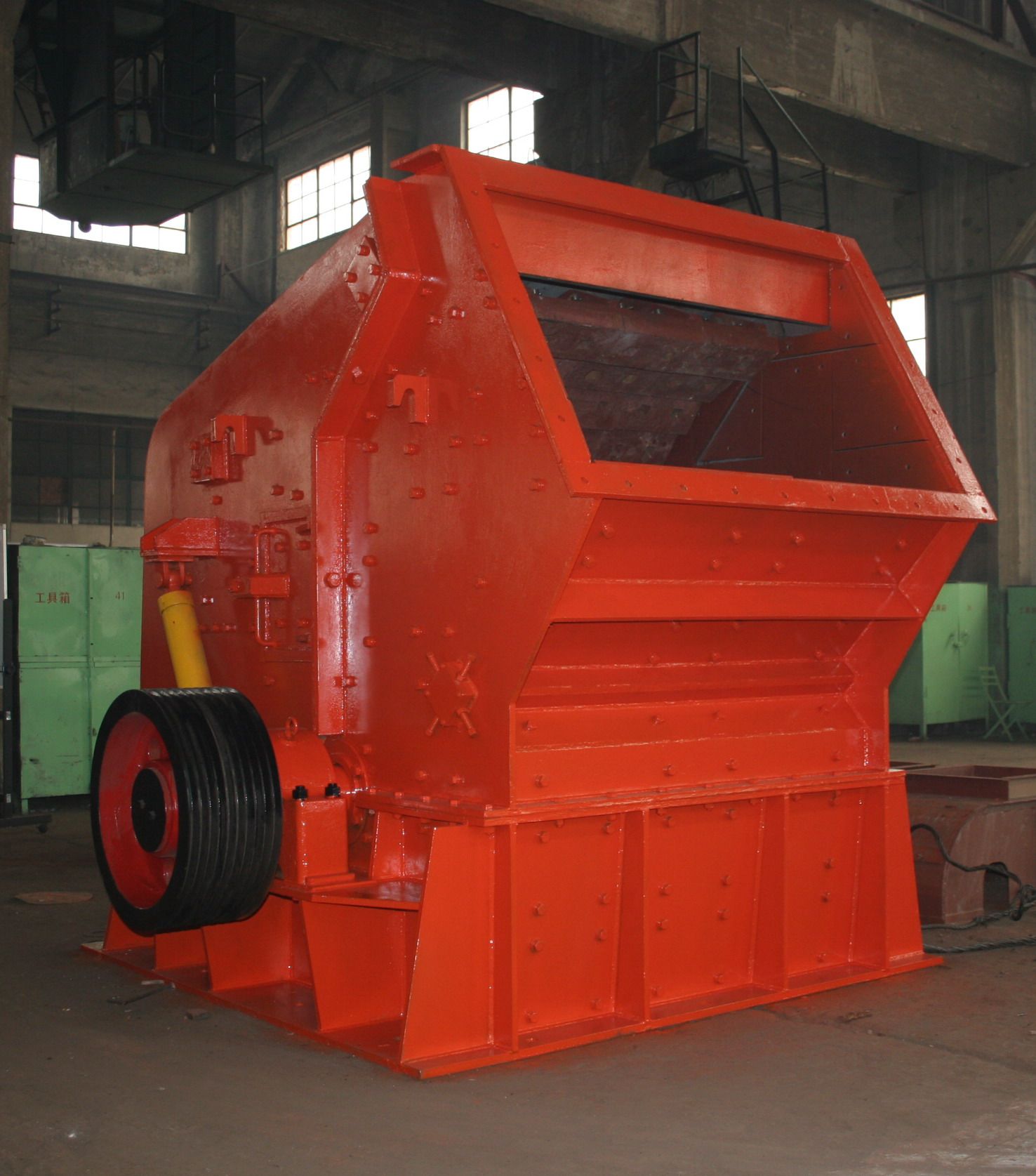

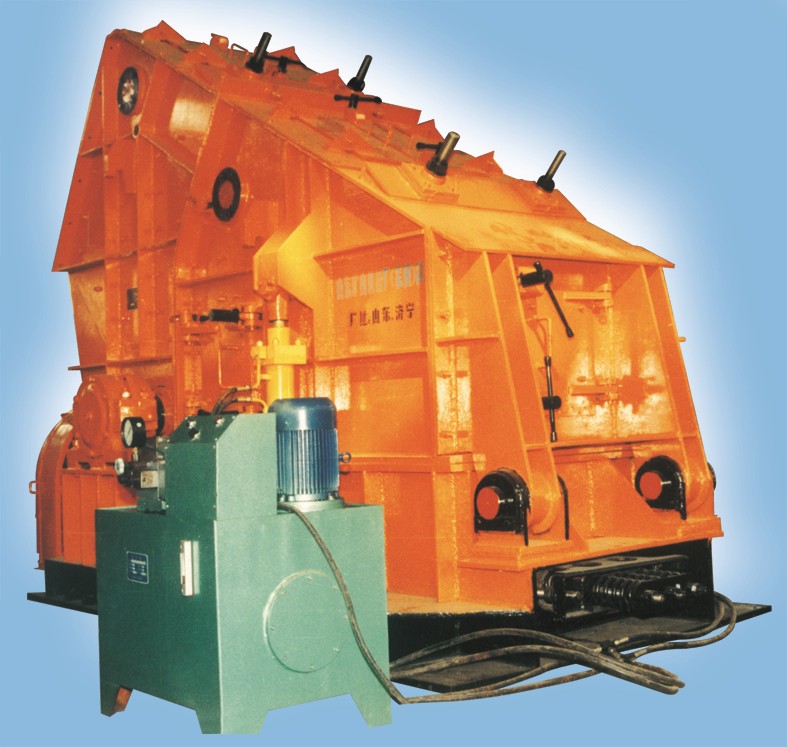

Impact crusher
The impact crusher is widely used in energy, coal, metallurgy, chemical, building materials and other industries, and has the following features:
1.High crushing ratio. The crushing ratio of the impact crusher can reach more than 50.
2.Good product particles. Using hydraulic adjustment and protection of the mold structure to ensure the uniformity of material particles and reduce the phenomenon of super particles. The probability of particles in cubic form is high and the percentage of needles in the crushed product of the crusher may be less than 10%.
3.The hammer adopts composite casting technology with wear-resistant alloy materials, which has greatly improved wear resistance, impact resistance and hardness.
Impact crusher has the advantages of simple structure, high brcaking ratio, low energy consumption, high degree granules discharged even and rarely over breaking phenomenon, maintain convenient, granule degree be large adjustment range and can be broken selected. They are used in cement, refractory materials in transportation (railroad, highway and bridges), coal, metallurgy and energy construction ctc. In industry for crushing medium and fine materials such as stone, limestone, clinker, slag, coke, coal, etc. PF-Ⅱ, PF-Ⅲ type impact crushers have the following characteristics: hard rock crushing, wear-resistant plate hammer, manual screw opening or hydraulic opening, special impact plate, etc. and are widely used to destroy rocks of high hardness, of which the strength against pressure reaches 350 MPa.
PF Single Rotor Impact Crusher: Characteristics
Commore type：PF0504、PF0707、PF1007、PF1210
Gate type: PF08081, PF1007, PF1010, PF1210, PF1214
This series of products is used for crushing medium hard materials such as limestone, clinker
with the advantages of large production capacity and small output grain size.
Type for coal：PFD0707、PFD1108、PFD1112、PFD1414、PFD1418、PFD1818
This series is mainly used in power plants and coal mines for coal crushing
Coke type: PFJ0707, PFJ1108, PFJ1112
This series is mainly used in the coke industry for breaking brittle materials with low hardness such as coke, coal, etc.
Specifics of 2PF Double Rotor Impact Crusher：
2PF1010、2PF1212
