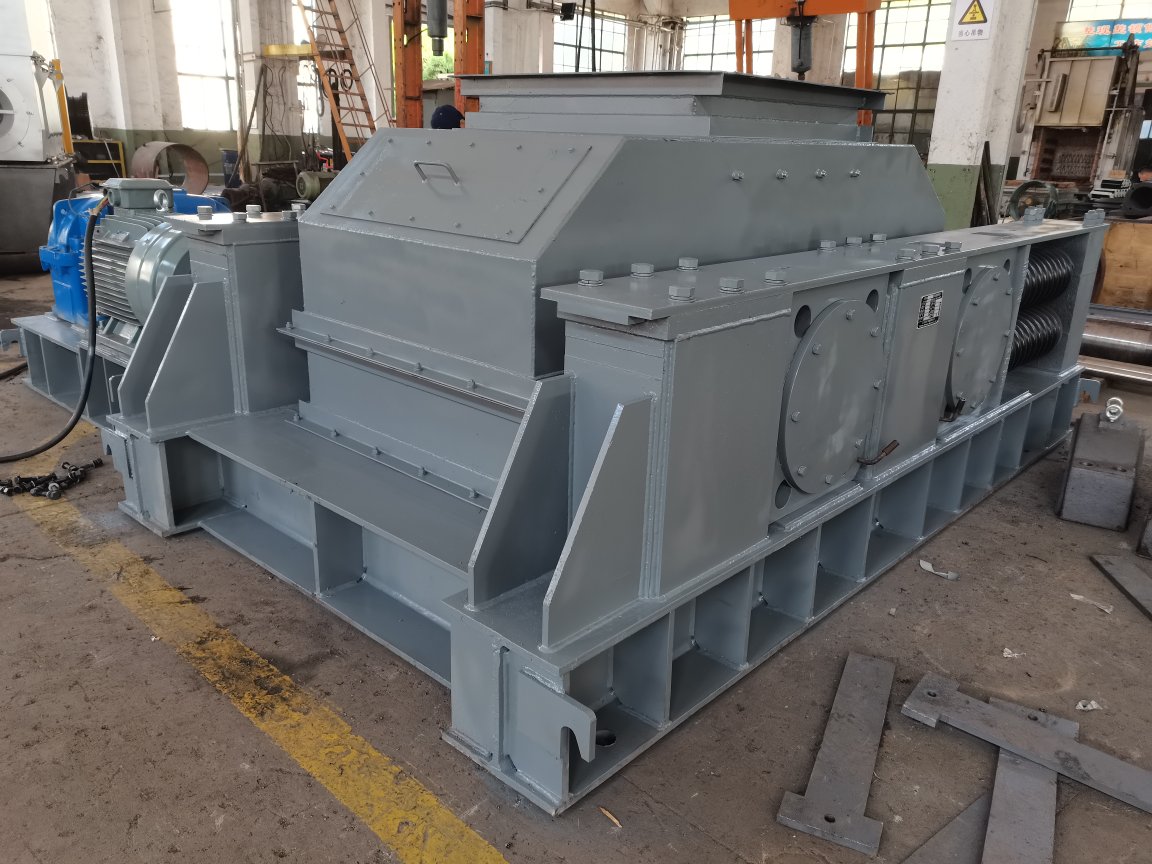

Roller crusher with two teeth 900×900 mm
The double tooth roller crusher is designed for crushing hard coal in a coal mine or beneficiation plant, and can also be used for crushing other medium and low hardness brittle materials. Hydraulic adjustment, central lubrication of toothed roller bearings. Tooth shape design optimization, tensile shear crushing selection, high efficiency and low consumption, uniform grain yield. The machine also has the advantages of small volume, low noise, simple structure and convenient maintenance.
Double tooth roller crusher, the shape of the roller surface can be divided into thick and thin toothed roller, can be adjusted according to the size of the material needed for production, suitable for brittle and soft materials. Double teeth roller crusher is suitable for sinter, coal, cement, silicate, glass, ceramics and other industries, suitable for crushing brittle materials below medium hardness, mainly used for fine ore crushing operation.
Name |
Parameter |
|
Rotor length X（mm） |
Φ900×900 |
|
Max. feed size（mm） |
≤800 |
|
Change the size of the unloading gate（mm） |
≤150 |
|
Capacity（m³/h） |
125-180 |
|
Engine |
Type |
|
Power（KW） |
30 |
|
revolution（r/min） |
37.5 |
|
Size(L*W*H)（mm） |
2900×4345×1365 |
|
Equipment weight (without engine)（Kg） |
13270 |
|
