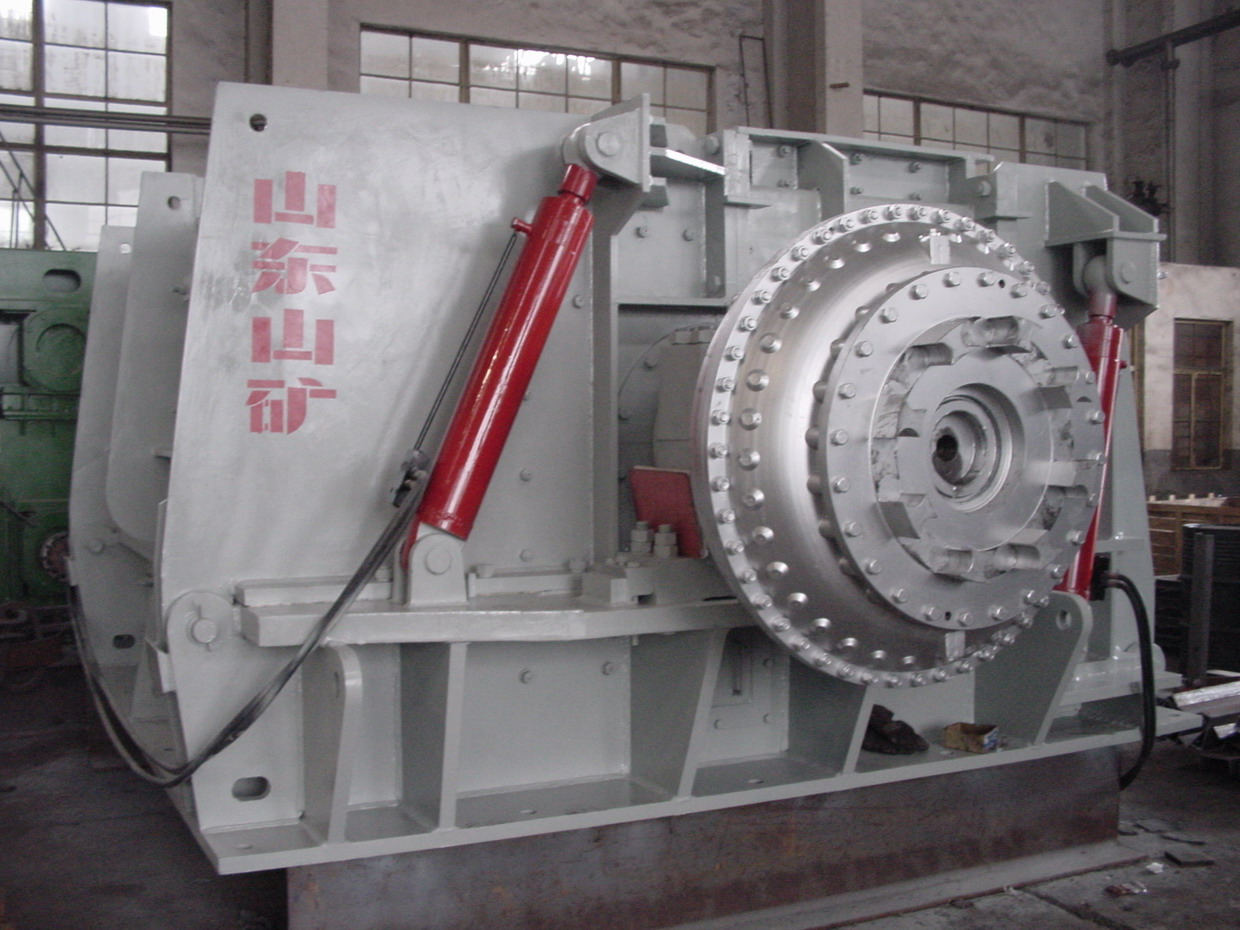

800T Heavy Duty Ring Hammer Crusher
Heavy duty ring hammer crusher is a new product designed, suitable for power plant coal crushing, large output, uniform particle size, hydraulic body opening, convenient maintenance, reliable operation. With air volume regulator, the input changes from exhaust air to absorption air, can concentrate dust removal, prevent pollution. Remove iron, wood and other debris, low power consumption, low noise.
The heavy duty ring hammer crusher is suitable for crushing coal in power plants, with large capacity, uniform discharge particle size, hydraulic opening of the housing, and convenient maintenance. It can eliminate iron, wood and other debris, mainly composed of body, rotor, screen plate support, coaxial mechanism, etc., suitable for crushing raw coal, coal gangue, limestone and other hard brittle materials, the output is large, suitable for large thermal power plant and coal mill supporting use.
1.Heavy duty ring hammer crusher is a new product designed, suitable for coal crushing power plant, large capacity, up to 200-2000T/H.
2.Rotor diameter：1200（mm）
3.rotor length：3591（mm）
4.Feed particle size：≤400（mm）
5.Finishing particle size：≤25（mm）
6.Capacity：800（t/h）
7.Power：450KW
8.Overall size(LXWXH): 6315×3460×1950mm
9.equipment weight: excluding engine: 34500 kg
