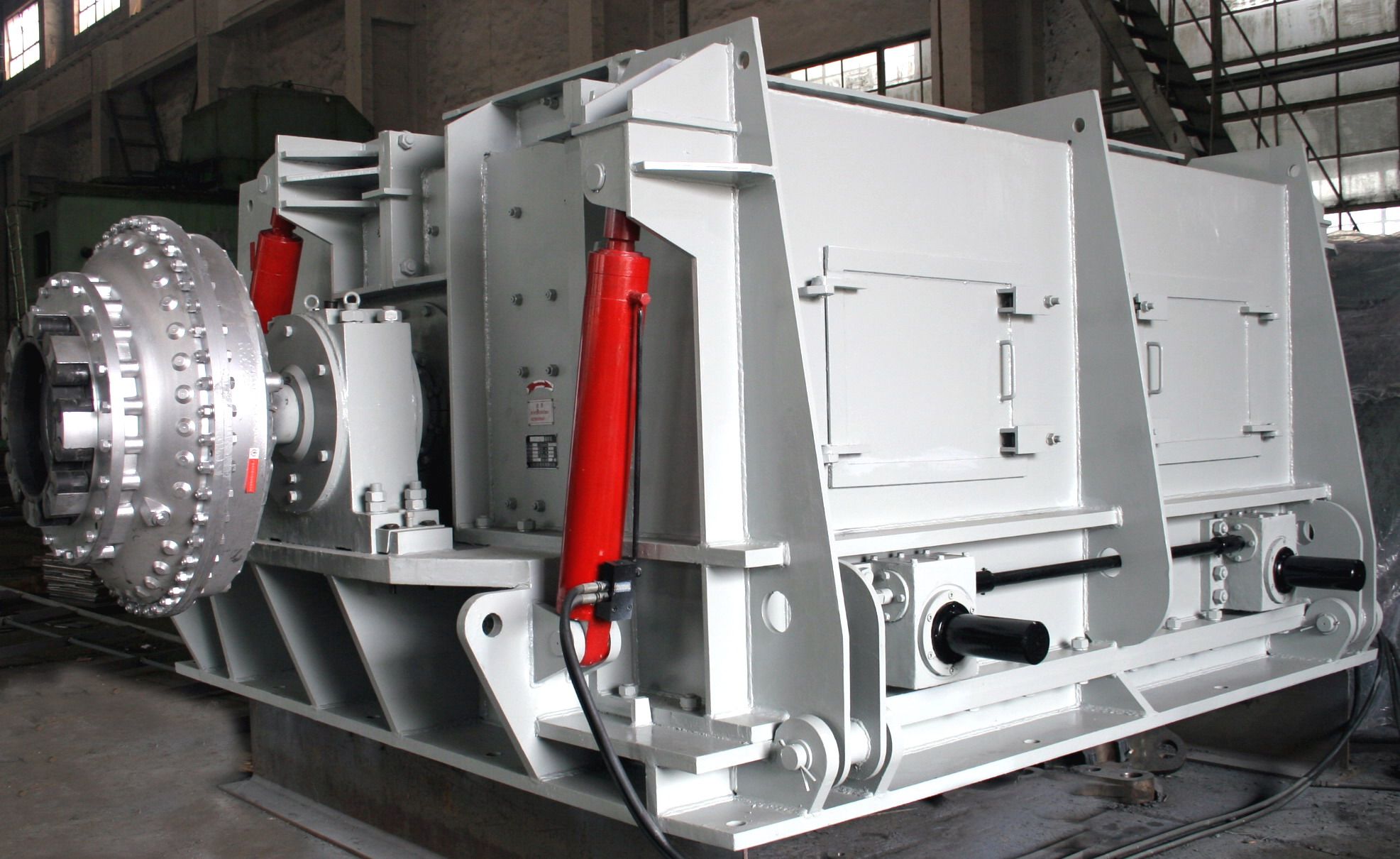

1000T Heavy Duty Ring Hammer Crusher
Heavy duty ring hammer crusher is a new product designed, suitable for power plant coal crushing, large output, uniform particle size, hydraulic body opening, convenient maintenance, reliable operation. With air volume regulator, the input changes from exhaust air to absorption air, can concentrate dust removal, prevent pollution. Remove iron, wood and other debris, low power consumption, low noise.
The heavy ring hammer crusher is an efficient crushing equipment, especially suitable for crushing various medium-hard brittle materials such as limestone, coal, etc. The working principle is that the rotor is rotated at high speed by the motor, so that the material in the crushing cavity is broken by hitting the hammer head at high speed.
1.Heavy duty ring hammer crusher is a new product designed, suitable for coal crushing power plant, large capacity, up to 200-2000T/H.
2.Rotor diameter：1200（mm）
3.rotor length：4143（mm）
4.Feed particle size：≤400（mm）
5.Finishing particle size：≤25（mm）
5.Productivity：1000（t/h）
6.Power：560KW
7.Overall size(LXWXH): 6915×3460×1950mm
8.equipment weight: excluding engine: 38250 kg
