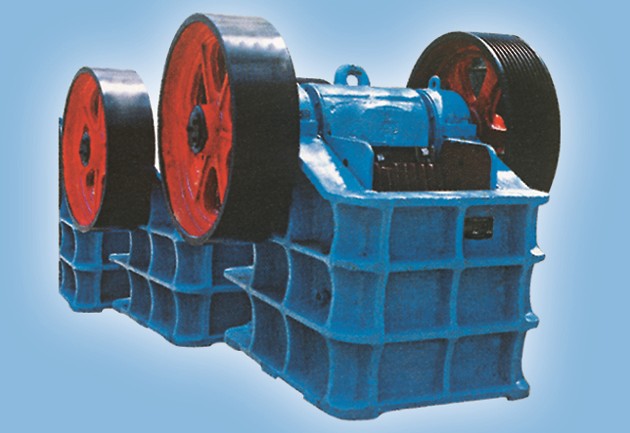

Jaw crusher 250×400 mm
The 250×400mm jaw crusher is suitable for ore and rock no larger than 210mm, and the compressive strength of finely crushed material does not exceed 250Mpa. It has the advantages of simple structure, reliable performance, convenient operation and safe use. Widely used in building materials, metallurgy, chemical industry, mining, road construction and other industries.
The jaw crusher, called jaw breaker, is composed of two jaw plates of dynamic Hubei and static jaw, which simulate the movement of animal jaw and complete the material crushing operation. It is widely used in mining, metallurgy, construction, highway, railway, water conservation and chemical industries, and the compressive strength of crushed materials is 250 Mpa. Jaw crusher is mainly used as large and medium crusher in mining, construction materials, infrastructure and other departments.
Name |
Parameter |
|
Rotor length X（mm） |
Φ250×400 |
|
Max. feed size（mm） |
≤210 |
|
Change the size of the unloading gate（mm） |
20～80 |
|
Capacity（t/h） |
3～12 |
|
Engine |
Type |
Y180L—6 |
Power（KW） |
15 |
|
revolution（r/min） |
970 |
|
Size(L*W*H)（mm） |
1430×1310×1336 |
|
Machine weight（Kg） （excluding engine） |
2750 |
|
