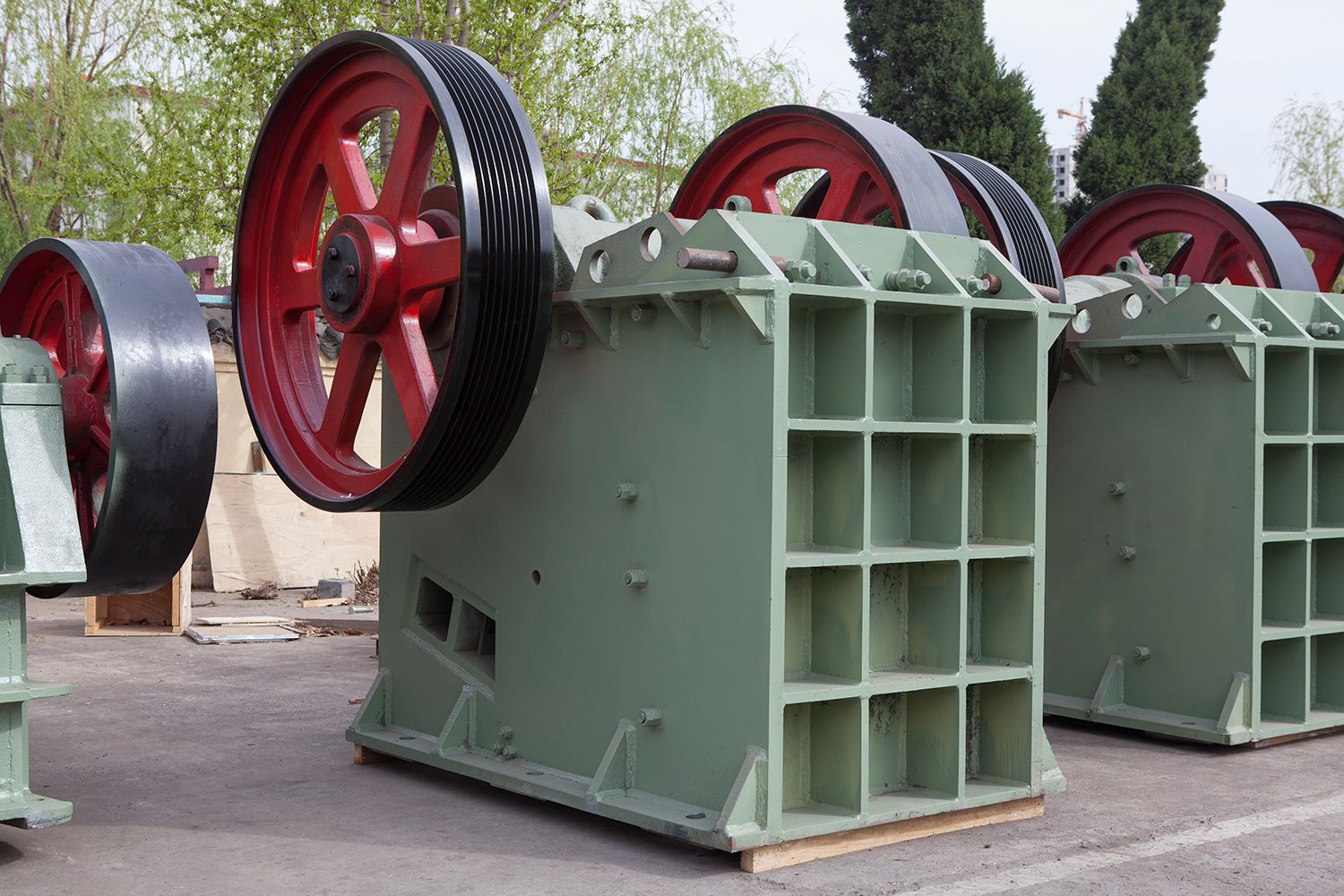

Jaw crusher 500×750 mm
The 500×750 mm jaw crusher is suitable for ore and rock with fine crushing of raw material particles no more than 425 mm, and the compressive strength of the finely crushed material does not exceed 250 MPa. It has the advantages of simple structure, reliable performance, convenient operation and safe use. Widely used in building materials, metallurgy, chemical industry, mining, road construction and other industries.
Jaw crusher can be divided into three types according to the width of the inlet: large, medium and small. The inlet width of large machines is more than 600mm, the inlet width of medium machines is in the range of 300-600mm, while the inlet width of small machines is less than 300mm. This classification allows the jaw crusher to be adapted to application scenarios with different size and production requirements.
Name |
Parameter |
|
Rotor length X（mm） |
Φ500×750 |
|
Max. feed size（mm） |
≤425 |
|
Change the size of the unloading gate（mm） |
50～100 |
|
Capacity（t/h） |
15～65 |
|
Engine |
Type |
Y280M—6 |
Power（KW） |
55 |
|
revolution（r/min） |
980 |
|
Size(L*W*H)（mm） |
2035×1921×2200 |
|
Machine weight（Kg） （excluding engine） |
11000 |
|
