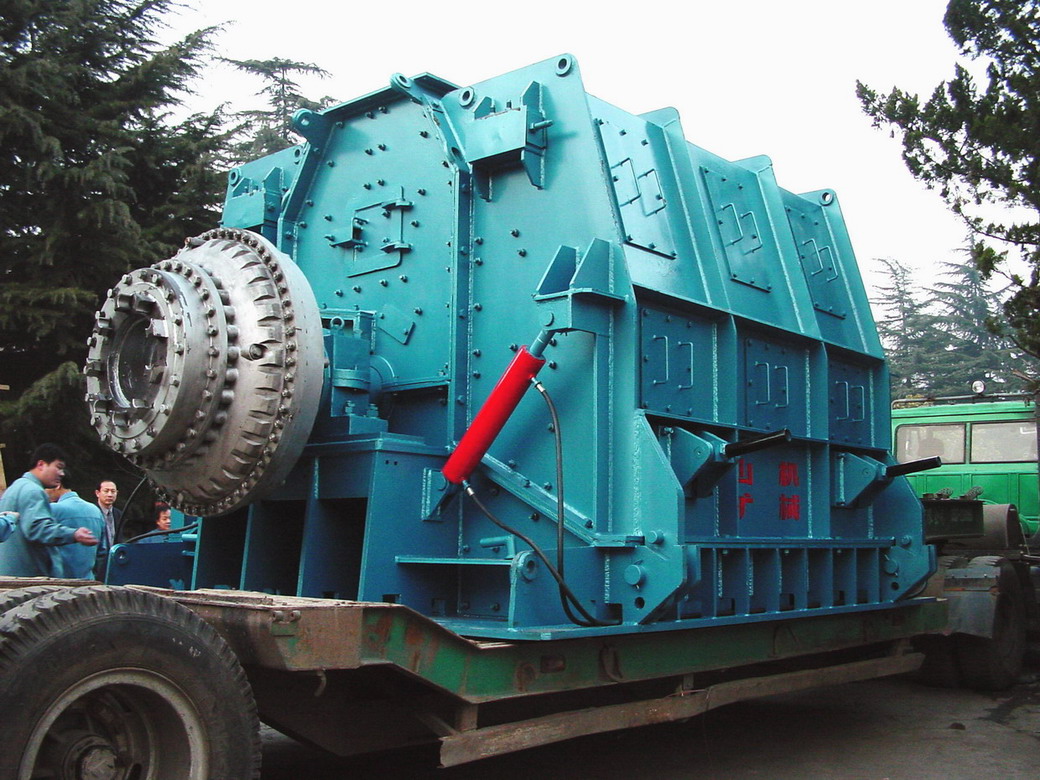

Reversible rotary hammer crusher 1800×2500 mm
The reversible impact hammer crusher is suitable for crushing medium-hard brittle materials, such as raw coal and other brittle materials, etc. The inlet particle size is 80mm and the outlet is 8mm, of which <3mm accounts for 90%. The incoming and outgoing particles can be adjusted according to the user's conditions and requirements, and the equipment itself has this function. This machine is the best choice for circulating fluidized bed boilers, coke plants and steel mills.
The reversible impact hammer crusher is mainly composed of crusher body, electric motor, hydraulic coupling, hydraulic station, shock absorption system, etc. In the structure, large rotor, short pin shaft, combination hammer head, upper and lower synchronous adjustment device, and wear-resistant toothed plate are added at the entrance of the housing, which has the advantages of strong impact, convenient operation and maintenance, and long service life of vulnerable parts.
1.This machine is suitable for crushing medium-hard brittle materials such as coal and other brittle materials.
2. Rotor diameter：1800（mm）.
3. Rotor length：2500（mm）
4.Raw material particle size：≤80（mm）
5.Finishing particle size：≤8~≤3（mm）
6.Capacity：500～550（t/h）
7.Power：900～1000KW
