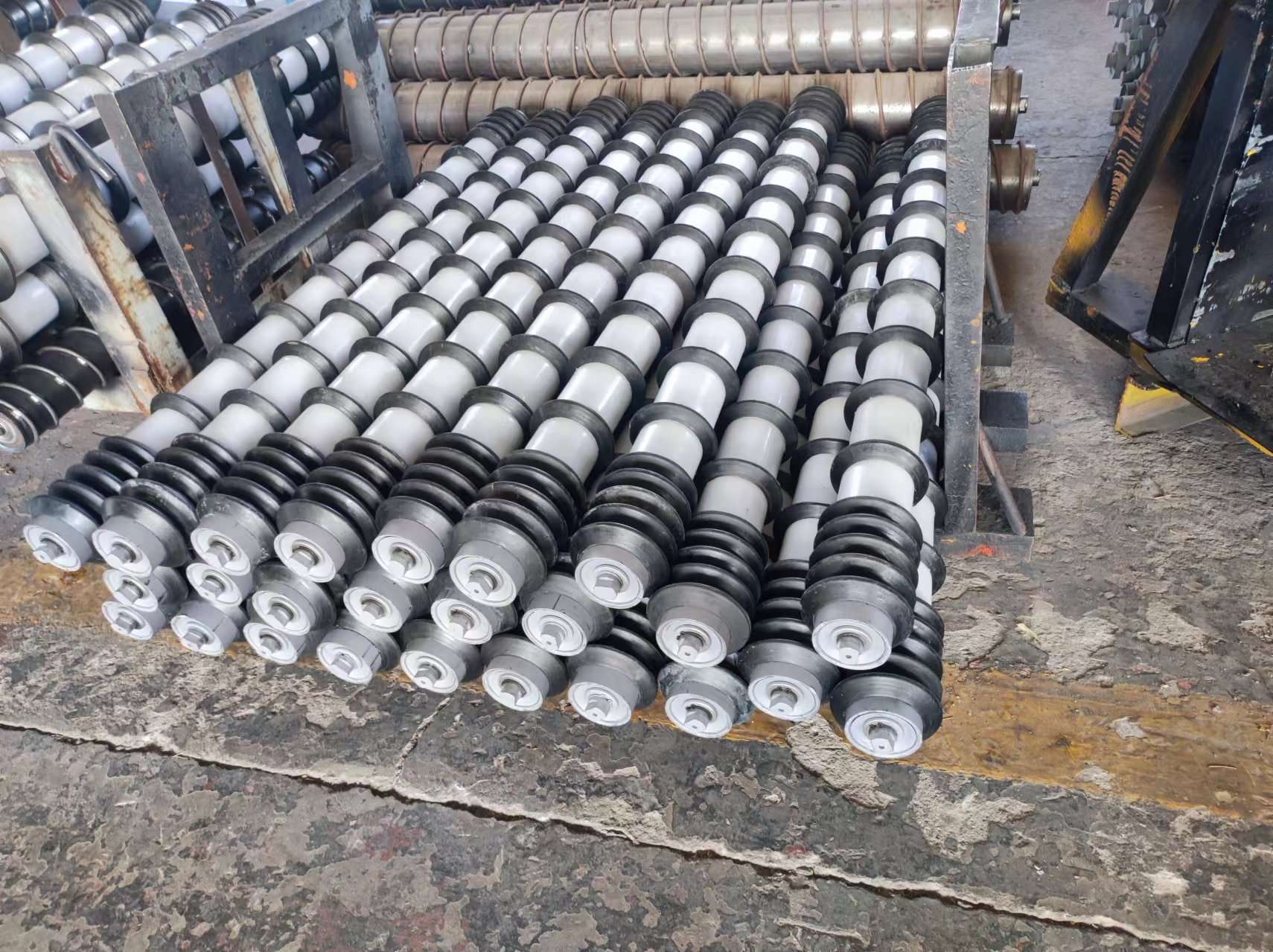

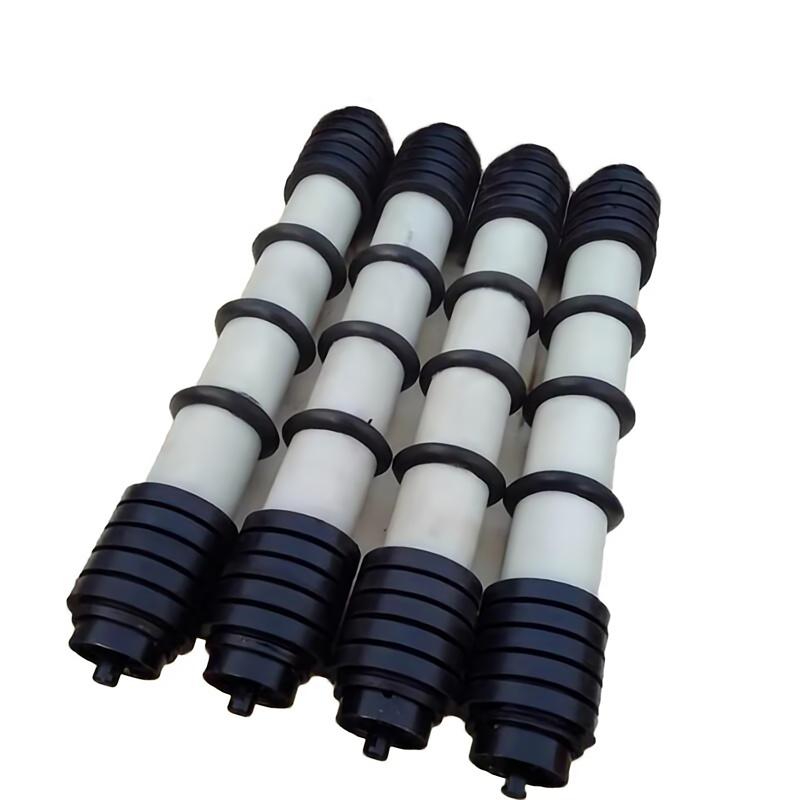

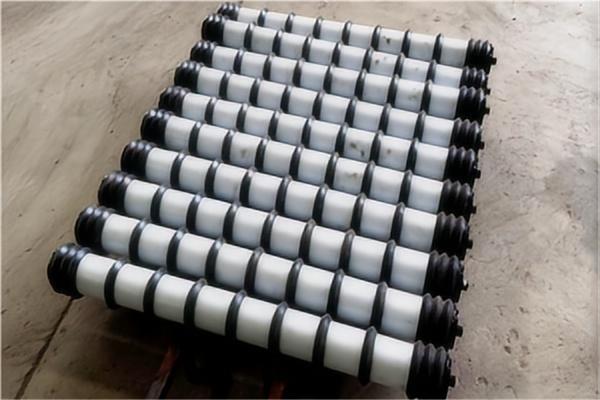

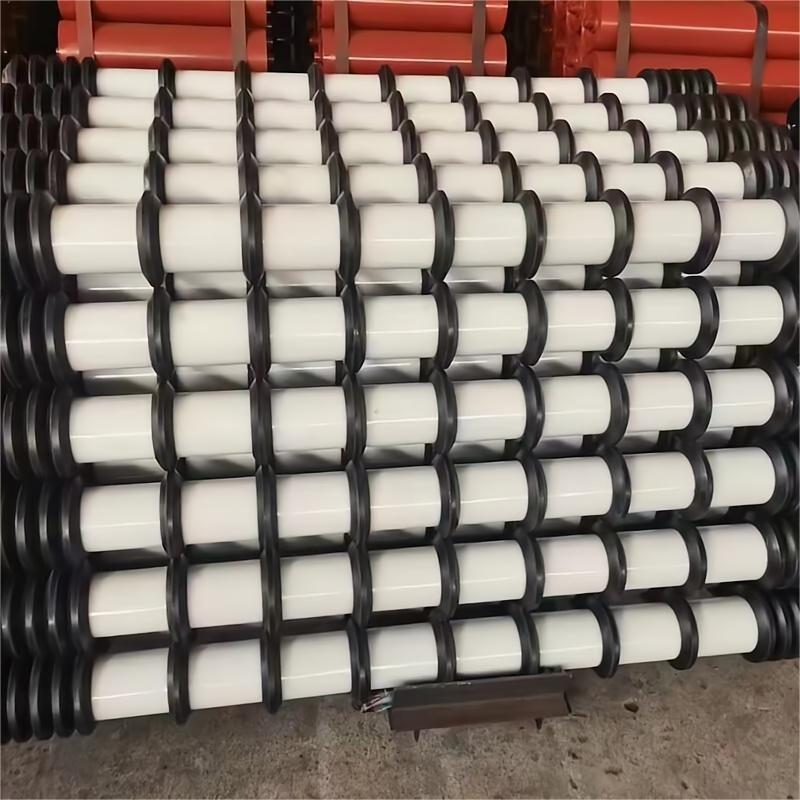

Comb roller

The comb roller has the following advantages:

1. Strong load-bearing capacity: It can withstand large tension of the conveyor belt, ensuring the stable operation of the conveyor belt.

2. Smooth Operation: Precision processing technology and good bearing performance can reduce the vibration and noise of the roller during operation.

3. Long service life: High quality material and reasonable structural design can extend the service life of the comb roller.

4. Convenient Maintenance: The structure design is easy to remove for user service and maintenance.

Contact Now E-Mail Telephone

Product Details

The comb roller has a hard rubber ring, which is excellent in preventing the conveyor belt from deflecting and cleaning. It is specially used for transporting sticky materials. The comb roller is used in mining, wharf, coal industry, power plant, coke industry, export trade and other fields, among others. The design features of this roller make it excellent in preventing conveyor belt deflection and cleaning, especially when dealing with sticky materials, the hard rubber ring can effectively reduce the deflection of the conveyor belt, keeping the conveyor clean, and avoid the operation problems caused by material sticking. In addition, the comb roller is also designed with durability and adaptability in mind, allowing it to operate stably for a long time under various operating conditions, reducing the frequency of maintenance and replacement, thereby improving production efficiency and reducing operating costs.

NO.	Number	Name	Weight	Specifications
1	GS2105	Comb roller	5.6	￠108×465-204
2	GS2111	Comb roller	10.08	￠108×950-204
3	GS3207	Comb roller	9.4	￠133×600-205
4	GS3208	Comb roller	10.71	￠133×700-205
5	GS3210	Comb roller	11.93	￠133×800-205
6	JKIIGS3211	Comb roller	13.07	￠133×950-205
7	JKIIGS3212	Comb roller	16.48	￠133×1150-205
8	JKIIGS3215	Comb roller	25.00	￠133×1800-205
9	JKIIGS3216	Comb roller	27.56	￠133×2000-205
10	JKIIGS3311	Comb roller	13.43	￠133×950-305
11	JKIIGS3312	Comb roller	14.71	￠133×1150-305
12	JKIIGS3315	Comb roller	25.35	￠133×1800-305
13	JKIIGS3316	Comb roller	27.92	￠133×2000-305
14	GS4208	Comb roller	12.74	￠159×700-205
15	GS4213	Comb roller	20.89	￠159×1400-205
16	GS4308	Comb roller	13.11	￠159×700-305
17	GS4310	Comb roller	14.7	￠159×800-305
18	GS4313	Comb roller	23.74	￠159×1400-305
19	GS4314	Comb roller	27	￠159×1600-305
20	GS4410	Comb roller	16.58	￠159×800-306
21	JKIIGS4411	Comb roller	18.17	￠159×900-306
22	JKIIGS4412	Comb roller	19.70	￠159×1000-306
23	JKIIGS4413	Comb roller	26.76	￠159×1400-306
24	JKIIGS4414	Comb roller	30.24	￠159×1600-306
25	JKIIGS4415	Comb roller	33.75	￠159×1800-306
26	JKIIGS4416	Comb roller	37.18	￠159×2000-306
27	JKIIGS4417	Comb roller	40.19	￠159×2200-306
28	JKIIGS4418	Comb roller	45.16	￠159×2500-306
29	JKIIGS4511	Comb roller	20.63	￠159×900-307
30	JKIIGS4512	Comb roller	22.33	￠159×1000-307
31	JKIIGS4513	Comb roller	24.04	￠159×1100-307
32	JKIIGS4514	Comb roller	26.83	￠159×1600-307
33	JKIIGS4515	Comb roller	38.36	￠159×1800-307
34	JKIIGS4516	Comb roller	42.01	￠159×2000-307
35	JKIIGS4517	Comb roller	45.23	￠159×2200-307
36	JKIIGS4518	Comb roller	50.79	￠159×2500-307
37	JKIIGS4611	Comb roller	25.11	￠159×900-308
38	JKIIGS4612	Comb roller	27.21	￠159×1000-308
39	JKIIGS4613	Comb roller	29.36	￠159×1100-308
40	JKIIGS4614	Comb roller	32.81	￠159×1600-308
41	JKIIGS4615	Comb roller	46.40	￠159×1800-308
42	JKIIGS4616	Comb roller	50.97	￠159×2000-308
43	JKIIGS4617	Comb roller	55.19	￠159×2200-308
44	JKIIGS4618	Comb roller	62.03	￠159×2500-308
45	JKIIGS5613	Comb roller	34.35	￠194×1100-308
46	JKIIGS5614	Comb roller	38.31	￠194×1250-308
47	JKIIGS5617	Comb roller	64.49	￠194×2200-308
48	JKIIGS5618	Comb roller	72.38	￠194×2500-308
