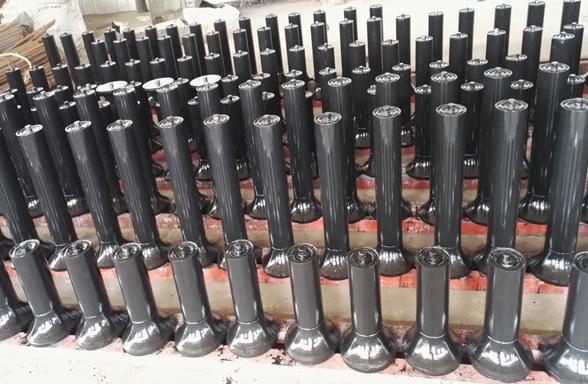

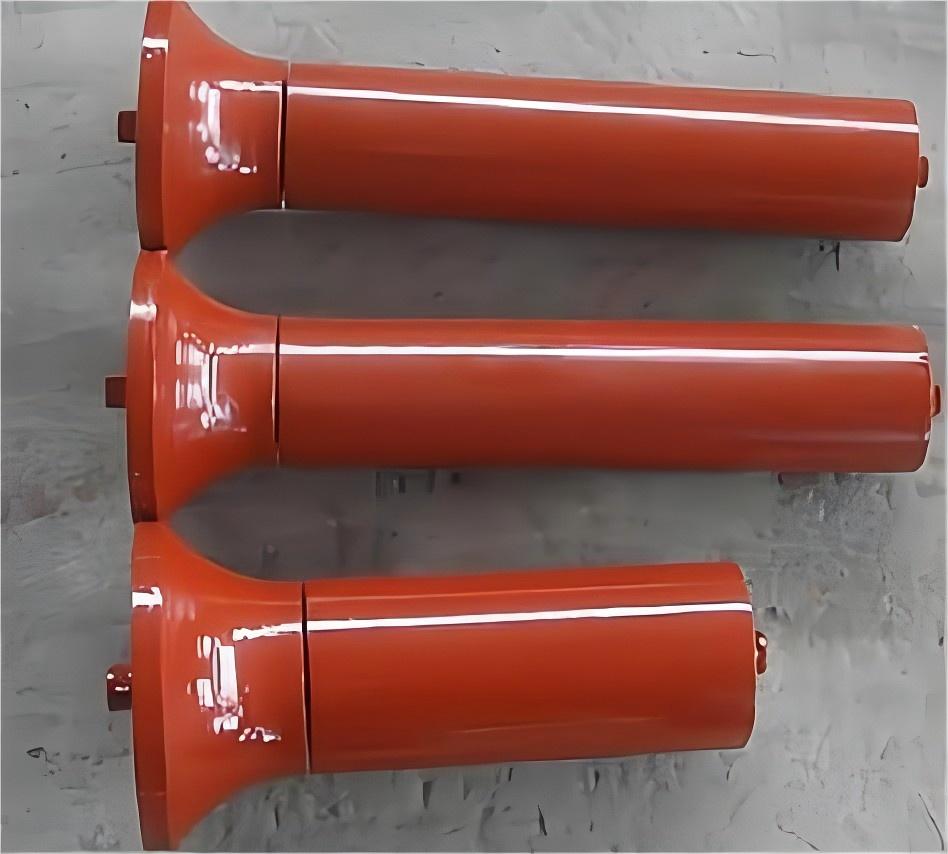

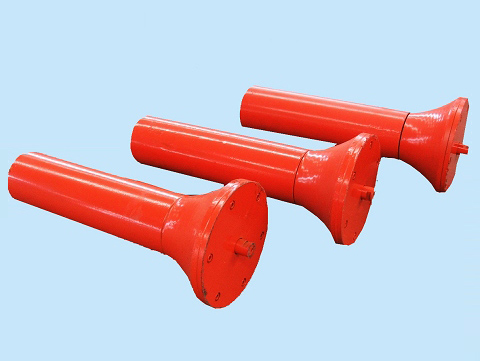

Friction roller
The advantages of a friction roller include:
1. Superior self-lubrication does not require additional lubricating oil, reducing maintenance requirements and operating costs.
2. Reducing the friction between the conveyor belt and the friction roller, which is very important to protect the conveyor belt and extend its service life.
3. The structure is simple, convenient to use, and the outer size is the same as ordinary rollers, which means it can be easily integrated into the existing system without any changes to the roller support or other components, making installation and use easier .
Friction roller is an important part of belt conveyor, which is mainly divided into friction lifting roller and lowering core roller. The function of these rollers is to support the conveyor belt and the weight of the material on the conveyor belt. With their flexible and reliable operation, they reduce the friction between the conveyor belt and the friction roller, which plays a very important role in the life of the conveyor belt.
NO. |
Number |
Name |
Weight |
Specifications |
1 |
01C1111.1 |
Friction roller |
9.90 |
￠89*230-204 |
2 |
02C1111.1 |
Friction roller |
10.36 |
￠89*280-204 |
3 |
03C1111.1 |
Friction roller |
10.76 |
￠89*323-204 |
4 |
03C1122.1 |
Friction roller |
16.98 |
￠108*342-205 |
5 |
04C1123.1 |
Friction roller |
18.30 |
￠108*412-305 |
6 |
04C1133.1 |
Friction roller |
26.82 |
￠133*412-305 |
7 |
05C1123.1 |
Friction roller |
28.50 |
￠108*470-305 |
8 |
05C1133.1 |
Friction roller |
28.50 |
￠133*470-305 |
9 |
05C1134.1 |
Friction roller |
30.00 |
￠133*470-306 |
10 |
JKII04C1143.1 |
Friction roller |
27.80 |
￠159*412-305 |
11 |
05C1143.1 |
Friction roller |
29.10 |
￠159*470-305 |
13 |
01C1311.1 |
Friction roller |
21.43 |
￠89*690-204 |
15 |
03C1312.1 |
Friction roller |
24.19 |
￠89*990-205 |
16 |
03C1122.1 |
Friction roller |
16.98 |
￠108*342-205 |
18 |
01C2811.1 |
Friction roller |
11.00 |
￠89*323-204 |
19 |
02C2811.1 |
Friction roller |
11.68 |
￠89*398-204 |
20 |
03C2811.1 |
Friction roller |
12.34 |
￠89*473-204 |
21 |
03C2822.1 |
Friction roller |
18.83 |
￠108*488-205 |
22 |
04C2823.1 |
Friction roller |
20.54 |
￠108*590-305 |
23 |
04C2833.1 |
Friction roller |
29.10 |
￠133*590-305 |
24 |
05C2823.1 |
Friction roller |
30.60 |
￠108*690-305 |
25 |
05C2833.1 |
Friction roller |
30.60 |
￠133*690-305 |
26 |
05C2834.1 |
Friction roller |
34.00 |
￠133*690-306 |
27 |
05C2843.1 |
Friction roller |
34.00 |
￠159*690-305 |
28 |
06C2833.1 |
Friction roller |
33.40 |
￠133*790-305 |
29 |
06C2834.1 |
Friction roller |
36.00 |
￠133*790-305 |
30 |
06C2844.1 |
Friction roller |
38.00 |
￠159*790-306 |
31 |
JKII04C1333.1 |
Friction roller |
58.63 |
￠133*1220-305 |
32 |
JKII04C2843.1 |
Friction roller |
31.60 |
￠159*590-305 |
33 |
06C1134.2 |
Friction roller |
30.00 |
￠133*545-306 |
34 |
06C1133.1SG |
Friction roller |
30.00 |
￠133*545-305 |
35 |
06C1144.1 |
Friction roller |
36.00 |
￠159*545-306 |
36 |
06C1144JSW.1 |
Friction roller |
36.17 |
￠159*547-306 |
37 |
JKII05C1144.1 |
Friction roller |
34.03 |
￠159*488-306 |
38 |
JKII05C2844.1 |
Friction roller |
38.70 |
￠159*693-306 |
39 |
JKII06C1123.1 |
Friction roller |
19.82 |
￠108*533-305 |
40 |
JKII06C1133.1 |
Friction roller |
29.02 |
￠133*540-305 |
41 |
JKII06C1144.4 |
Friction roller |
35.37 |
￠159*547-306 |
42 |
JKII06C2823.1 |
Friction roller |
22.95 |
￠108*790-305 |
43 |
JKII06C2833.1 |
Friction roller |
32.23 |
￠133*790-305 |
44 |
JKII06C2844.1 |
Friction roller |
40.97 |
￠159*793-306 |
45 |
JKII07C1133.1 |
Friction roller |
30.23 |
￠133*610-305 |
46 |
JKⅡ07C1144.1 |
Friction roller |
37.04 |
￠159×620-306 |
47 |
JKII07C1145.1 |
Friction roller |
40.166 |
￠159*625-307 |
48 |
JKII07C1146.1 |
Friction roller |
42.468 |
￠159*630-308 |
49 |
JKII07C2833.1 |
Friction roller |
34.888 |
￠133*890-305 |
50 |
JKⅡ07C2844.1 |
Friction roller |
43.42 |
￠159×900-306 |
51 |
JKII07C2845.1 |
Friction roller |
47.11 |
￠159*905-307 |
52 |
JKII07C2846.1 |
Friction roller |
50.062 |
￠159*910-308 |
53 |
JKII08C1133.1 |
Friction roller |
31.258 |
￠133*670-305 |
54 |
JKII08C1144.1 |
Friction roller |
38.406 |
￠159*678-306 |
55 |
JKII08C1145.1 |
Friction roller |
41.61 |
￠159*683-307 |
56 |
JKⅡ08C1146.1 |
Friction roller |
44.03 |
￠159×688-308 |
57 |
JKII08C2833.1 |
Friction roller |
36.59 |
￠133*990-305 |
58 |
JKII08C2844.1 |
Friction roller |
45.57 |
￠159*993-306 |
59 |
JKII08C2845.1 |
Friction roller |
49.41 |
￠159*998-307 |
60 |
JKII08C2846.1 |
Friction roller |
52.57 |
￠159*1003-308 |
61 |
JKII09C1146.1 |
Friction roller |
45.72 |
￠159*750-308 |
62 |
JKII09C2846.1 |
Friction roller |
55.29 |
￠159*1103-308 |
