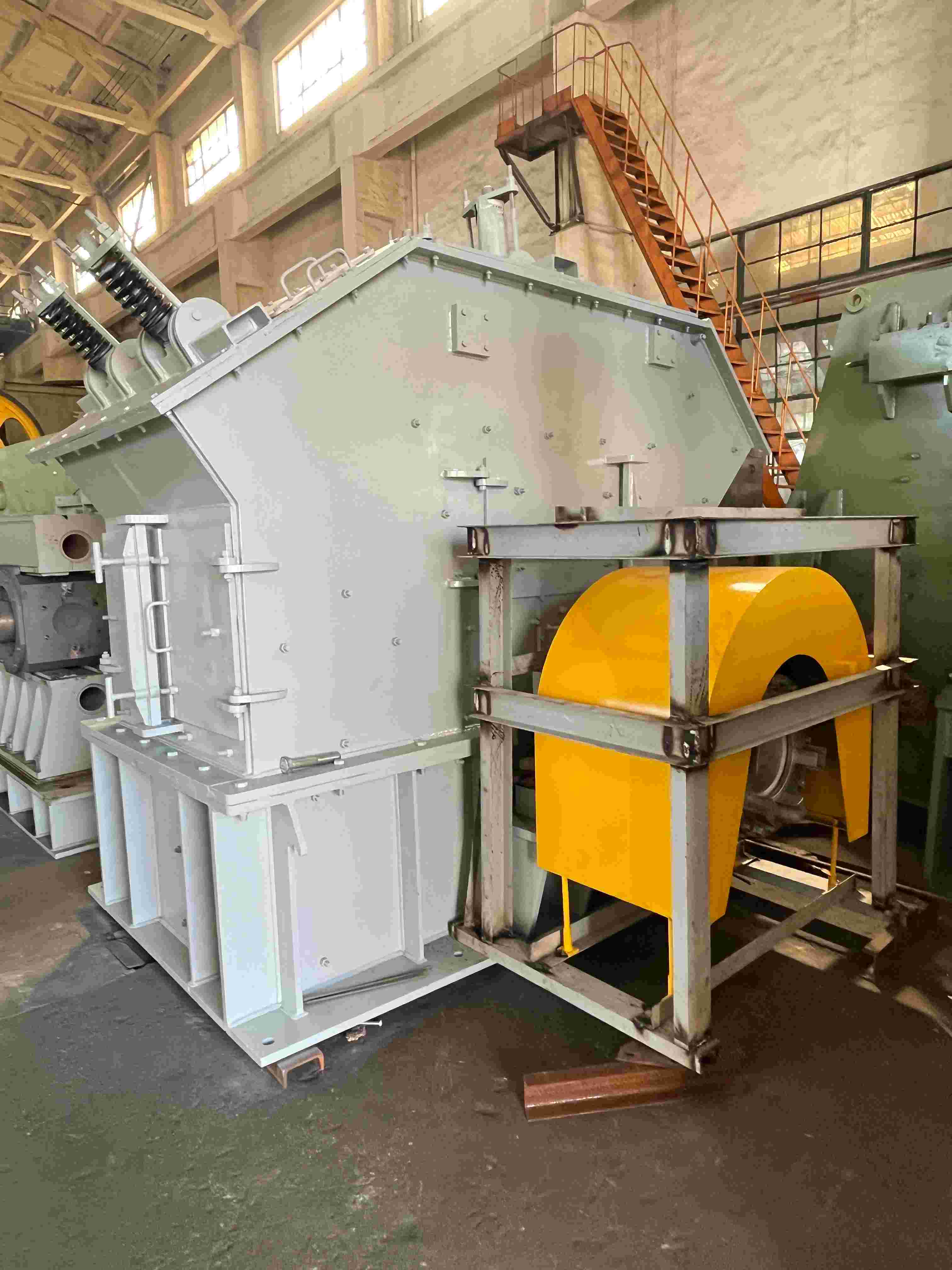

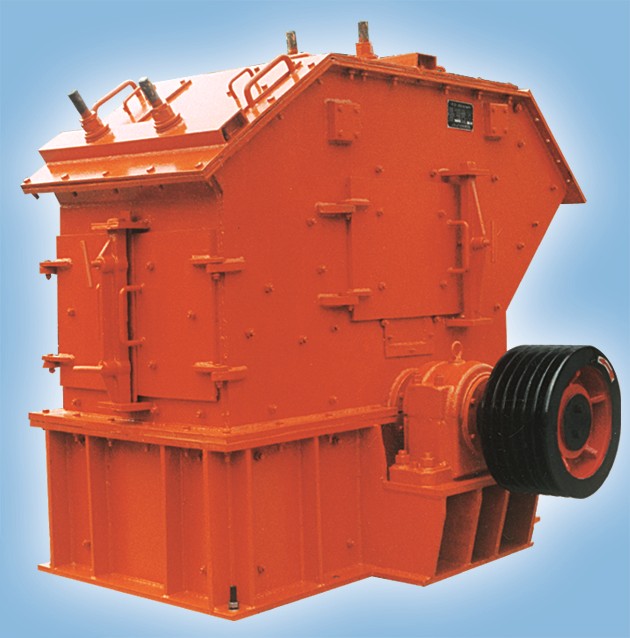

Strength of Impact Crusher 1250×1400 mm

Durable Impact Crusher is a new type of crusher that has been optimized by introducing the latest technology from home and abroad. It is suitable for crushing materials with compressive strength <350MPa. It is widely used for crushing rocks and construction waste (such as brick blocks, concrete blocks, etc.) in projects such as roads, railways and high-strength dams. This machine has simple structure, large crushing ratio, low energy consumption, high productivity, materials are crushed into cubic spherical particles, with very few flakes and stripes.

Contact Now E-Mail Telephone
Product Details

The crushing coefficient is large, about 40, up to 150. The size of the loaded material into the counterattack crusher is up to 2 m3. The particle size of the product is less than 25mm, which can be directly put into the mill, and the particle size of the fine crushing product of the counter-attack crusher is less than 3mm. Choosing a counter-attack crusher can reduce the number of broken segments.

1.Model:PF-1214ii

2.Rotor length X length:f1250×1400(mm)

3.Max. feed size:350(mm)

4.Feed particle size:400×1430(mm)

5.Finish particle size:≤20(mm)

6.Capacity:130~180(t/h)

7.Power:132~160KW

8.Overall size(LXWXH): 4000×2890×2700mm

9.equipment weight: excluding engine: 18600 kg

Strength of Impact Crusher 1250×1400mm
