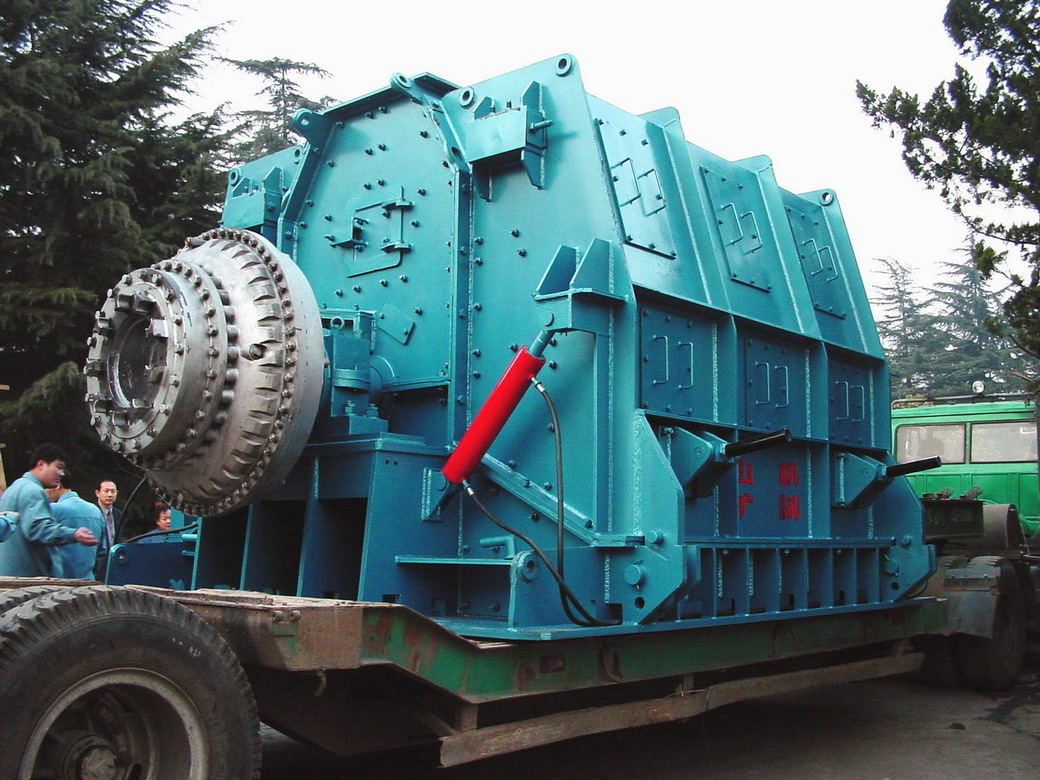

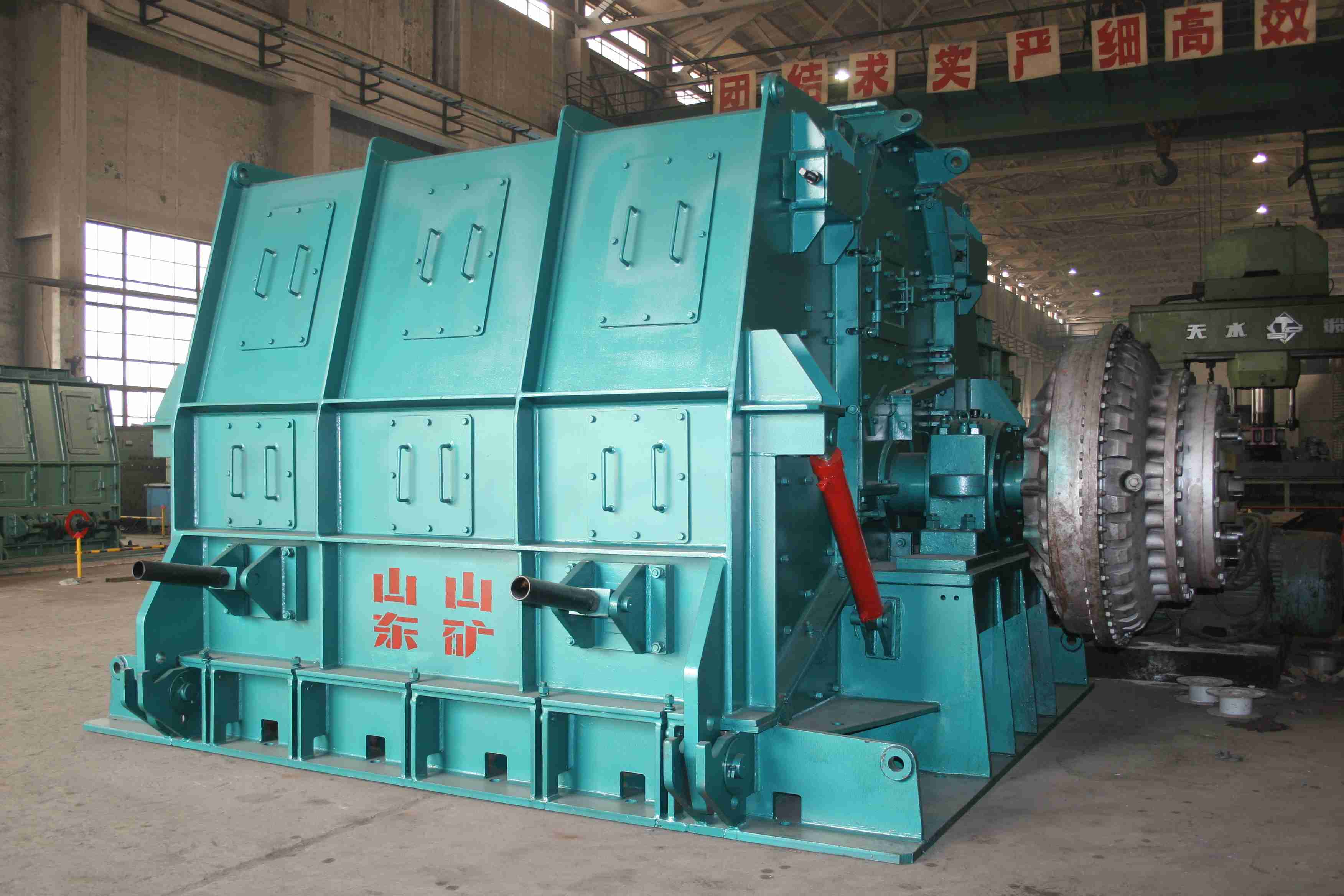

Reversible Rotary Hammer Crusher

The reversible impact hammer crusher is suitable for crushing medium-hard brittle materials such as coal and other brittle materials. The feed grit is 80mm and the discharge grit is 8mm, of which <3mm accounts for 93%. The incoming and outgoing particles can be adjusted according to the user's conditions and requirements. It is the best choice for coal crushing for circulating fluidized bed boiler of power plant, coking plant, iron and steel plant.

Contact Now E-Mail Telephone

Product Details

Product detail

PCFK reversible hammer crusher uses a high-speed rotating hammer head to crush the coal, which enters the crusher and rushes to the impact plate, which can achieve crushing through the process of repeated collisions. The impact plate adopts a double-arc hanging body, and the material is discharged from the middle end of the two impact plate bodies after crushing. In general, the machine will not lock up under the condition that there is no overload. This machine absorbs the most advanced structural designs from different countries, and the rotor shaft is equipped with a manual locking device.

Model	Rotor diameter (mm)	Rotor length(mm）	Material grain size (mm）	Production capacity（t/h）	Rotor speed（r/min）	Capacity（kW）
PCFK-0805	800	500	≤3	15-50	1244	75
PCFK-0808	800	800	≤3	50-70	990	90
PCFK-1010	1000	1000	≤3	≥80	980	110～132
PCFK-1210	1200	1000	≤3	≥100	980	160～200
			≤8	≥80
PCFK-1212	1200	1200	≤3	≥120	980	185～250
			≤8	≥100
PCFK-1214	1200	1400	≤3	≥140	980	200～280
			≤8	≥110
PCFK-1216	1200	1600	≤3	≥160	980	250～315
			≤8	≥130
PCFK-1413	1400	1300	≤3	≥180	743/980	315～400
			≤8	≥150
PCFK-1416	1400	1600	≤3	≥220	743/980	355～500
			≤8	≥180
PCFK-1608	1600	800	≤3	≥120	743	210～280
			≤8	≥100
PCFK-1612	1600	1200	≤3	≥180	743	355～400
			≤8	≥150

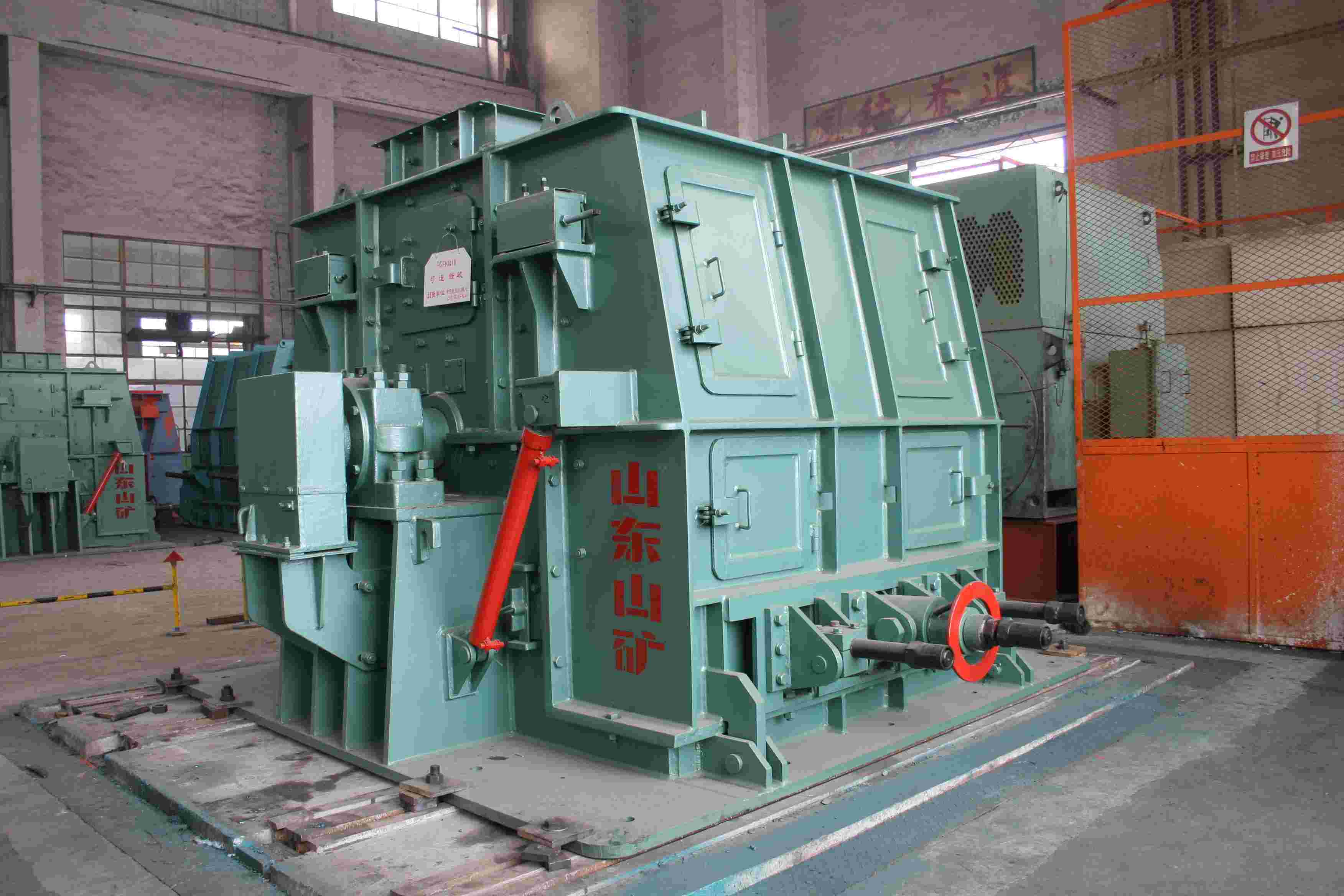

PCFK-1616	1600	1600	≤3	≥250	743	450～560
			≤8	≥220
PCFK-1618	1600	1800	≤3	≥300	743	560～710
			≤8	≥250
PCFK-1818	1800	1800	≤3	≥400	740	710～800
			≤8	≥380
PCFK-1820	1800	2000	≤3	≥450	740	800～900
			≤8	≥420
PCFK-1825	1800	2500	≤3	≥550	740	900～1000
			≤8	≥500
PCFK-1830	1800	3000	≤3	≥650	740	1000～1250
PCFK-2025	2000	2500	≤3	600	742	1120
