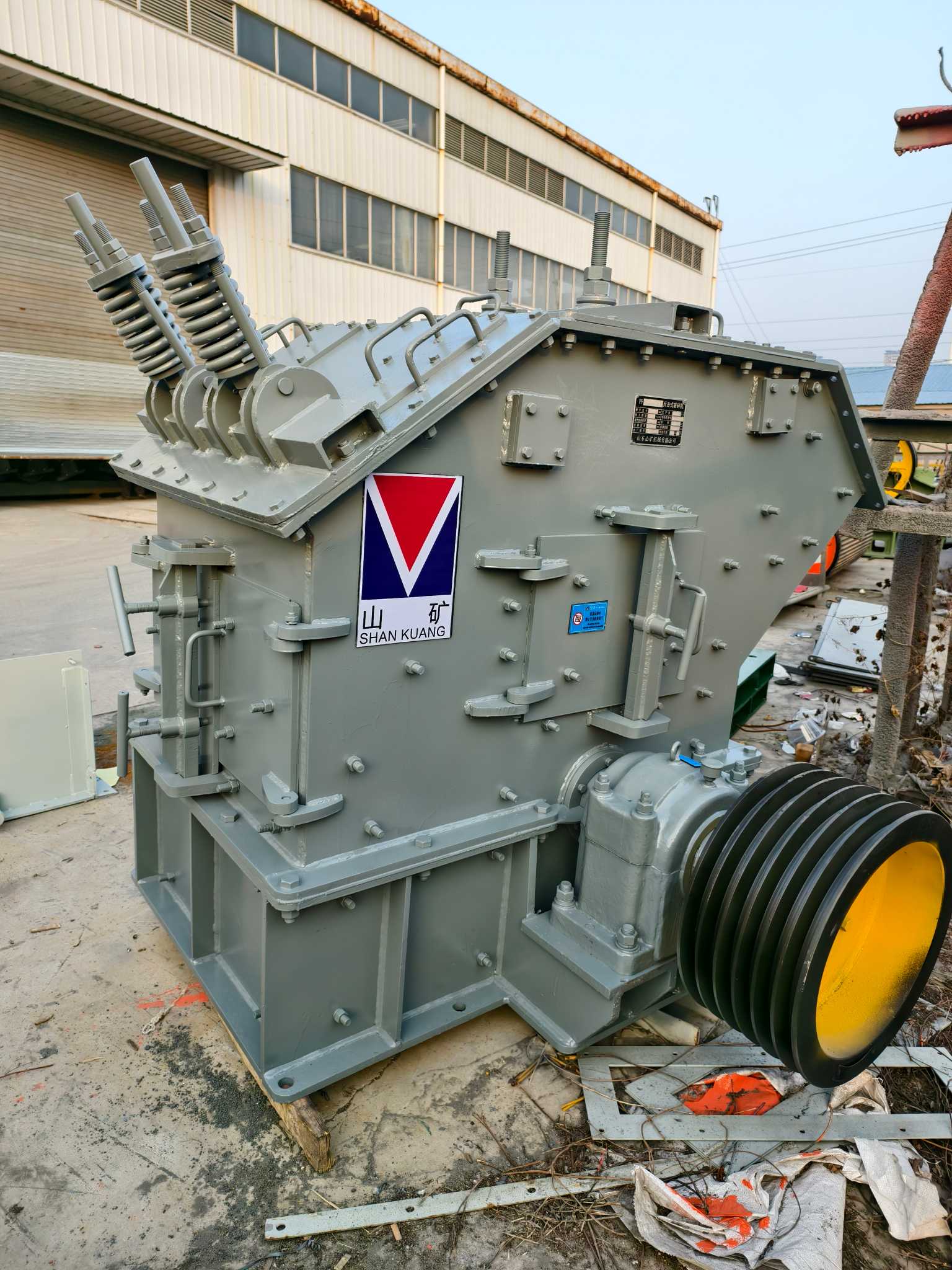

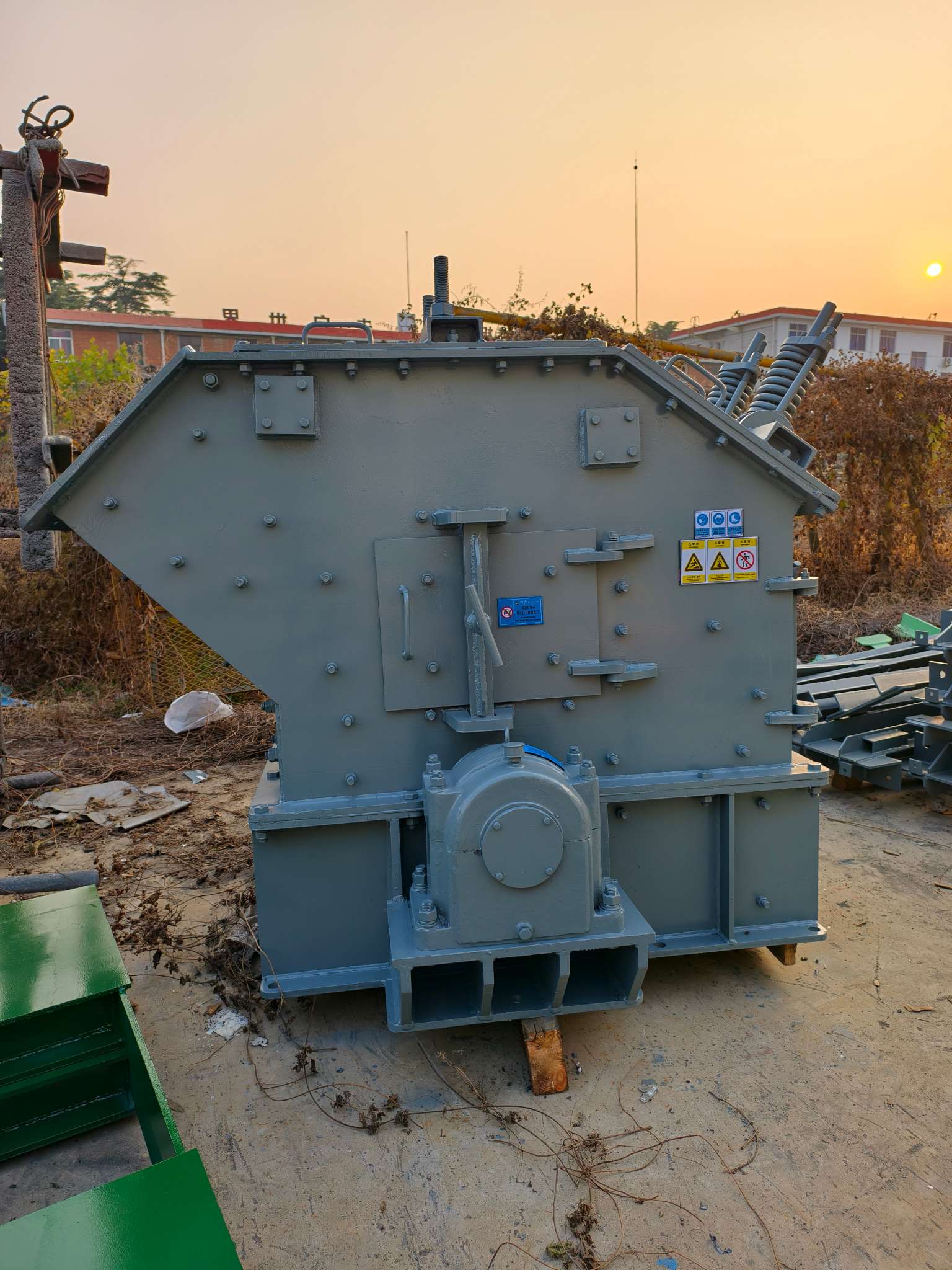

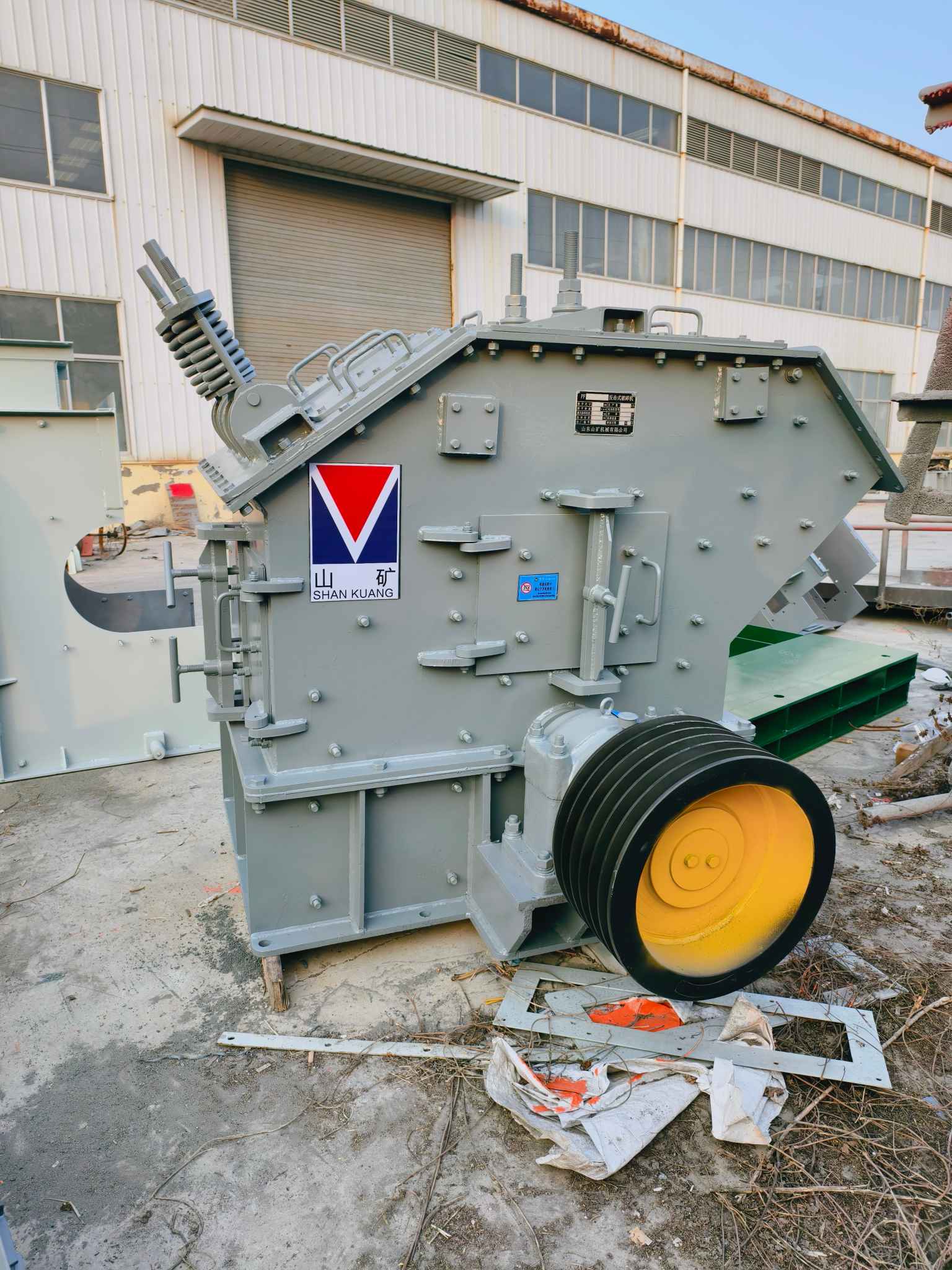

Strong Impact Crusher 750×700mm
Strong 750x700mm impact crusher with light weight, good crushing, easy to use and maintain, can be used for cement, building materials, refractory materials, coal and other industrial applications to finely crush a variety of low-hardness and brittle coke, coal and other materials , the moisture content in the crushed material is not more than one percent.
The powerful impact crusher is a new type of high-efficiency rock crushing equipment, a new generation of impact crusher developed based on the combination of the specific conditions of industrial and mining practice in the sand and gravel industry. Adopting the latest production technology, the unique structural design of the new generation of impact crusher, the finished product is cubic, without stress and cracks, the particle shape is quite good, powerful impact crusher crushing feed size up to 500mm, compressive strength up to 350MPa from a variety of large, medium and small materials (granite, limestone, concrete, etc.), which is characterized by small size, the finished product is cubic, simple structure, high crushing coefficient, low energy consumption, high production capacity, large product It is characterized by small size, cubic finished product, simple structure, large crushing ratio, low energy consumption, large production capacity, uniform product size and selective stone crushing effect. Impact crusher is widely used for crushing various ores in railway, highway, power, cement, chemical, construction and other industries. Its discharge size can be adjusted, and its crushing characteristics are varied.
Name |
Parameter |
|
Rotor length X（mm） |
Φ750×700 |
|
Max. feed size（mm） |
≤100 |
|
Final grain size（mm） |
≤3 |
|
Capacity（t/h） |
50 |
|
Engine |
Type |
Y250M-4 |
Power（KW） |
55 |
|
revolution（r/min） |
1480 |
|
Size(L*W*H)（mm） |
2400×1710×1620 |
|
Machine weight（Kg） （excluding engine） |
3642 |
|
