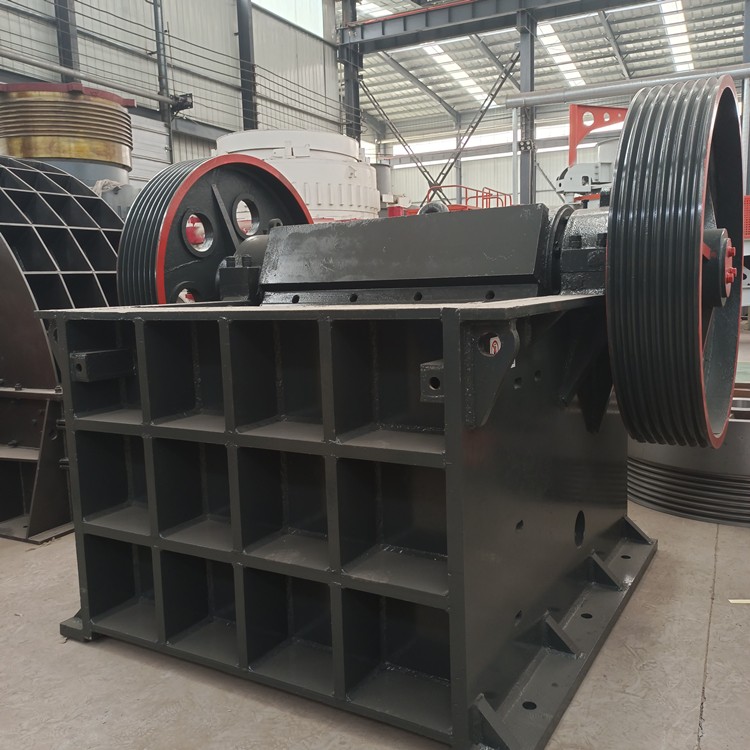

Fine jaw crusher 250×1200 mm
The fine crushing jaw crusher is suitable for ore and rock with a fine grain size of not more than 210mm, and the compressive strength of the fine crushed material is not more than 250Mpa. It has the advantages of simple structure, reliable performance, convenient operation and safe use. Widely used in building materials, metallurgy, chemical industry, mining, road construction and other industries.
Fine crushing jaw crusher is mainly used for fine work. The particle size of the raw material does not exceed 120 mm, and the compressive strength of the crushed material should not exceed 250 MPa. The operating principle of the small jaw crusher is based on the principle of "fixed volume", through the mathematical model of ore crushing, brought out the revised Gaussian curve, fixed jaw plate design into a "straight line-correct Gaussian curve", active jaw plate for a straight line, so as to achieve a smooth work, crushing ratio, high yield, low energy consumption, low noise, low operating costs. This kind of crusher is widely used in small and medium mines, building materials, road construction, silicate and chemical industries, especially in the processing of river pebbles, calcite, granite, quartz stone, concrete, dolomite, bluestone, iron ore, limestone, coal ganga, pebbles, basalt and other materials.
Name |
Parameter |
|
Rotor length X（mm） |
Φ250×1200 |
|
Max. feed size（mm） |
≤210 |
|
Change the size of the unloading gate（mm） |
15～50 |
|
Capacity（t/h） |
11～38 |
|
Engine |
Type |
Y280S—6 |
Power（KW） |
45 |
|
revolution（r/min） |
980 |
|
Size(L*W*H)（mm） |
1600×2220×1440 |
|
Machine weight（Kg） （excluding engine） |
8200 |
|
